Product Description

AC 220V, No Power Supply, No Breakout Board,  Easy to wire

Following items are included:

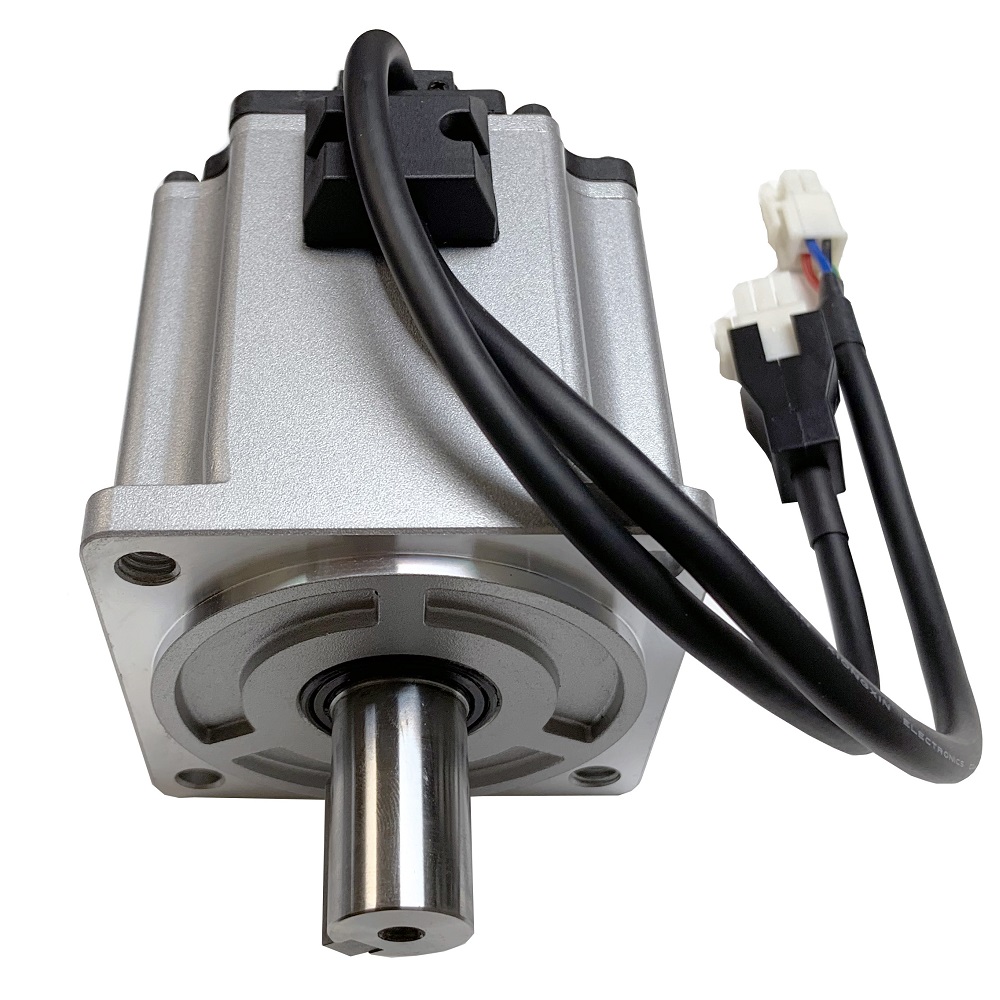

-- 1 Pc EtherCAT Servo Motors  750W

Model Number: 750W ELM0750LH80F-SS

Motor Specification:

Rated Voltage: 220VAC

Rated Power: 750W

Rated Torque: 2.4 (N.m)

Peak Torque: 8.36 (N.m)

Rated Speed: 3000 RPM

Peak Speed: 6500 RPM

Rated Current: 5.1Amp

Peak Current: 17.8 Amp

Torque Const: 0.465 (N.m/Amp)

Back EMP Const: 28.8 ( V/Krpm)

Resistance: 1.0 Ohm

Inertia(kg*m2*10-4): 1.56

Inductance: 5.8 mH

Poles: 10

Encoder Type: 23 Bit absolute

Protection Level: IP65

-- 1 Pc EtherCAT Servo Driver

Model Number: ELP-EC750Z (EL7-EC750Z)

If you would like to order the Servo Motor Control kit with cable, following cables are included.

You can choose either 5 Meter or 3 Meter length:

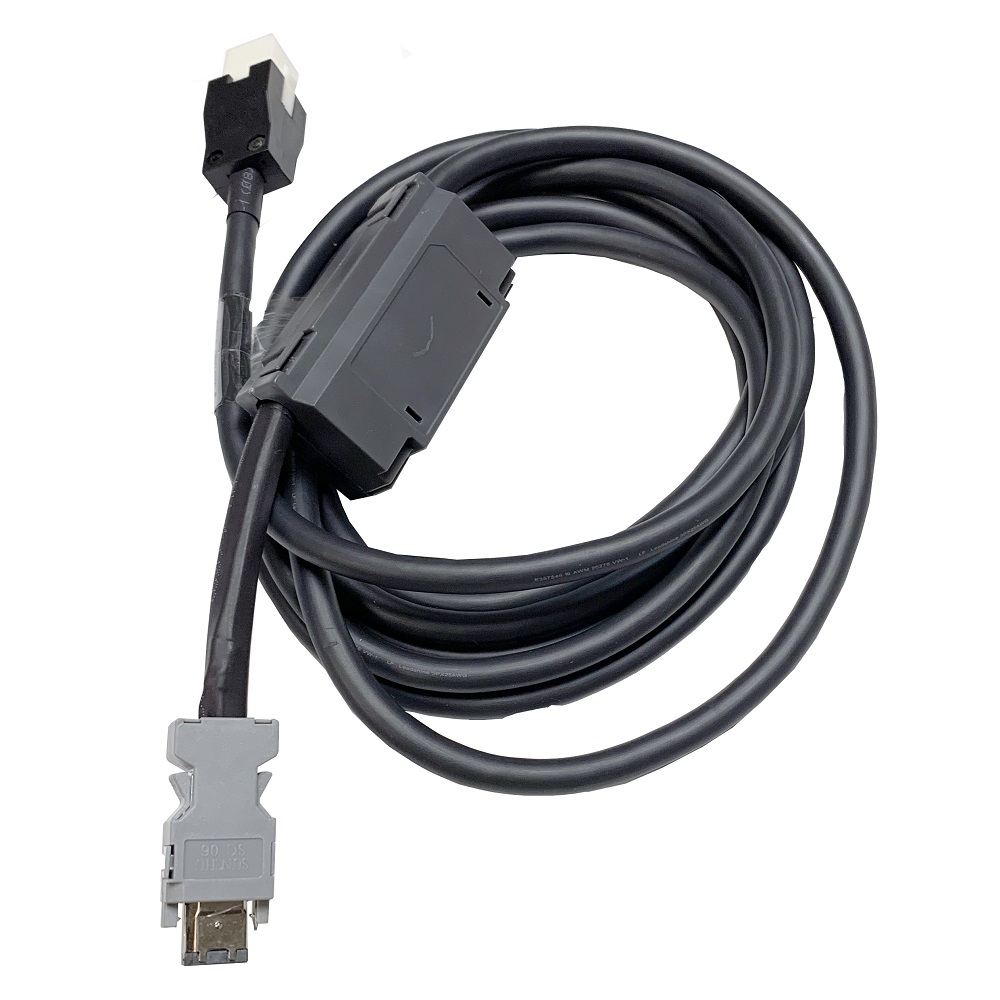

-- 1 Pc Cable-7BMA5M0-Z "5-Meter encoder cable with battery"

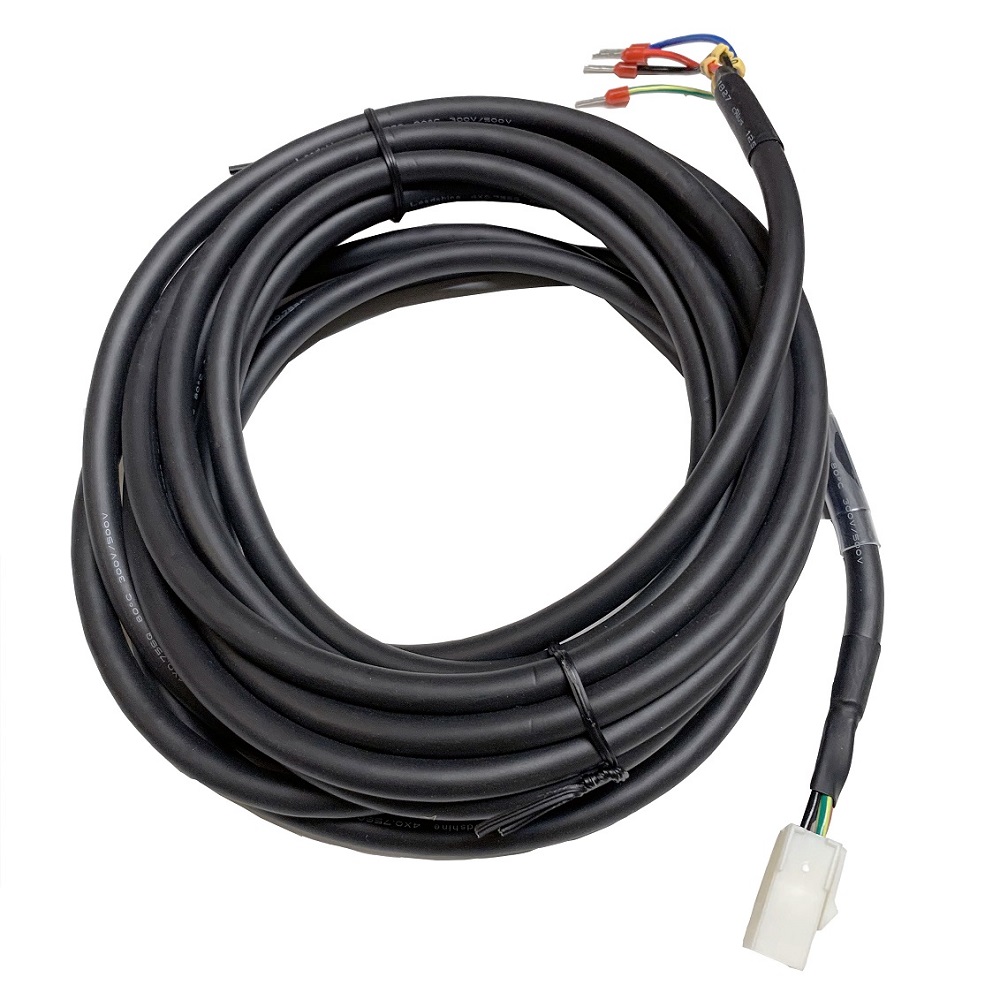

-- 1 Pc Cable-RZ5M0-S - 5-Meter power cable

Or

1 Pc Cable-7BMA3M0-Z "3-Meter encoder cable with battery" ,

1 Pc Cable-RZ3M0-S - 3-Meter power cable

If you need the Mach4 license, check the link:

Fully Licensed versions of Mach4, Email you the license.

Check the link to see Video

EtherCAT Video for Maho CNC Conversion from Tony (65)

EtherCAT Video (365)

*One Year Warranty*

Downloads:

EtherCAT 750W AC Servo Motor Drawing (326 downloads)

EtherCAT Servo Driver User Manual (1087 downloads)

EtherCAT Servo Motor Kit Wiring Diagram (752 downloads)

750W EtherCAT Servo Motor Kit Wiring Diagram (536 downloads)

XML File for EtherCAT Servo Driver (447 downloads)
