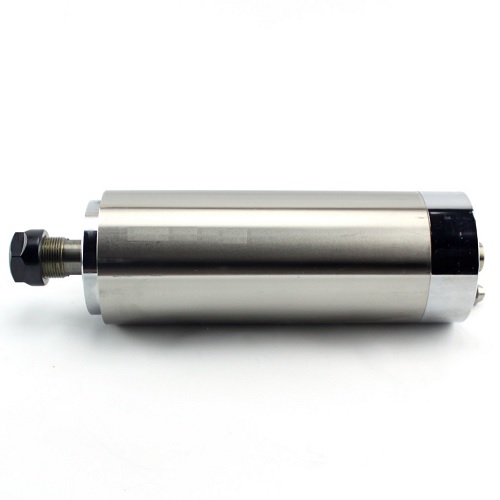

2200W 3HP Water Cooled CNC Milling Spindle, KL-2200 (Round)
Product in stock
This water cooled 2200 watt CNC spindle is powerful enough to get the job done. With an 8000-24000 RPM range, ER20 collet chuck, and runout of less than 0.005mm, the KL-2200 spindle is ideal for routing, and other similar applications
Price
$319.00
$279.00
You save: $40.00! (12.54%)
2200W 3HP Water Cooled CNC Milling Spindle, KL-2200 (Round)
Product Description
KL-2200 spindle with 4 Bearings
OD=80 mm
Length =215 mm
Voltage: 220V
Speed: 8000-24000 R/min ( run speed at 60% or less than 80% of rated Max spindle)
Power: 2200 W (3HP),
Frequency: 400 Hz

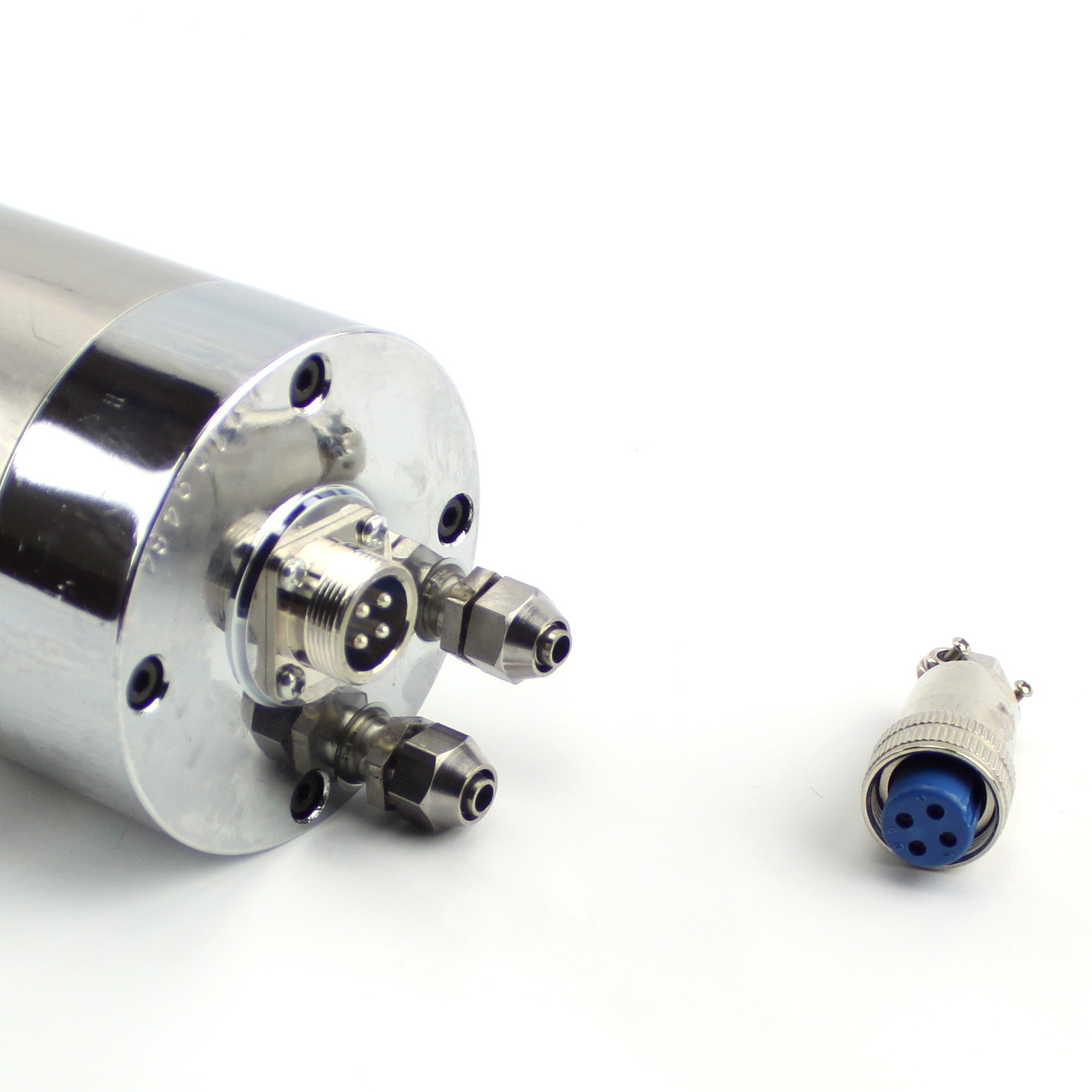

Water Cooling,

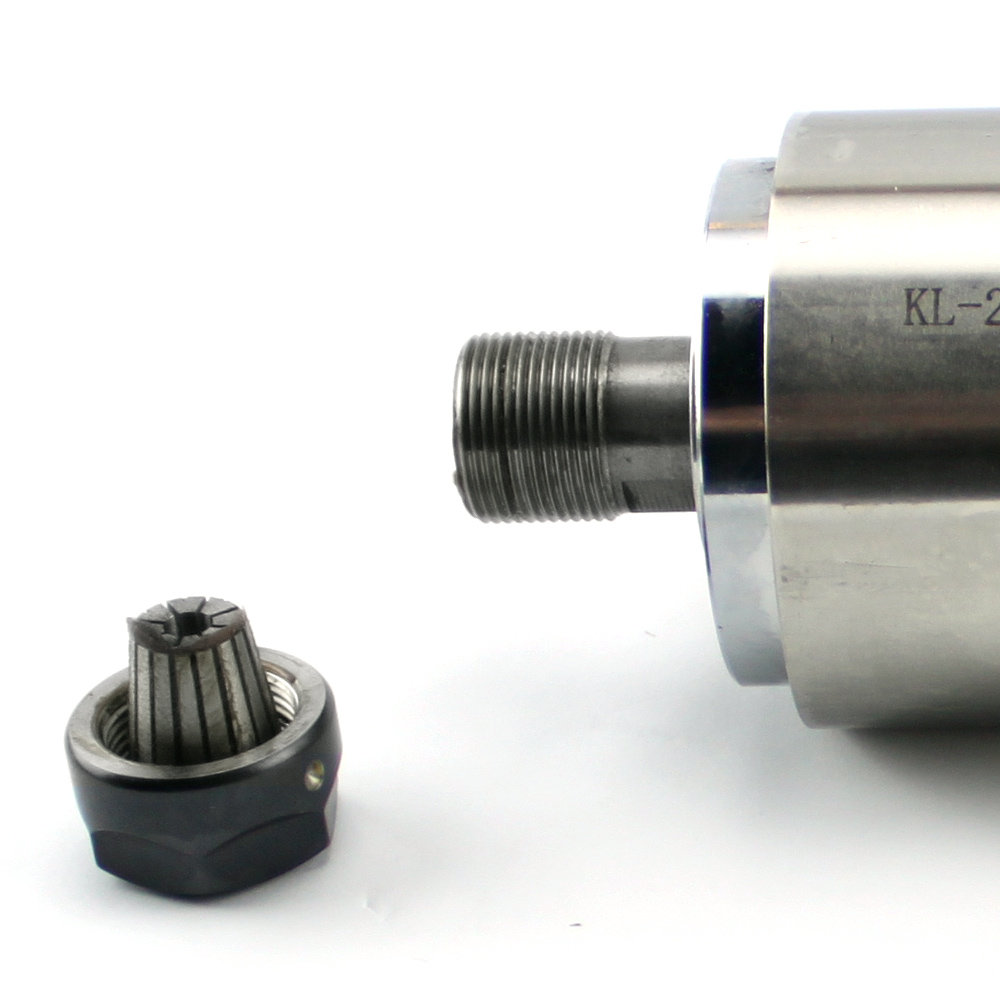

ER20 collet chuck. (But tool is not included: you can use 1/16", 3/32", 1/8", 3/16", 7/32", 1/4", 5/16", 11/32", 3/8", 13/32", 7/16", 1/2" )
Grease Lubrication,
Runout off: less than 0.005mm
Water cooling about 20-26 gal/hr
about 15 ibs
one year manufacture warranty
