B57 – Linear ATC Motion Control System for Stepper/Servo Motor

Product in stock

Price

from $900.00

Loading Updating cart...

B57 – Linear ATC Motion Control System for Stepper/Servo Motor

Product Description

The control systems can be widely applied to machinery, advertisement, woodworking, Jade carving, mold engraving machines, laser, flame, plasma cutting machines, woodworking lathe, dispensing machine and so on in the industry machine control field.

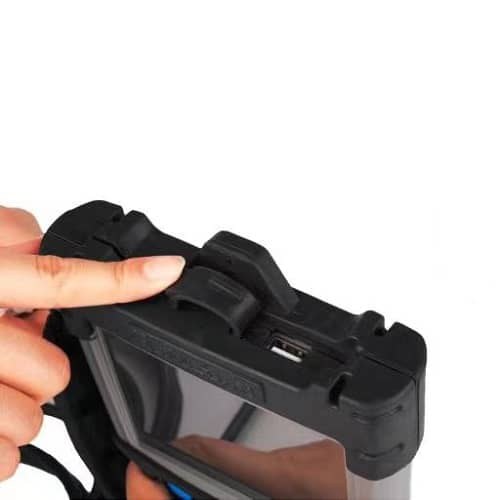

DSP is the core control system, High-speed processing operation which the microcontroller and PLC systems can’t compare with. Embedded structure, high degree of integration, Strong stability, easy to installation and operation; support U disk, removable storage card reader, with USB interface, high speed transfer, plug and play. Fully offline work.

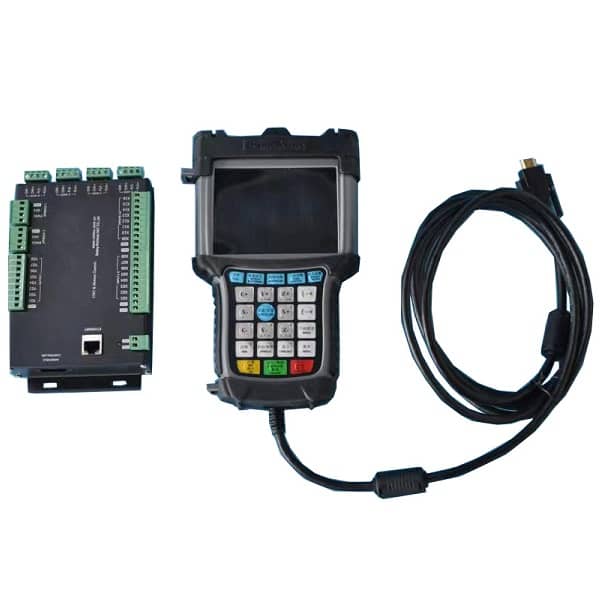

The control system contains the following parts:

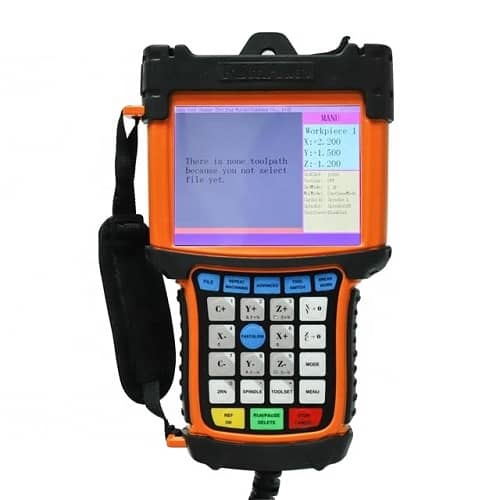

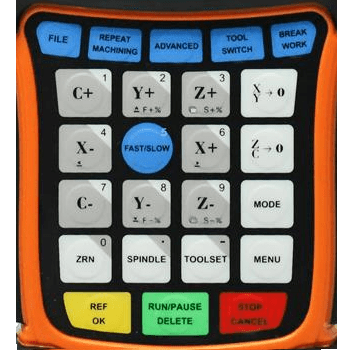

  1. 1pc Handheld controller

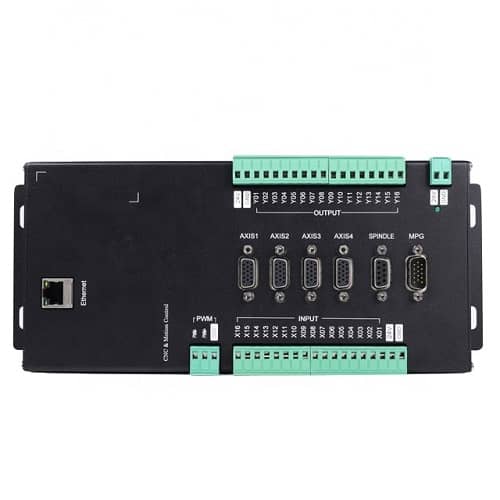

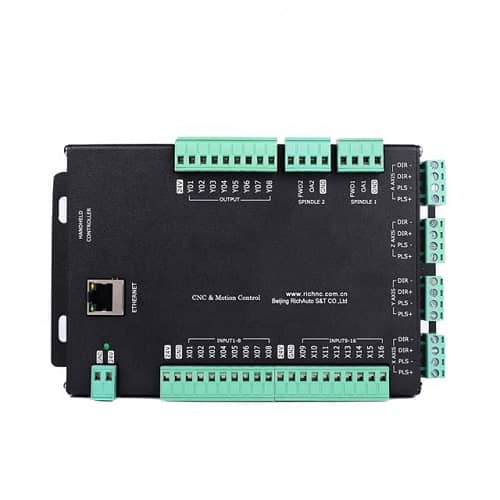

  2. 1pc I/O board
  3. 1pc 19-pin HDMI data transmission cable
  4. 8GB USB flash drive
Features:
  • 5 inch color screen, support tool path simulation and G code display during processing
  • Supports 8 tools, tool track location can be customized
  • New technology if tool change and tool setting method, greatly improve the efficiency of tool setting process
  • Identify tool change T instruction, support multiple tool changing
  • Detection mechanism such as tool holding, tool magazine in place, hard limit etc. Ensure security of the operation
  • Support tool change spindles
  • System parameters can be backed up to external storage space in file format
  • Extensive application of mechanical engraving filed, such as advertising, woodworking, and stone carving machine

Model No.

B57

CPU

DSP

Display

5 color screen

BuilD-in Memory

1G

No. ofLinkages axis

3 axes

Input accuracy

0.001mm

Power failure Protection

Support

BreakpointRestore

Support

Controllable I/O

16I/O to 32I/O

Power Supply

DC 24V/3A

Running Speed

Real time adjustable

Drive System

Stepper/Servo

Signal type

Differential

Data Transmission

U Disk, Network

Max. Pulse frequency

10MHz

Spindle Control

Multiple step speed, Analog

Hand Wheel operation

Optional

Interpolation methods

Line, arc,Spline curve

Tool change instruction

T

Automatic tool setting

Mobile toolset/fixCalibration

File reading

Nc/u00/plt/DXF/mmg

Code Support

Standard G codes, M codes and otherCustomize codes

Languages

 English, other languages can be customized

Standard Configuration

Handheld controller 1 PC, 19-pin HDMI cable 1 PC, I/O board 1 PC

Wiring Diagram:

B57-Stepper Board Wiring Diagram (29 downloads)

B57-Servo Board Wiring Diagram (33 downloads)

User Manual:

B57 Motion Control System User Manual (44 downloads)
