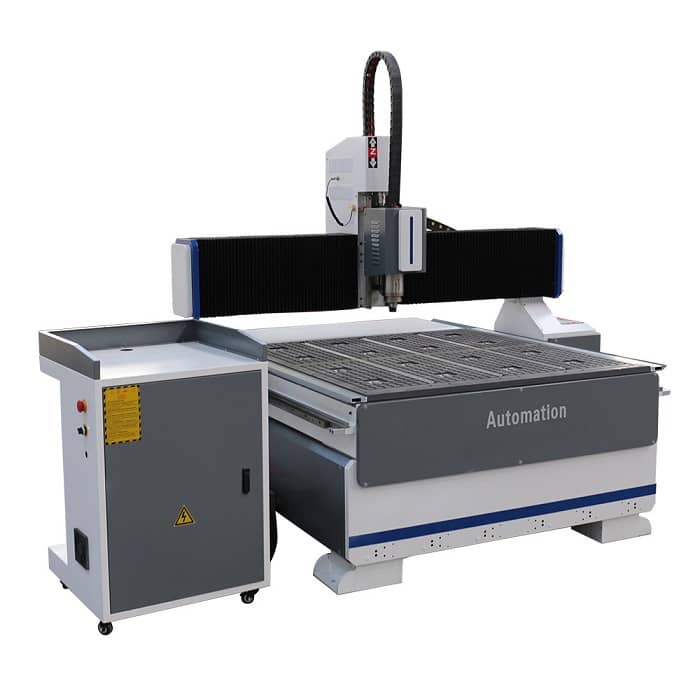

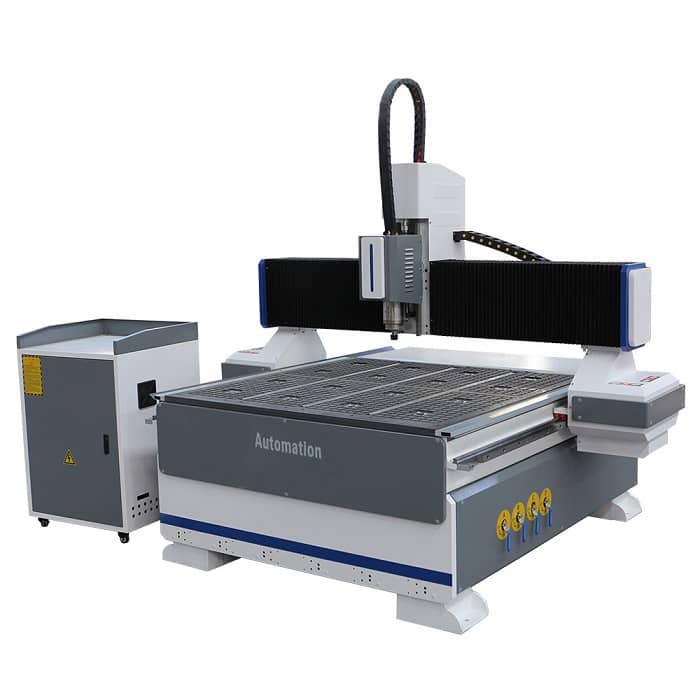

KL-1313 CNC Router 51″ x 51″ x 11.0″ T slot, Vacuum Table, Helical Rack and Pinion
This heavy, rigid machine is perfect for machining basically some material: from wood, plastic, aluminum. With a water cooled spindle, ER20 collet system - this machine will become an integral part of your shop toolbox. This machine is perfect for small prototypes, small signs, and any other common CNC router tasks.
Price
KL-1313 CNC Router 51″ x 51″ x 11.0″ T slot, Vacuum Table, Helical Rack and Pinion
Product Description
KL-1313 CNC Router 51" x 51" x 11.0",
T slot, Vacuum Table, Helical Rack and Pinion
You can use Mach3, Mach4 UCCNC, Vcarve Pro Software
Pls contact us to quote the shipping fee according your address
1: KL-1313 CNC Router ~51" x 51" x 11 ", It has T-slots and Vacuum Table, helical rack and pinion in X, Y axis, It has Mach3 spindle and relay control board with USB Connection, you can use 32bit or 64 bit computer
Machine with 3.2W Water Cooled Spindle + 3.2KW 400Hz Variable Frequency Drive, 6000-24000 RPM
ER20 Collet Chuck
Working Size X,Y,Z : 1300 x 1300 x 270mm ( about 51" x 51" x 11")
NEMA34 Stepper Motor and Driver: 495 oz-in, 6A with 5:1 Pulley Reduction
Automatic Lubricated System
Resolution: about 0.05 mm
X, Y, Z Repeatability: 0.02 mm
Working Speed : 100 -500 IPM
Rapid: 500-800 IPM
X, Y, Z axis Stepper Motor Driver: High Quality Stepper Motor Driver
X, Y, Z Optical Switch
E- Stop, Z Height Probe
X Axis: Rack Pinion Modulus: 1.25 mod
Y Axis: helical rack and pinion (Modulus: 1.25 mod) with pulley reduction 4:1
Z Axis 20m Linear Rail with 25mm Ball screw, 10mm lead
Spindle speed: 6000 to 24000 RPM
Table Grid Size: 8mm x 8mm
Each panel has a Valve to Control ON/OFF
Machine size: 2050*2050*1700mm ( 80.7 " x 80.7" x 66.9")
Machine Weight: About 1500 lbs
One year USA parts warranty
You can come to our show room to check the machine.
USA Tech Support Phone: 847-984-0882
2: You can run the router at 110VAc or 220VAC with a step-up transformer, from 110VAC to 220VAC ( Transformer is not included)
3: We use this Ethernet Board: Mach3 or Mach4 ESS board
4: a Wireless MPG is not included, pls check here
Start Up Procedure:
KL-1313 and KL-1325 Installing Guide (633 downloads)
KL-Series CNC Manual (5262 downloads)
You can use this lubrication Oil Mobil Vactra #2 Way Oil (1 Gallon)
SampleVideo:
You can add Mach3, Mach4 UCCNC, Vcarve Pro Software or Computer
Mach3:
Fully Licensed Mach3 (Authorized), Email you license file
Mach4:
Fully Licensed versions of Mach4, Email you the license.
UCCNC :
UCCNC Control Software, 6-axis ( X,Y,Z, A,B,C) (UCCNC Control Software, 6-axis ( X,Y,Z, A,B,C))
Smooth Stepper Board Interface Box,:
Ethernet SmoothStepper Board Interface Box, 6 Axis for Mach3, Mach4
USB Connection UC100
6 Axis USB MOTION CONTROLLER for Mach3, Mach4 UC100, or UCCNC (USB UC100)
I5 computer:
I5 CNC Computer with 19" monitor, Refurbished
I7 computer:
Mini Industrial Computer:
Mini Industrial PC Fanless Core i7
Vcarve Pro
