Product Description

AC 220V, No Power Supply, No Breakout Board,  Easy to wire

EtherCAT Servo Driver ELP ( EL7 ) -EC1000Z and EtherCAT Servo Motor ELM1000FM80H-SS

Following items are included:

A: 1 Pc EtherCAT Servo Motor 1000W

Model Number: 1000W

Motor Specification:

Rated Voltage: 220VAC

Rated Power: 1000W

Rated Torque: 3.18 (N.m)

Peak Torque: 9.52 (N.m)

Rated Speed: 3000 RPM

Peak Speed: 5000 RPM

Rated Current: 5.7Amp

Peak Current: 17.1 Amp

Torque Const: 0.57 (N.m/Amp)

Back EMP Const: 36.2 ( V/Krpm)

Resistance: 1.07 Ohm

Inertia(kg*m2*10-4): 1.63

Inductance: 6.9 mH

Poles: 10

Encoder Type: 17 Bit Single Turn

Protection Level: IP54

B: 1 Pc EtherCAT Servo Driver  190-240VAC

*If you would like to order the Servo Motor Control kit with cable, following cables are included.*

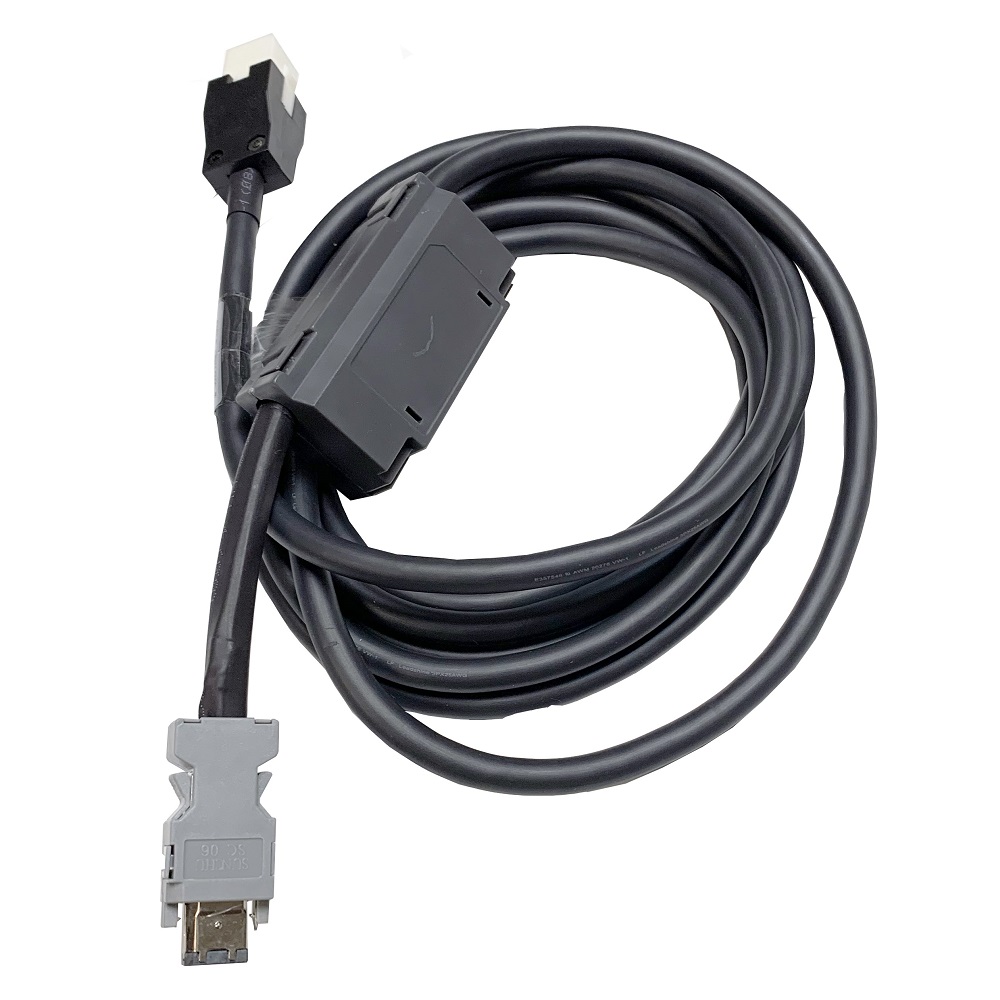

-- 1 Pc Cable-7BMA5M0-Z "5-Meter encoder cable with battery"

-- 1 Pc Cable-RZ5M0-S - 5-Meter power cable

Or

1 Pc Cable-7BMA3M0-Z "3-Meter encoder cable with battery" ,

1 Pc Cable-RZ3M0-S - 3-Meter power cable

If you need the Mach4 license, check the link:

Fully Licensed versions of Mach4, Email you the license.

Check the link to see Video

EtherCAT Video for Maho CNC Conversion from Tony (65)

EtherCAT Video (365)

*One Year Warranty*

Downloads:

EtherCAT 1000W Servo Motor Drawing (344 downloads)

EtherCAT Servo Driver User Manual (1338 downloads)

EtherCAT Servo Motor Kit Wiring Diagram (951 downloads)

XML File for EtherCAT Servo Driver (635 downloads)

Note: If the driver shows "Er 154", please set Pr 0.15 as 0
