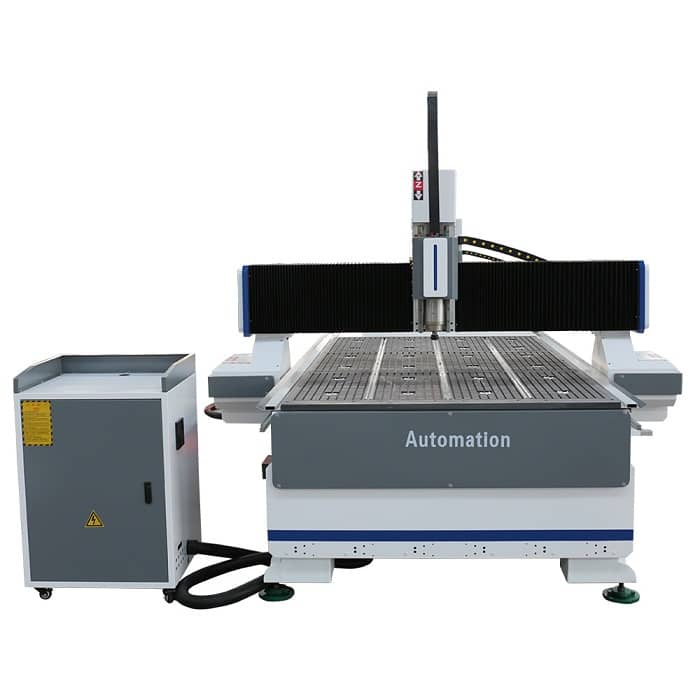

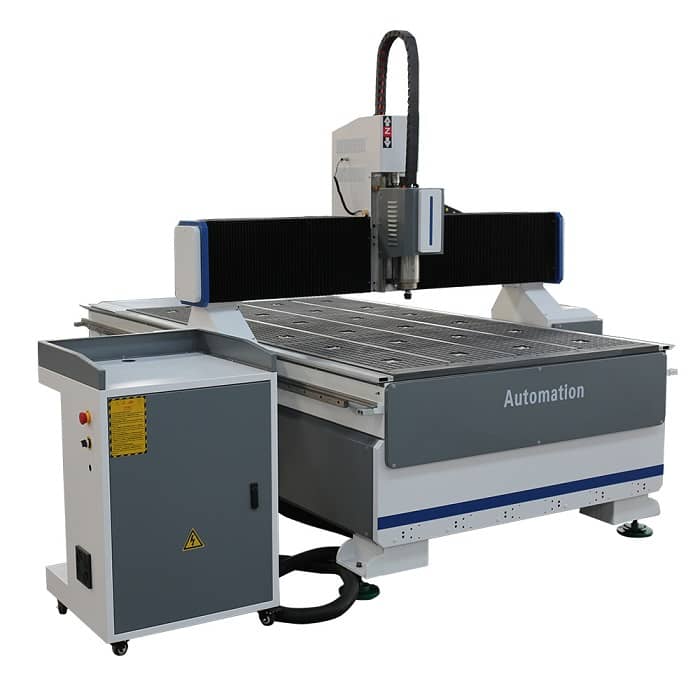

KL-1325 CNC Machine 98.4″ x 51.2″, T slot, Vacuum Table, Rack/Pinion

Product in stock

Price

from $12,000.00

Loading Updating cart...

KL-1325 CNC Machine 98.4″ x 51.2″, T slot, Vacuum Table, Rack/Pinion

Product Description



Pls contact us to quote the shipping fee according your address

We opened and checked, tested in our Chicago office

We paid the duty and broker fee.

You can come to our show room to check the machine. or call us at 847-984-0882 for any question. You do not need anything to start up your job

USA Tech Support: 847-984-0882

1:  Brand New CNC Router Engraving  Machine ,T slot, Vacuum Table, Rack/Pinion

2: 3 .2 KW Water Cooled Spindle + 3.2 KW 400Hz Variable Frequency Driver

3: We changed this Machine to Mach3 or 4 Control , DB25 Breakout board with Relay and  Spindle control with Ethernet,  You can use 32 bit or 64 bit Computer

4: We can update to Centroid Software if you  need

4:  Mach3 Software  is not included

X,Y axis working area

1300mm*2500mm (51.2" x 98.4")

Z axis working area

200mm ( about 8")

Table size

1440mm*3000mm

Max. speed

14m/Min

Max. working speed

12m/Min

Working accuracy

0.05 mm

Repositioning accuracy

0.02 mm

Feeding height

120mm

Command code

G code

Software

working with Mach3 software  with  Windows 64 bit

Working power

4000W

Working voltage

AC220V/50HZ/60HZ

Water Cooled Spindle power

3.2 KW

Spindle running speed

6000-24000

Spindle Power Motor: 3.2KW, Water-Cooled, ER20 Collet Chuck

Spindle Speed: 6000-24000 rpm With VFD, AC220V/50Hz/60HZ

X, Y, Z axis driver:  Stepper Motor Driver, NEMA34 Stepper Motor

X, Y Z Limit Switch

E- Stop, Z Height Probe

X Axis:   Rack Pinion Modulus: 1.25 mod

Y Axis: helical rack and pinion (Modulus: 1.25 mod) with pulley reduction 4:1

Z Axis 20m Linear Rail with 25mm Ball screw, 10mm lead

Spindle speed: 6000 to 24000 RPM

Table Grid Size: 8mm x 8mm

Each panel has a Valve to Control  "ON/OFF"

One year USA parts Warranty

We will send you a PayPal request for shipping fee difference

Size of packing: W86"  x H 71" x L 129"

Total weight: 1850 Lbs

Start Up Procedure:

KL-1313 and KL-1325 Installing Guide (535 downloads)

KL-Series CNC Manual (5092 downloads)

KL-1212wiring (772 downloads)

You can add mach3, Mach4 or Computer

Fully Licensed Mach3 (Authorized), Email you license file

Fully Licensed versions of Mach4, Email you the license.

I5 CNC Computer with 19" monitor, Refurbished

You can use this lubrication Oil Mobil Vactra #2 Way Oil (1 Gallon)
