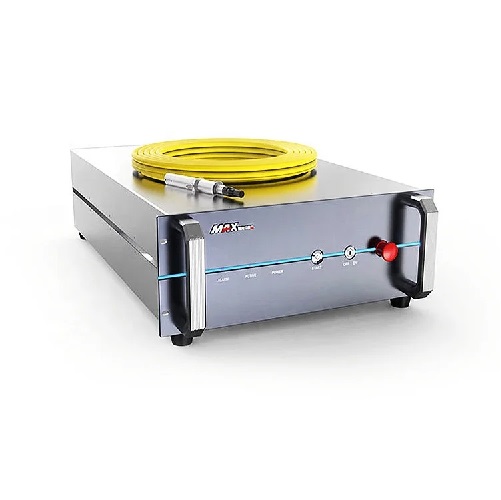

Max 3000W Laser Generator Source For Fiber Laser Cutting Machine
Product in stock
Price
$4,290.00
Max 3000W Laser Generator Source For Fiber Laser Cutting Machine
Product Description
MAX fiber laser source
- Condition: Brand New
- Model: MFSC-3000C
- Power: 3000W
- Operating power: Three phase, AC200-220V, 50/60Hz
The new generation of Single Module 3000W Fiber Lasers which combined with high power, compact size, superior beam quality, and high light conversion efficiency. It can meet the requirements of precision processing, 3C product welding and high-reflective material cutting ability are significantly improved. It is suitable for remote processing, high-frequency laser cutting and clean surface cutting. It can be quickly and conveniently integrated into machine tool equipment and large-scale factory automation production line.
1. More reliable and saving power.
2. Easy to maintain.
3. Easy to operate.
|
Mode of Operation |
CW/Modulated | |
| Polarization | Random | |
| Power Tunability | 10 to 100% | |
| Wavelength | 1080 ± 10 nm | |
| Power Stability | ±1 % | |
| Laser Beam Quality, BP P | 1.1 to 1.5 mm x mrad (50μm QBH) | |
|
2.8 to 3.6 mm x mrad (100μm QBH) |
||
| Modulation Frequency | ≤5 KHz | |
| Preview Red Light Power | 200 μW | |
| FIBER DELIVERY SYSTEM | ||
| Interface | QBH (LOC) | |
| Length | 20m standard, other lengths optional | |
| Diameter | 50(100/200) μm | |
| Bending Radius | 200 mm | |
| ELECTRICAL RATINGS | ||
| Supply Voltage | 400VAC (-15% to +10%) 3-phase | |
| OTHER SPECIFICATIONS | ||
| Operating Temperature | +10 to +40℃ | |
| Storage Temperature | -10 to +60℃ | |
| Humidity | 10 to 85% | |
| Cooling Method | Water Cooling | |
| Cooling Medium | Distilled water/ Glycol Antifreeze | |
| Dimension | 482.6×950×193 mm | |
