NEMA34 Closed Loop Stepper Motor System- Hybrid Servo Kit-32 bit DSP Based, 1128 oz-in

Product in stock

The Hybrid Servo Driver series offers an alternative for applications requiring high performance and high reliability when the servo was the only choice, while it remains cost-effective. The system includes a 2-phase stepper motor combined with a fully digital, high performance drive and an internal encoder which is used to close the position, velocity and current loops in real time, just like servo systems. It combines the best of servo and stepper motor technologies, and delivers unique capabilities and enhancements over both, while at a fraction of the cost of a servo system.

Price

$249.95

Loading Updating cart...

NEMA34 Closed Loop Stepper Motor System- Hybrid Servo Kit-32 bit DSP Based, 1128 oz-in

Product Description

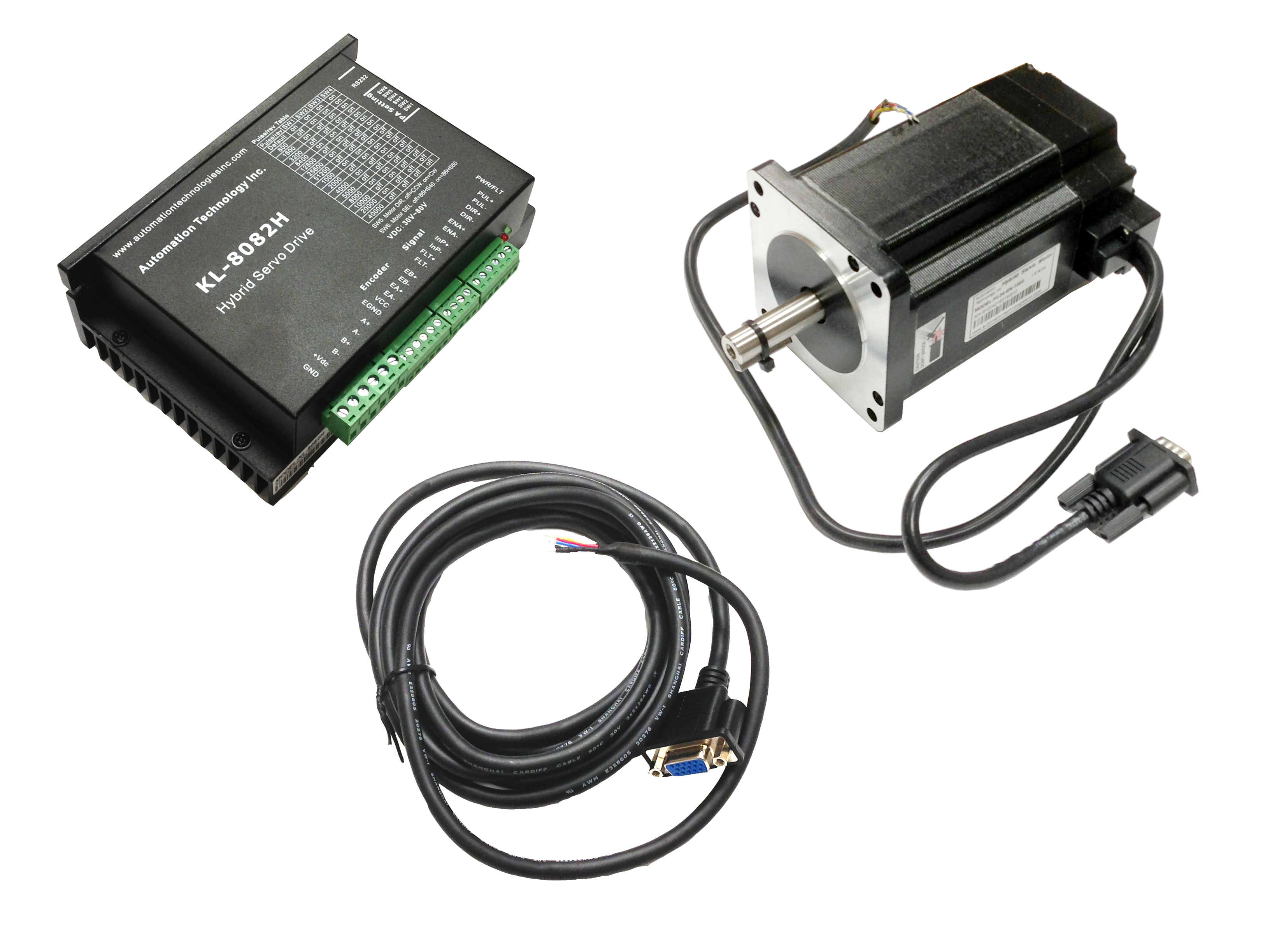

NEMA 34 Hybrid Servo kit (closed-loop stepper system):

1pc Hybrid Servo Driver KL-8082H,

1pc NEMA34 KL34-8N-1000 Hybrid Servo Motor with one Encoder 1000 line,

1pc 1.5 meter cable or longer

Specification:

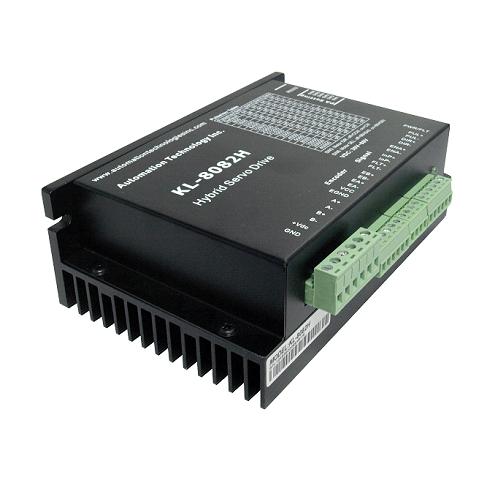

A: KL-8082H 2-phase Hybrid Servo Driver:

30-80V, 8.2A Peak, No Tuning, Nulls loss of Synchronization

Closed-loop, eliminates loss of synchronization

Broader operating range – higher torque and higher speed

Reduced motor heating and more efficient

Smooth motion and super-low motor noise

Do not need a high torque margin

No Tuning and always stable

Fast response, no delay and almost no settle time

High torque at starting and low speed, high stiffness at standstill

Lower cost

B: NEMA34 Hybrid Servo Motor, KL34-8N-1000, 1/2" Shaft

Rated Torque 1128 oz-in, 8 N-m, with Encoder 1000 line

C: 1.5 meter Encoder cable

1000 pulses per revolution

Quadrature digital signals: 4000 steps per revolution

4000 / .05 pitch

80,000 counts per unit


Driver Manual Download:

HY-8082H (1574 downloads)

Motor Specification:

KL-34-8N-1000 (5608 downloads)

Torque:

Hybrid Servo Motor (13068 downloads)

Specially for Automation Technologies by Leadshine  (OEM)

Thank you Marty for your video to show the Wiring!
