Product Description

NEMA34 110AC Closed Loop Stepper Motor 1699 oz-in, Driver - Hybrid Servo Kit:

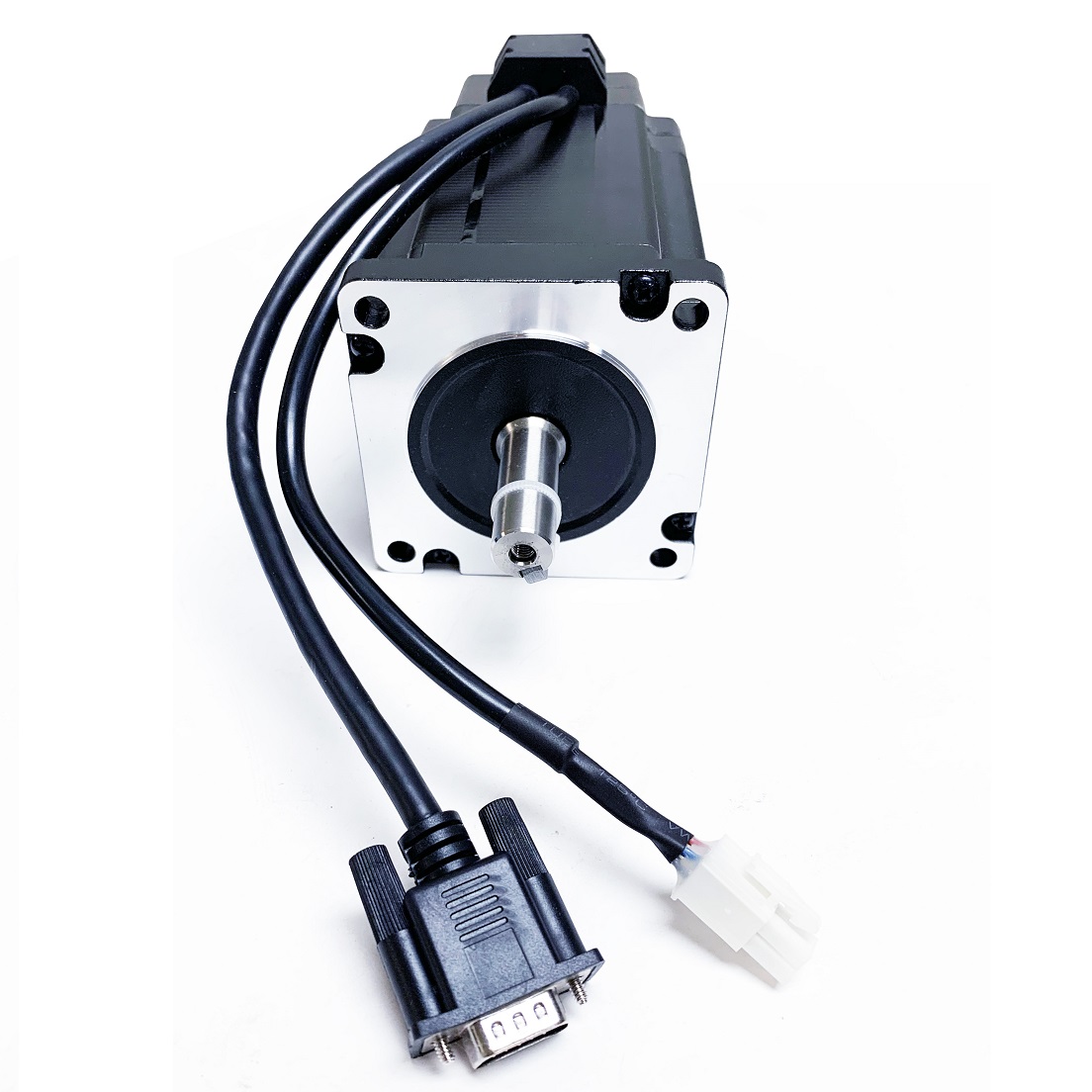

1pc NEMA 34 Closed Loop Motor: KL34-12N-1000:  1699 oz-in, shaft size: 14 mm ( Not 1/2)

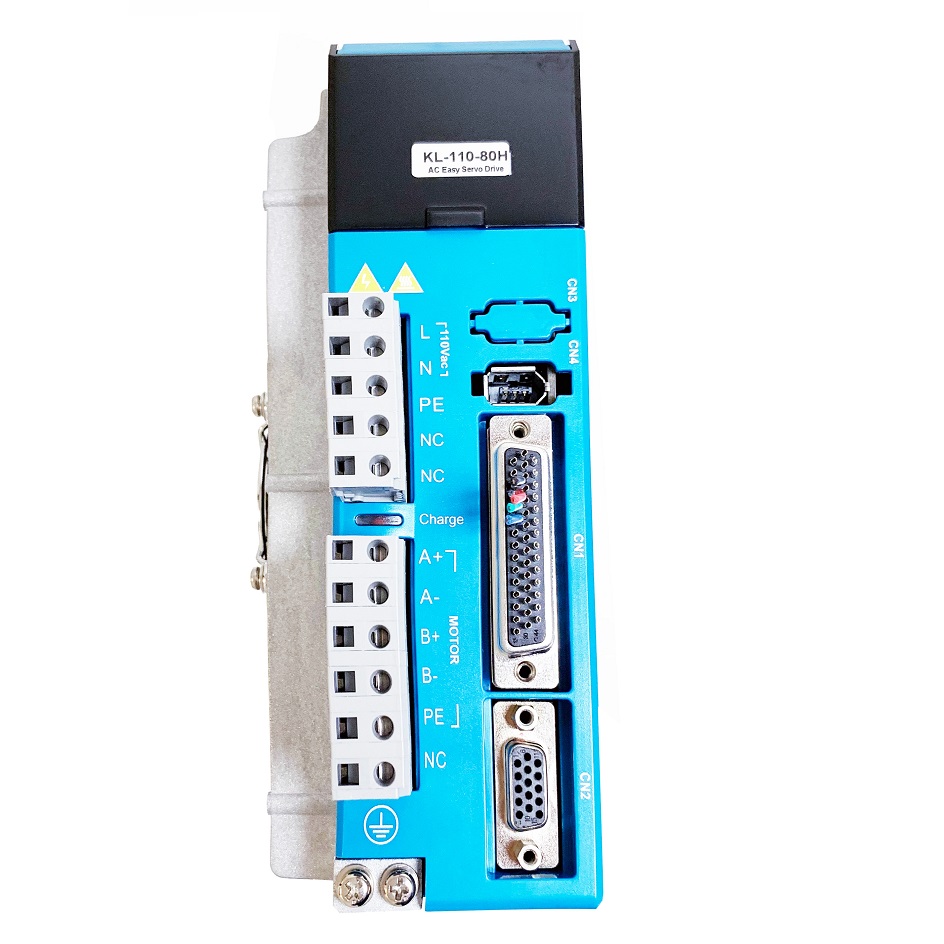

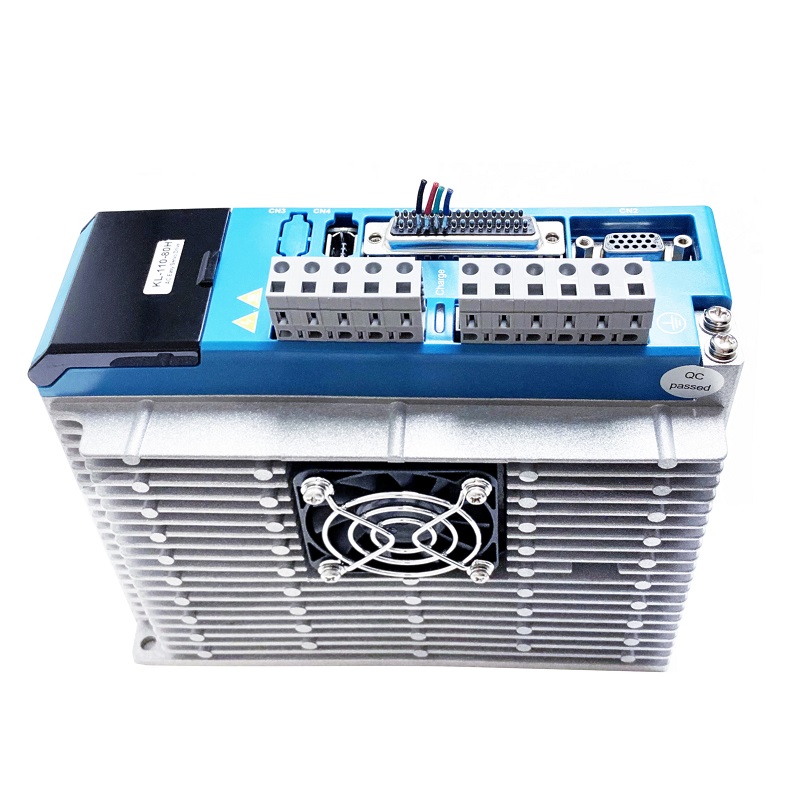

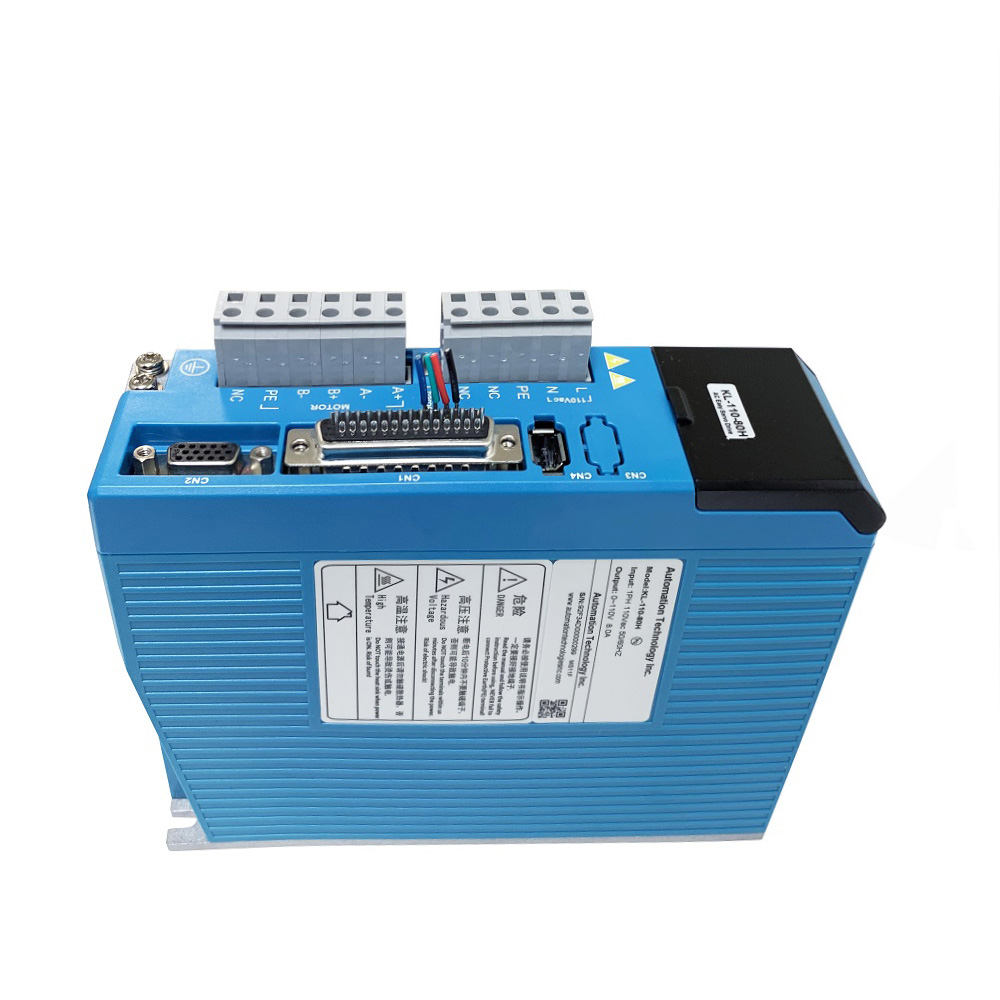

1pc 110VAC KL-110-80H Driver

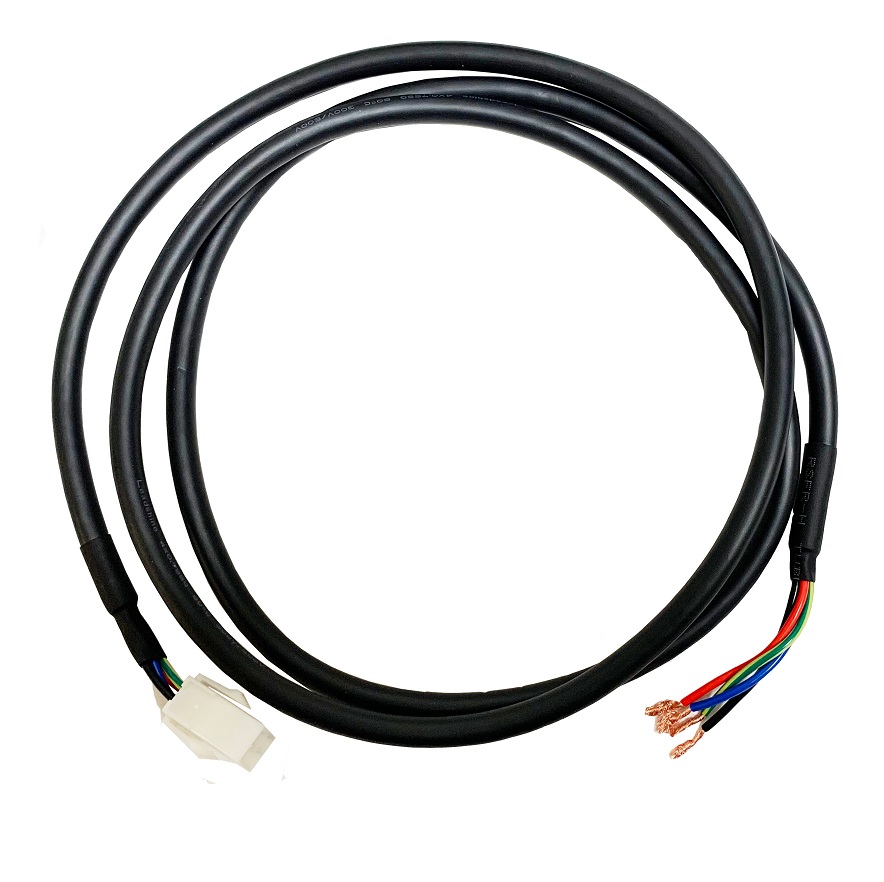

1pc Cable, 1.5m or longer

Specification:

1: NEMA 34 Closed Loop Motor: KL34-12N-1000:  1699 oz-in, shaft size:  14 mm ( Not 1/2)

Specification:

Current: 5A

Holding Torque: 12 N-m, 1699 oz-in

Encoder on back: 1000 line

Phase Inductance: 12 mH

2: 110VAC KL-110-80H Driver Specification

Closed-loop control, no longer lose any steps,

Up to its maximum torque;

Higher torque and higher speed;

Fast response;

Reduced motor heating and more efficient;

Zero-speed stability;

Smooth motion and super-low motor noise;

No Tuning and always stable;

Lower cost

Wiring:

A+ to Black

A- to Red

B+ to Yellow

B- to Blue

Downloads:

KL34-12N-1000 Datasheet (144 downloads)

KL-110-80H Datasheet (372 downloads)

KL-110-80H Hardware Manual (380 downloads)

NEMA34 Closed Loop with C10 Wiring Diagram (321 downloads)

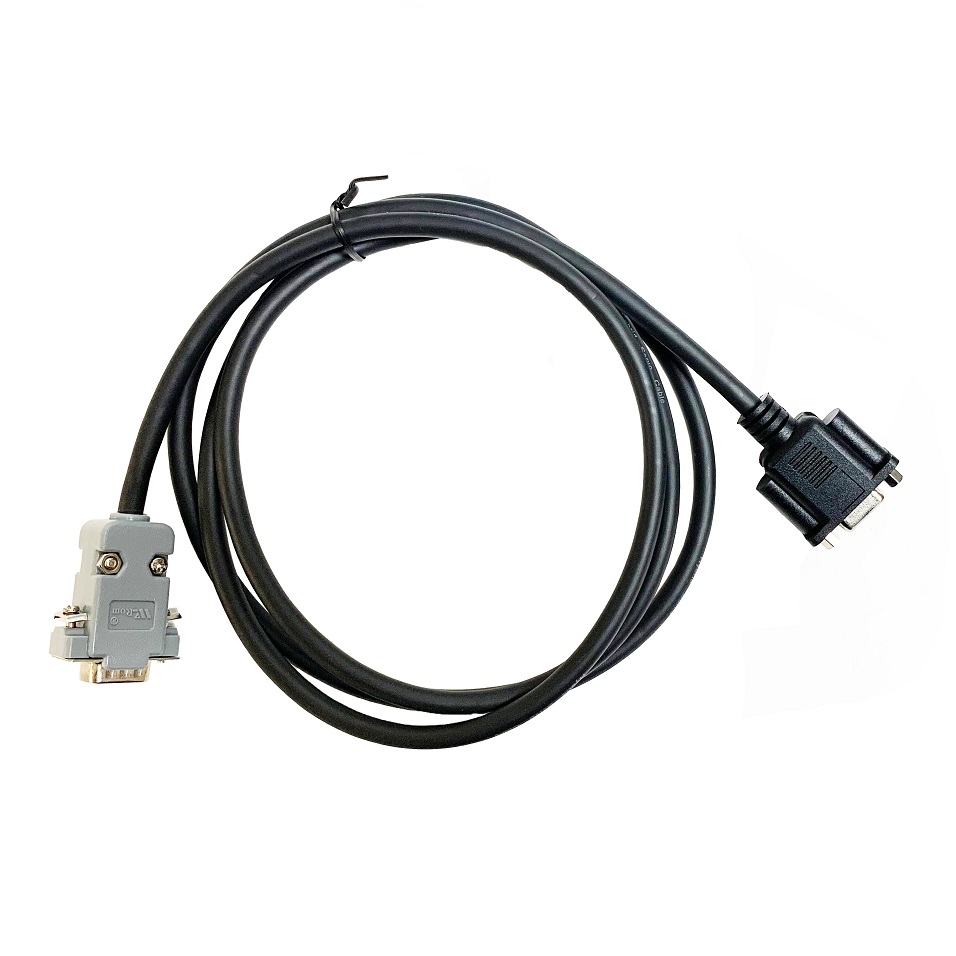

If you need the RS232 Tuning Cable for Driver: RS232Cable

RJ45 Ethernet Connector for Driver: ES-DH Connector

Process to reset your driver to factory setting:

1. Press" ENT", then press "M" switch the screen till it shows "AD-lnl"
2. Press "ENT", the screen change to "lnl"
3. Press the Up arrow bottom till the screen shows "Finish".
4. Power cycle the driver.
