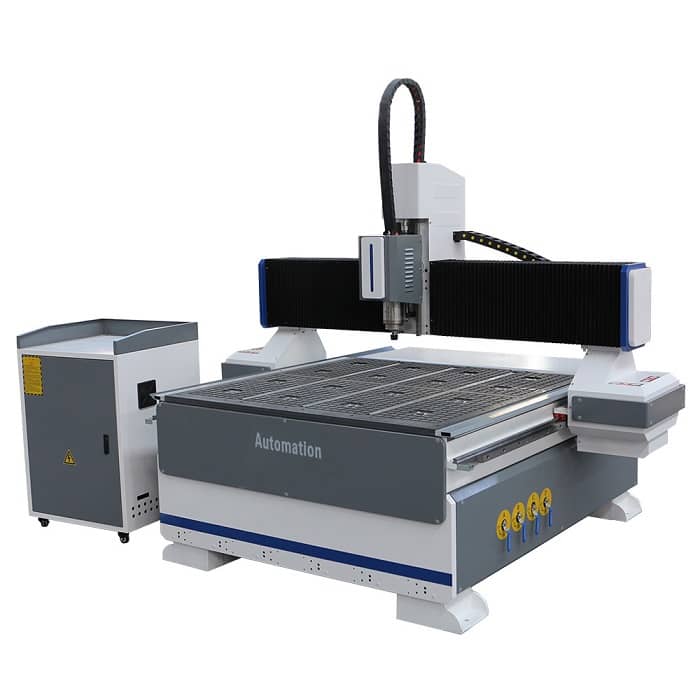

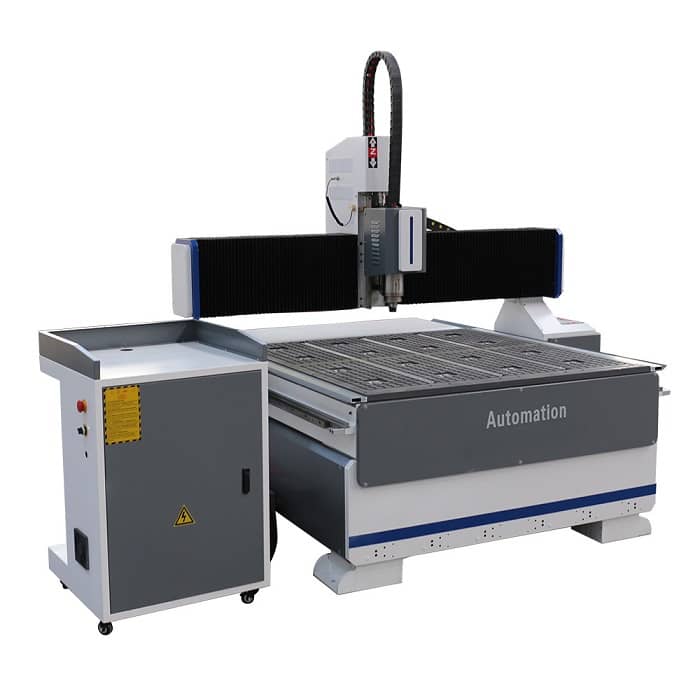

KL-1313 CNC Router 51″ x 51″ x 11.0″ T slot, Vacuum Table, Helical Rack and Pinion

Product in stock

This heavy, rigid machine is perfect for machining basically some material: from wood, plastic, aluminum. With a water cooled spindle, ER20 collet system - this machine will become an integral part of your shop toolbox. This machine is perfect for small prototypes, small signs, and any other common CNC router tasks.


from $8,999.00

Loading Updating cart...

KL-1313 CNC Router 51″ x 51″ x 11.0″ T slot, Vacuum Table, Helical Rack and Pinion

Product Description

KL-1313 CNC Router 51" x 51" x 11.0", with Mach3 or Mach4 control, or UCCNC

 T slot, Vacuum Table, Helical Rack and Pinion

Click to Apply Financing

Pls contact us to quote the shipping fee according your address

1: KL-1313 CNC Router ~51" x 51" x 11 ", It has  T-slots and Vacuum Table, helical rack and pinion in X, Y axis, It has Mach3 spindle and relay control board with USB Connection, you can use 32bit or 64 bit computer

Machine with 3.2W Water Cooled Spindle + 3.2KW 400Hz Variable Frequency Drive, 6000-24000 RPM

ER20 Collet Chuck

Working Size X,Y,Z : 1300 x 1300 x 270mm ( about 51" x 51" x 11")

NEMA34 Stepper Motor and Driver: 495 oz-in, 6A with 5:1 Pulley Reduction

Automatic Lubricated System

Resolution: about 0.05 mm

X, Y, Z Repeatability: 0.02 mm

Working Speed : 100 -500 IPM

Rapid: 500-800 IPM

X, Y, Z axis Stepper Motor Driver: High Quality Stepper Motor Driver

X, Y, Z Optical Switch

E- Stop, Z Height Probe

X Axis:  Rack Pinion Modulus: 1.25 mod

Y Axis: helical rack and pinion (Modulus: 1.25 mod) with pulley reduction 4:1

Z Axis 20m Linear Rail with 25mm Ball screw, 10mm lead

Spindle speed: 6000 to 24000 RPM

Table Grid Size: 8mm x 8mm

Each panel has a Valve to Control  ON/OFF

Machine size: 2050*2050*1700mm ( 80.7 " x 80.7" x 66.9")

Wood Packing Dimension: 89" x 75" x 77"

Machine Weight: About 1500 lbs

One year USA parts warranty

You can come to our show room to check the machine.

USA Tech Support Phone: 847-984-0882

2: You can run the router at 110VAc or 220VAC with a step-up transformer, from 110VAC to 220VAC ( Transformer is not included)

3: We use this Ethernet Board: Mach3 or Mach4 ESS board

4: a Wireless MPG is not included, pls check here

Start Up Procedure:

KL-1313 and KL-1325 Installing Guide (576 downloads)

KL-Series CNC Manual (5167 downloads)

KL-1212wiring (813 downloads)

You can add mach3, Mach4 or Computer

Fully Licensed Mach3 (Authorized), Email you license file

Fully Licensed versions of Mach4, Email you the license.

I5 CNC Computer with 19" monitor, Refurbished

You can use this lubrication Oil Mobil Vactra #2 Way Oil (1 Gallon)


KL-1313 Customer Video
