KL-1212 CNC Router 48 x 48 inch, T slot, Vacuum Table, Helical Rack and Pinion

Product in stock

Price

$6,199.00

Loading Updating cart...

KL-1212 CNC Router 48 x 48 inch, T slot, Vacuum Table, Helical Rack and Pinion

Product Description




Click to apply Financing

KL-1212 CNC Router 48 x 48 inch, T slot, Vacuum Table, Helical Rack and Pinion, USB Connection

Pls contact us to quote the shipping fee according to your address

We opened and checked, tested in our Chicago office

We paid duty and broker fee

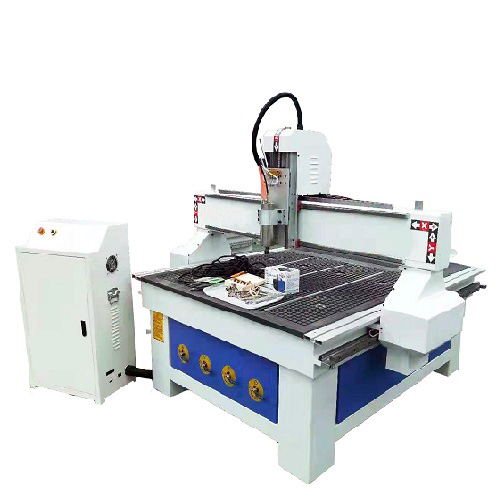

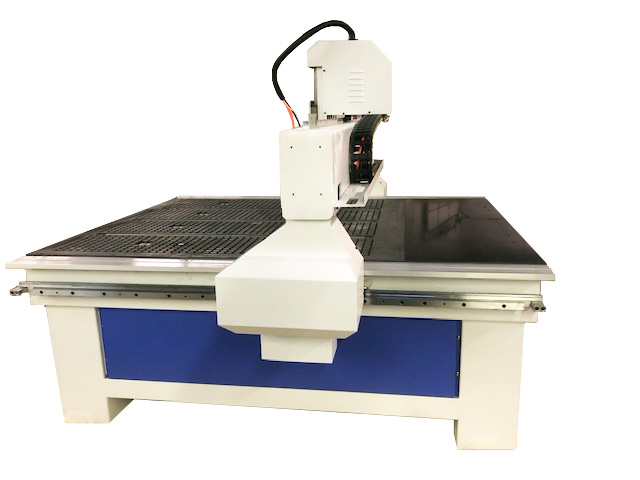

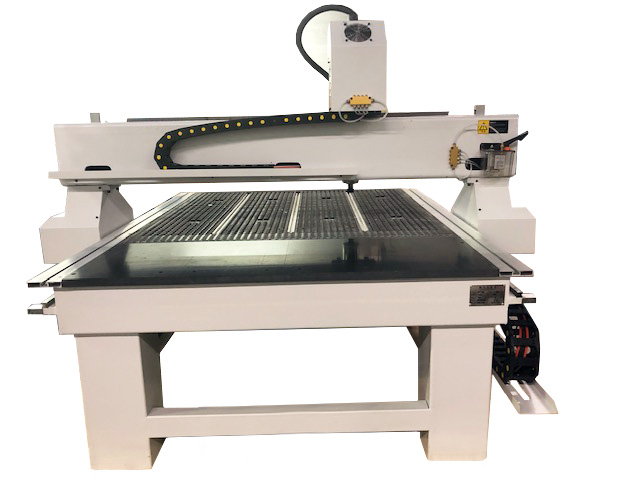

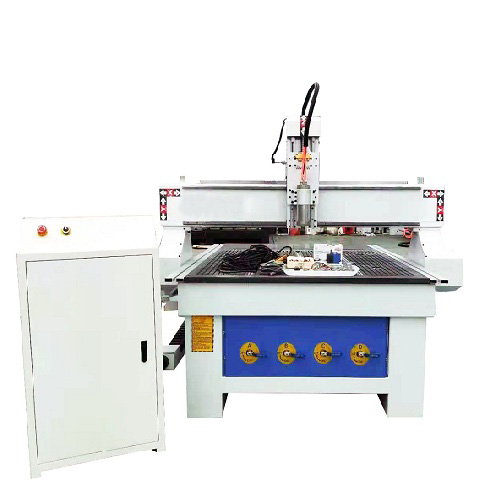

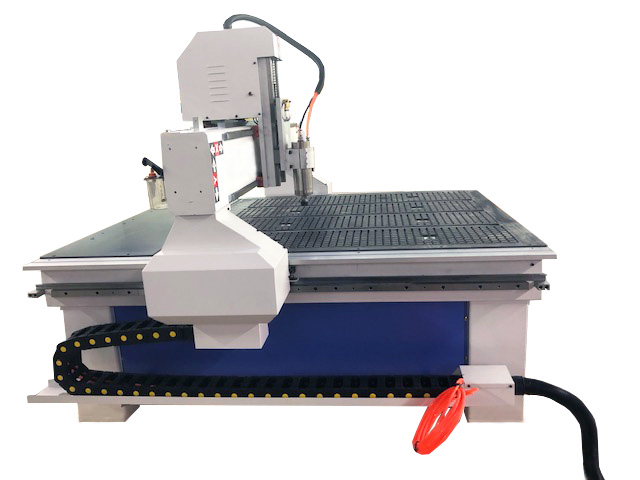

1: KL-1212 CNC Router ~48" x 48" x 8.0",  It has 5 T-slots and Vacuum Table,  helical rack and pinion in X, Y axis,  It has Mach3  spindle and relay control with Ethernet Board, you can use 32bit or 64 bit computer

Machine with 2.2KW Water Cooled Spindle + 2.2KW 400Hz Variable Frequency Drive, 6000-24000 RPM

ER20 Collet Chuck

Machine Size: 1620 x 1610 x 1230 mm ( about 63.7" x 63.4" x 48.4")

Working Size X,Y,Z : 1200 x 1200 x 200mm  ( about 48" x 48" x 8.0")

NEMA34 Stepper Motor and Driver: 495 oz-in, 6A

Resolution: about 0.05 mm

X, Y, Z Repeatability: 0.02 mm

Working Speed : 200 -700 IPM

Rapid: 500-800 IPM

X, Y, Z axis Stepper Motor Driver: High Quality Stepper Motor Driver

X, Y, Z Optical Switch

E- Stop,  Z Height Probe

X Axis: helical rack and pinion

Y Axis: helical rack and pinion with 5:1  pulley reduction

Z Axis 20m Linear Rail, 20mm Ballscrew

Spindle speed: 6000 to 24000 RPM

Table Grid Size: 8mm x 8mm

Each panel has a Valve to Control  ON/OFF

Wood Packing Dimension: 82" x 78"  x 57"

Machine Weight: About  1100 lbs

one year USA parts warranty

You can come to our show room to check the machine.

USA Tech Support Phone: 847-984-0882

2:  You can run the router at 110VAc or 220VAC  with a step-up transformer, from 110VAC to 220VAC ( Transformer is not included)

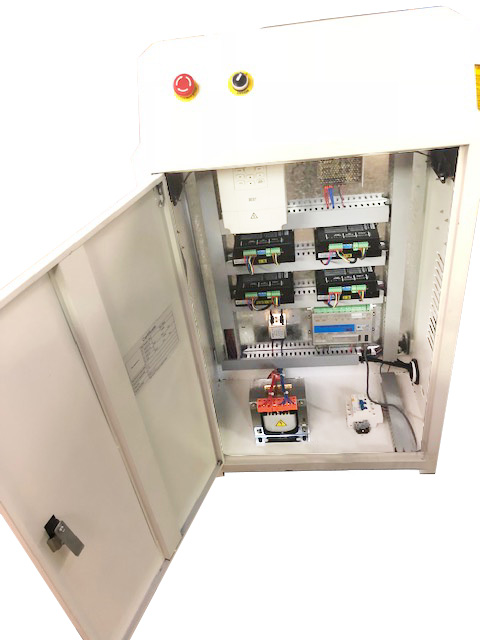

3: We use this Ethernet Board: Mach3 or Mach4 ESS board

 4: a Wireless MPG is not included, pls check here

5: A mach3 license is not included , pls check here

Mach3 set up for kit and machine, Download here

Mach3 Setup (Mach3Mill.xml file) (14456)
Mach3setup (17655)
Mach3Tutorial (210763)

Mach3 set up for machine, Download here

KL1212Mach3Setup (3499)

Mach3 wiring Diagram for machine, Download here

KL-1212mach3wiring (2244)

Start Up Procedure:
KL-Series CNC Manual (3587)
