KL-1530ATC CNC Router With Plasma

Product in stock



Loading Updating cart...

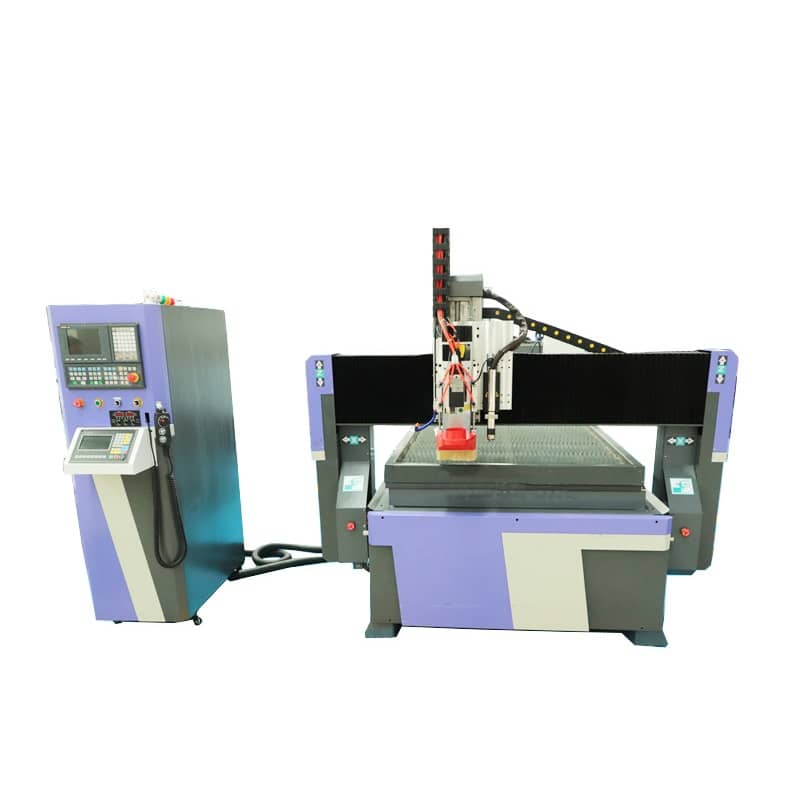

KL-1530ATC CNC Router With Plasma

Product Description

CNC spindle and plasma cutting torch install in one machine. It is not only a CNC router, but also a plasma cutting machine, saving space and costs.
It can be used for processing wood, plywood, acrylic, nonmetal materials, also can be used for steel, aluminum, and other metal materials.
Working Area
1300 x 2500 x 300mm
Vacuum Table for CNC router
Sawtooth table for plasma cutting
Double heads
  • 9.0kw HQD Air Cooling ATC Spindle, 0-18000rpm/min, ER32 Collect
  • Plasma Cutting Torch
Control system
  • Syntec controller for CNC router
  • Starfire 2100C controller with H25K THC for Plasma Cutter (200mm up and down)
Working Mode
750W Delta Servo Motor and Driver
Drive Mechanism
Rack & Pinion Transmission
Taiwan Square Guide Rails
Motion Positioning Accuracy
± 0.03/300mm
Repositioning Accuracy
± 0.03mm
Working Delicacy
Working Voltage
220 V 1PH/3PH, 50/60Hz
Operating Temperature
Operating Humidity


  • Huarong 63A Power Supply
  • Auto tool changer, 8 tool holders
  • Independent Controller Cabinet
  • Fuling Inverter
  • Vacuum table, 2.2kw air vacuum pump (3 pcs) -- 220V single-pgase
  • Starcam software
  • Fume extractor
  • Lubricant system
  • Saw tooth knife table ( 1500 * 3000mm)
  • 10pcs cutting nozzle
  • Tool sensor
Product Application:
As CNC router, it has 9.0kw air cooling ATC spindle, can engrave and cut non-metallic materials, such as wood, acrylic, mdf, pcb, foam, plywood, etc.
It is mainly used for advertising industry, woodworking industry, decorating industry, craft & gift industry, plate processing, mold industry.
As plasma cutting machine, with plasma cutting nozzle for cutting metal materials, such as aluminum, copper, iron, carbon steel, stainless steel, etc.
It is widely used for ship building, construction equipment, transport equipment, aerospace industry, bridge building, military industrial, wind power, structural steel, boiler containers, agriculture machinery, chassis electrical cabinets, elevator manufacturers, textile machinery, environmental protection equipment, etc.
One year warranty
