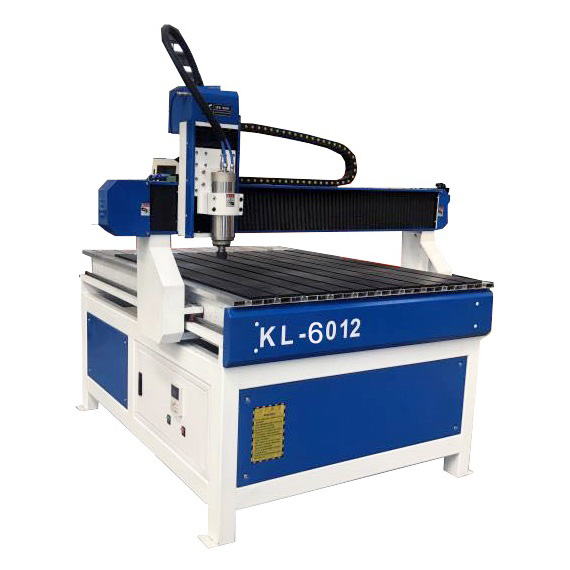

KL-6012 24″ x 48 ” CNC Router with Spindle and Relay Control, UC100 USB Control
Product in stock
Price
$7,599.00
KL-6012 24″ x 48 ” CNC Router with Spindle and Relay Control, UC100 USB Control
Product Description
- KL-6012 24″ x 48 ” CNC Router with Spindle and Relay Control,
- UC100 USB Control, Controller is under the table
- Voltage: AC220V
- Certification: CE
- Travel (X Axis)(mm): 600 mm (24″)
- Travel (Y Axis)(mm): 1200 mm (48 ” )
- Table Size(mm):
- 600mm x 1200mm (24″ x 48 ” )
- Working area:
- 600*1200* 200 mm (24″ x 48" x 8” )
- Resolution: about 0.05 mm (X, Y, Z)
- Repeatability: 0.02 mm
- It has the ball screw, and shaft support
- Gantry:
- Cast aluminum
- Structure:
- Cast iron
- Max velocity:
- 8m/min
- Max Working Speed:
- 6m/min
- NEMA 34 Stepper Motor and Driver, 495 oz-in
- 2.2KW Water Cooled Spindle speed:
- 8000-24000 rmp
- Single Gross Weight:
- 350.0 kg
- Package Type: Packaging Details: Wooden Case
- Weight (KG): 350 ( 770 IBS)
- Wood Packing Dimension: 80" x 66" x 57"
- You can run the router at
- 110VAC with a step-up transformer, it is not included
1: If you need us to help you to set up the machine, do Mach3 Training, add the training fee: $200 we will use using the TeamViewer
2: if you need a MPG, check here
Start Up Procedure:
KL-Series CNC Manual (4918 downloads)
KL-6090wiring (2151 downloads)
You can add mach3, Mach4 or Computer
Fully Licensed Mach3 (Authorized), Email you license file
