NEW 40W CO2 LASER POWER SUPPLY ( Input: 110 or 220 VAC )
Sale!

NEW 40W CO2 LASER POWER SUPPLY ( Input: 110 or 220 VAC )

Product in stock

Price

$109.95 $64.95

You save: $45.00! (40.93%)

Loading Updating cart...

NEW 40W CO2 LASER POWER SUPPLY ( Input: 110 or 220 VAC )

Product Description

Specification from Manufacture:

Wiring & Downloads
40W laser Power Wiring (1529)

40W
Input AC220V or AC110
Maximum Output Voltage DC 25KV
Maximum Output Current DC 20mA
Efficiency ≥90%(full load)
Response Speed ≤1ms(from the switch Signal is given to the output current up to 90% of the setting current)
Control Interface TTL level switch control (details refer to the control terminal specification)
Pressure-proof Input-Output, Input-Shell: AC1500V 10MA 60S
Environmental Operating Temperature: -10~40℃Relative Humidity (RH): ≤90﹪
Cooling Way Natural air cooling

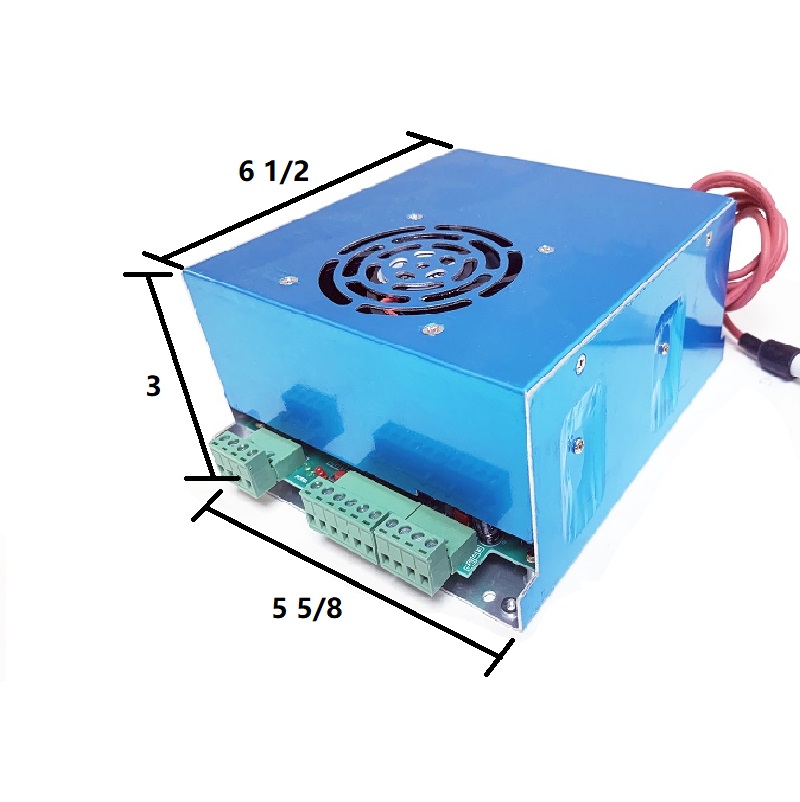

Dimension L×W×H=173*143*75 (mm)







P1

L-

 Connect the Negative Electrode of the Laser Tube.

FG

 Connect with G Internal, and Connect the Power Supply Shell.

AC AC

 AC 110V/220V Input.

P2

P+

 Water-Protction Switch

G

 Ground: The foot must connected with laser machine's enclosure and ground properly.

K-

 Ground: The foot must connected with laser machine's enclosure and ground properly.

K+

 Switch Laser Control:
High Level(≥3V)- Laser Off, Low Level(≤0.3V)-Laser On.

G

 Ground: The foot must connected with laser machine's enclosure and ground properly.

IN

 0-5V Analog Signal Control Input, also can use 5V PWM Signal to Control

5V

 5V,Max output Current 50mA

P3

24V

 Output 24V, Max Current 2A.

G

 Ground: The foot must connected with laser machine's enclosure and ground properly.

5V

 Output 24V,Max Current 1A.

L

 Switch Laser Control:
High Level(≥3V)- Laser Off, Low Level(≤0.3V)-Laser On.
