Rotary Attachment for 50W, 60W laser Machine, 3 Jaw Chuck and Blackplate

Product in stock

Price

$289.00

Loading Updating cart...

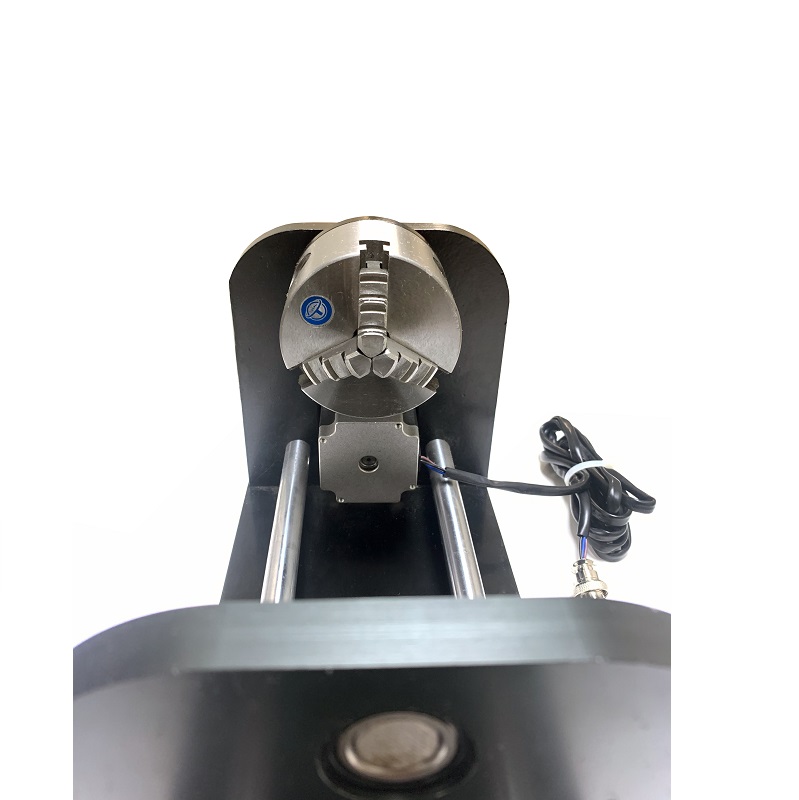

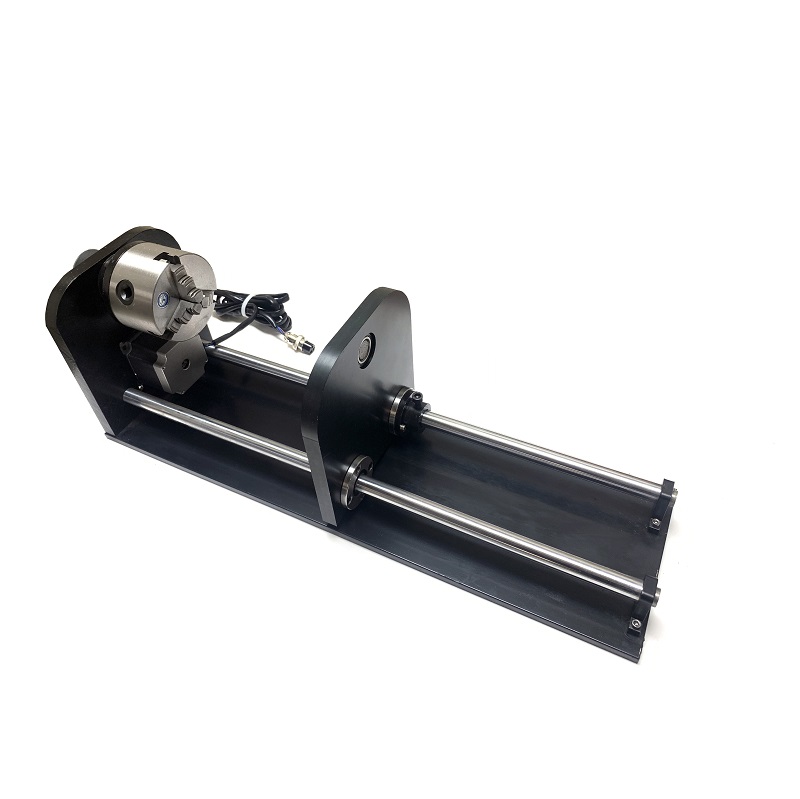

Rotary Attachment for 50W, 60W laser Machine, 3 Jaw Chuck and Blackplate

Product Description



Used for 50W, 60W or big Machine, 3 OR 4 pin connection

pls check with your current machine is with 3 pins or 4 pins motor connection then E-mail us which one you need to order!

Instructions of the Rotary Attachment

        Disconnect the Y-motor from the Y-driver.

  1. Plug in the rotary attachments plug, into the Y-driver.
  2. Put the rotary attachment on the work table.
  3. Attach the object to the rotary attachment.
  4. Modify the moving distance parameter of the Y-axis. The distance can be indicated to be πD/2. (D = the diameter of object)
  5. Adjust the focus.
  6. Start the engraving.

Maximum  length of Stock: 21.5”

Chuck Size: 3”

Chuck Bore Size: 0.5”

Width: 6.5 ”

Height: 7.5”
