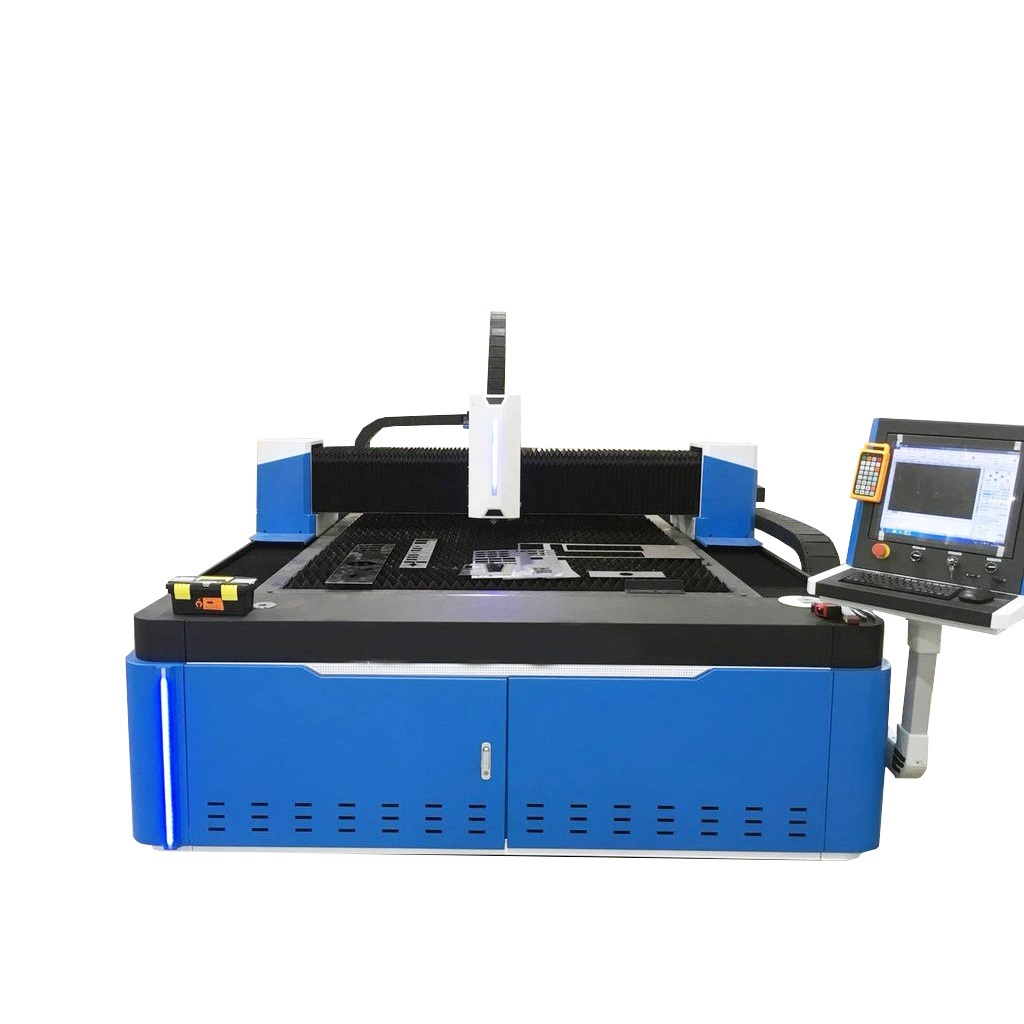

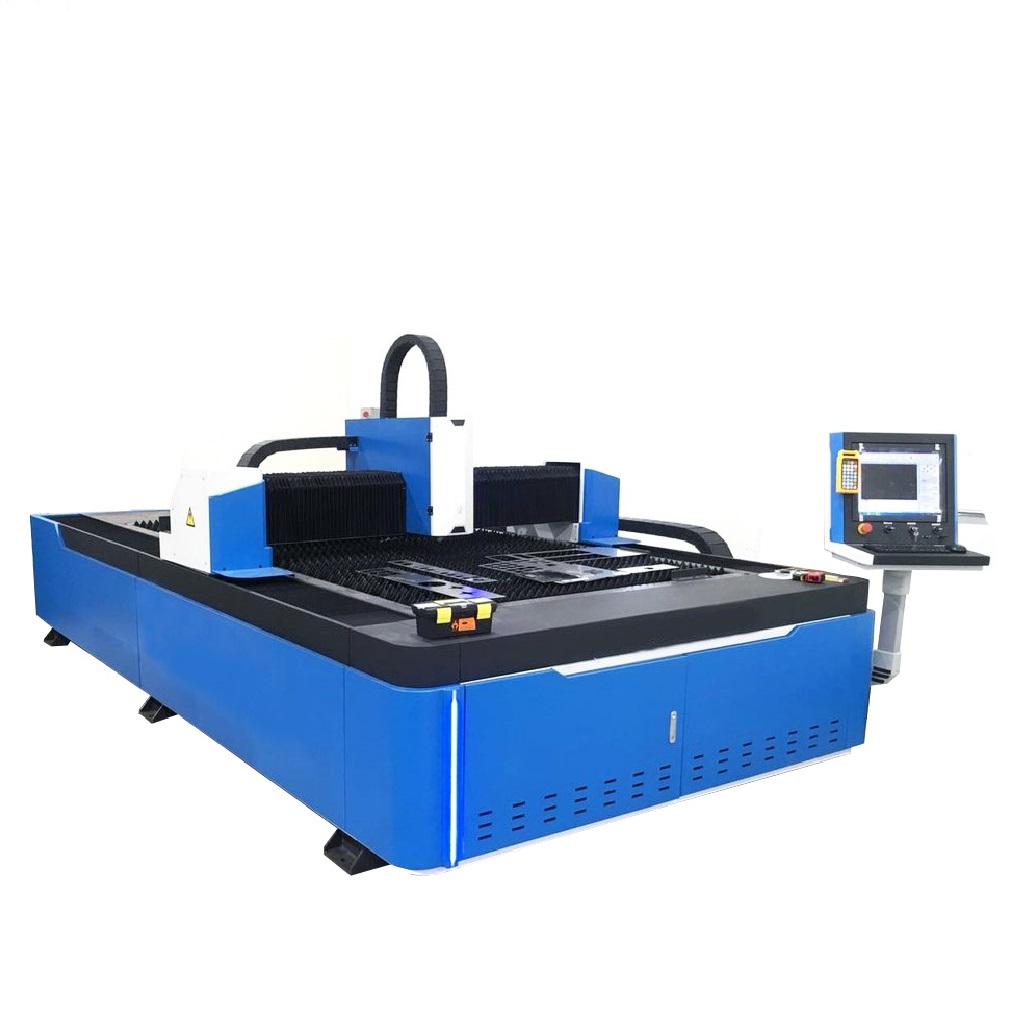

5′ X 10′ FIBER LASER METAL SHEET CUTTER, Pls Call us or Email us

Product Description


Pls call us at 847-984-0882 for any question

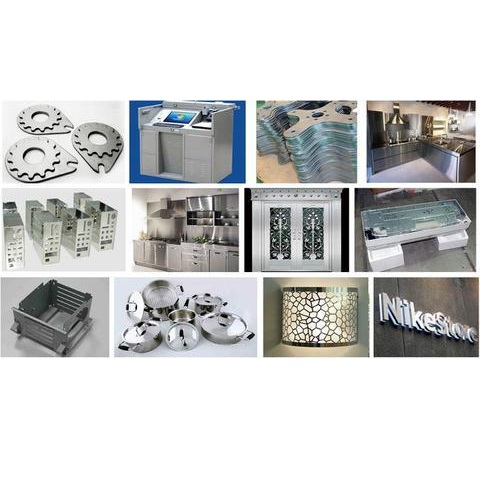

Cutting material and thickness

Material 1000w 1500w 2000w 3000w
Carbon steel(mm) 0.4-12 0.4-16 0.4-18 0.4-20
Stainless steel(mm) 0.4-5 0.4-6 0.4-8 0.4-12
Brass (mm) 0.4-3 0.4-5 0.4-6 0.4-8
Aluminum (mm) 0.4-3 0.4-6 0.4-8 0.4-10

SPECIFICATIONS

  • Working Area: 59" x 118 " (1500 mm x 3000 mm)
  • Z-axis Travel 4" (100 mm)
  • Dimension Tolerance: 0.05mm
  • Positioning Tolerance: 0.02mm
  • Laser Wattage: 1000 W/ 1500 W / 2000 W
  • Continuous Wave fiber laser, 1.07 um wavelength
  • Beam Quality: <0.373 mrad
  • RayCus Laser Generator RFL-C1000 RFL-C1500 or RFL-C2000
  • Optional IPG laser generator upgrade, call for pricing
  • Laser Head: RayTools or WSX
  • Control System: CypCut BCS 100
  • Cooling System: TeYu CWFL1000, CWFL-1500, CWFL-2000 or Comparable
  • Driving System: Servo Motors
    XYZ Servo Motors: Schneider or Delta Y 2x850W, X 1x750W, Z 1x400W
  • High Quality Rack and Pinion Guide Rails
  • Machine Power Supply: Three Phase 220 V or 480 W,
  • Power Consumption: 15-20 kW
  • Gross Weight: 9850 lbs
  • Air-Assist: Oxygen or Nitrogen
  • Warranty: Two years
  • Dedicated USA technical support from qualified technicians and engineers

One year warranty

Downloads:

Laser Mental Cutter Wiring Diagram (217 downloads)
