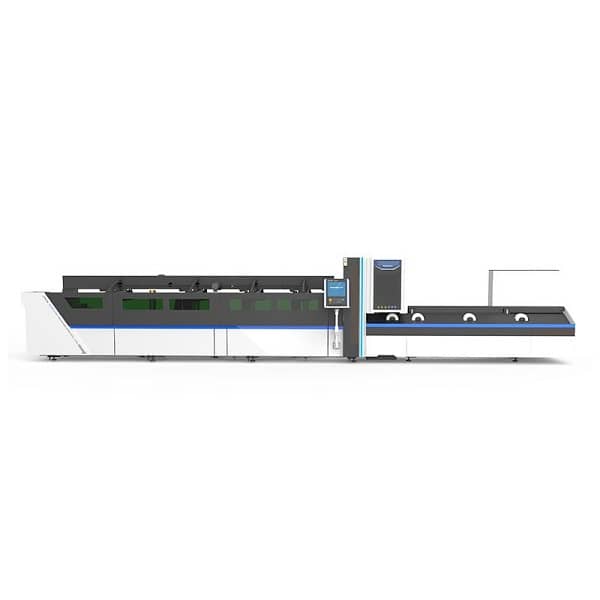

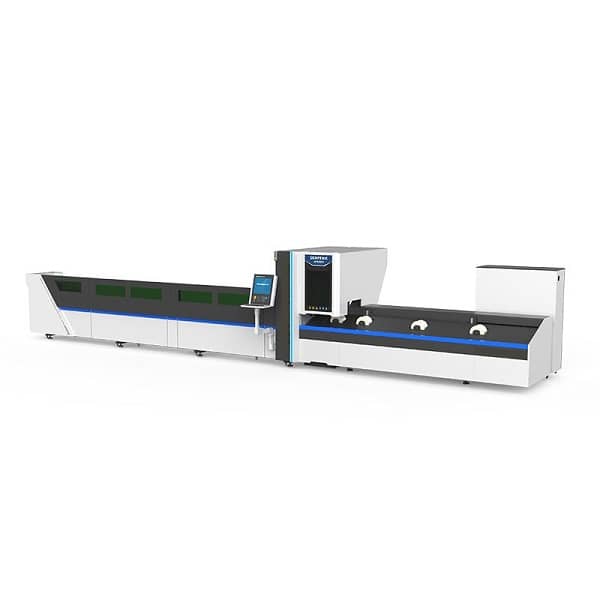

Bevel Tube Fiber Laser Cutting Machine 6020GT – Contact us for the price

Product in stock

Price

$0.00

Loading Updating cart...

Bevel Tube Fiber Laser Cutting Machine 6020GT – Contact us for the price

Product Description

Bevel Tube Fiber Laser Cutting Machine  6020GT  -- Contact us for the price!

847-984-0882  /  automationtecinc@yahoo.com

  • Power: 1,000 – 6,000 watts range (1kW-6kW)
  • Round Tube Diameter:Φ15mm-220mm
  • Square Tube Length: 15*15mm-150*150mm
  • Passed CE/FDA/ETL certifications
  • 2 Year Warranty
  • 24 / 7 / 365 Technical Support

Introduction

The Laser bevel tube cutting machine has superior performance, which can realize the bevel cutting of the pipe within the range of ±45°. It is equipped with 3D laser cutting head, which can easily cut H steel, I-beam, angle steel, channel steel and other profiles, as well as drop-shaped and concave shaped tubes. Compared with domestic pipe cutting machines of the same level, the processing range expand by 12%.

Technical Parameters of Bevel Tube Fiber Laser Cutting Machine  6020GT

Model Bevel Tube Fiber Laser Cutting Machine
Pipe Processing Range  6000mm* φ15~220mm
(Square tube: 15*15~150*150mm)
Laser Power 1000W/1500W/2000W/3000W/4000W/6000W
Maximum Speed 100m/min
Maximum Rotational Speed  100r/min
Maximum Load Weight 150KG
Z -axis Travel 220mm
X/Y Axis positioning accuracy ±0.05mm
X/Y Axis repeated positioning accuracy ±0.02mm
Maximum Acceleration 0.8G
Angle of Processing Bevel ±45°
Maximum Single Tube Weight 150kg

Advantages of Bevel Tube Fiber Laser Cutting Machine 6020GT

  1. One-Time Molding
  • Completing v, x, y and other bevels at one time.
  1. High Efficiency
  • Greatly improving efficiency, ensuring quality, and saving resources.
  1. ±45° Flexible Cutting
  • Realizing bevel cutting of the workpiece in the range of 0°-45°.
  1. Reducing Welding Difficulty
  • Realizing zero-clearance welding, which reduces welding difficulty
  1. Wide Processing Range
  • Round Tube Diameter:Φ15mm-220mm
  • Square Tube Length:15*15mm-150*150mm
  1. Various Tube Shapes
  • Tube Shape: Round tube, square tube, rectangular tube, oval tube, angle steel, channel steel, H-beam, I-beam.

Main Configuration of Bevel Tube Fiber Laser Cutting Machine 6020GT

1.3D Laser Cutting Head

  • It is equipped with 3D laser cutting head, which can easily cut H steel, I-beam, angle steel, channel steel and other profiles, as well as drop-shaped and concave shaped tubes.
  • Break through the conventional 0° cutting, can realize the maximum angle of 45° oblique cutting.

2.Intelligent Clamping System

  • Fast clamping speed and great dynamic performance
  • Improving material utilization ratio.

3.Tubepro Tube Cutting Software + Tubest Nesting Software

  • It is equipped with FSCUT5000Apipe cutting system, which Supports high-precision and high-efficiency cutting of square tubes, round tubes, racetrack-shaped and oval-shaped stretched tubes, as well as angle steel, channel steel, I-shaped steel and other special-shaped steels.

Whats the Industry Application of Bevel Tube Fiber Laser Cutting Machine 6020GT

Bevel Tube Fiber Laser Cutting Machine SF6020GT is specialized for sheet metal processing, machinery manufacturing, auto parts manufacturing, electrical manufacturing, elevator manufacturing, petroleum machinery, food machinery, decorative advertising, etc.

What does the Bevel Tube Fiber Laser Cutting Machine SF6020GT cut?

Carbon Steel, Stainless Steel, Aluminum Alloy, Brass, Copper, Galvanized Sheet, Silicon Steel Sheet, Electrolytic Sheet, Titanium Alloy, Manganese Alloy, etc.

Cutting material and thickness in millimeters (mm)

Material 1000W 1500w 2000w 3000w 4000W 6000W
Carbon steel(mm) 1-10 1-10 1-10 1-16 1-18 1-18
Stainless steel(mm) 1-5 1-6 1-6 1-8 1-12 1-12
Aluminum (mm)  1-4 1-6 1-8 1-8

Cutting material and thickness in inches (inch)

Material 1000W 1500w 2000w 3000w 4000W 6000W
Carbon steel(inch) 0.039-0.393 0.039-0.393 0.039-0.393 0.039-0.629 0.039-0.708 0.039-0.708
Stainless steel(inch) 0.039-0.196 0.039-0.236 0.039-0.236 0.039-0.314 0.039-0.472 0.039-0.472
Aluminum (inch) 0.039-0.157 0.039-0.236 0.039-0.314 0.039-0.314



Five Star Fast Service System

1.  High efficiency

  • 24 hours a day (mainly for international), 7 days a week, 365 days a year at any time to receive repair calls;
  • Within 10 minutes, technical engineers will consult, fix maintenance plan in one hour, and send engineers in one working day.

2. After-sale service

  • The seller provides one time free installation and training in buyer’s factory. Seller pays for the airplane tickets and salary for engineers, buyer should provide accommodation and food to engineers.
  • The seller will provide technical guide’s e-mail, telephone, WeChat, WhatsApp and so on.
  • The seller should pay for the travel expense if local service needed within warranty time.

3. Warranty

  • The warranty of laser source is 2 years.
  • The warranty of the machine is 2 years (main spare parts), except for the consumable parts such as ceramic ring, focus lens, nozzle etc. Warranty counts from the date marked on the label of the laser source and machine.
  • Except the damage artificially, seller is responsible for offering the fittings free of charge during the warranty period.

4. Worry-free

  • Pre-sale service: theoretical + practical operation training, self-diagnosis training for common faults, guidance for quick repair of difficult faults, and warning of matters needing attention in use;
  • Regular service: regular maintenance reminder, regular door-to-door service, regular promotional activities;
  • Value-added services: equipment software and hardware upgrading services, financial leasing services, delayed warranty service.

5. Field Service

Our branches in United States, Germany, India, Pakistan, Serbia provide localized services and technical support for global customers.
