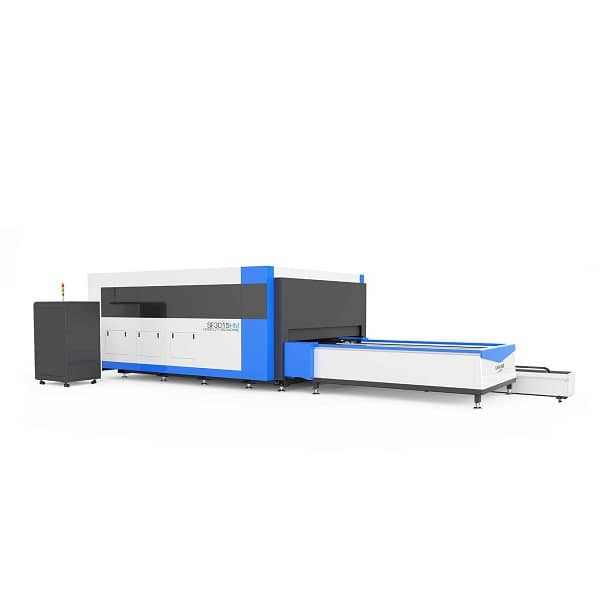

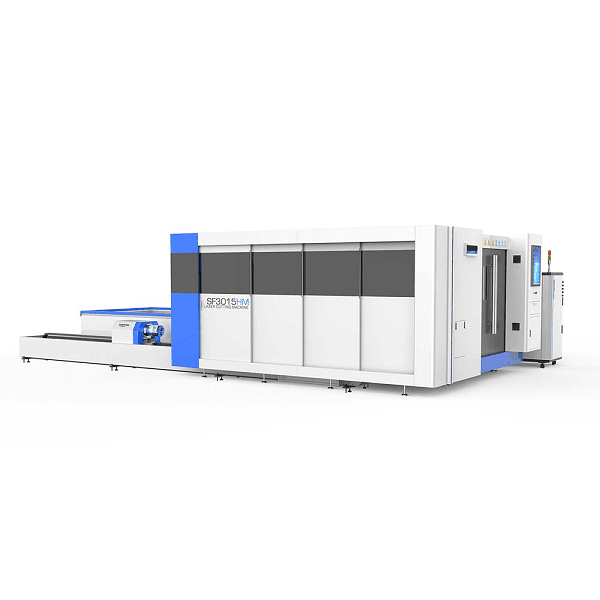

Fully Enclosed Metal Tube And Plate Fiber Laser Cutting Machine 1.5KW to 36KW 3015HM

Product in stock

Price

$0.00

Loading Updating cart...

Fully Enclosed Metal Tube And Plate Fiber Laser Cutting Machine 1.5KW to 36KW 3015HM

Product Description

Fully Enclosed Metal Tube And Plate Fiber Laser Cutting Machine - Contact us for the Price!

847-984-0882  /  automationtecinc@yahoo.com

  • Power: 1,500 – 36,000 watts range (1.5kW-36kW)
  • Passed CE/FDA/ETL certifications
  • 2 Year Warranty
  • 24 / 7 / 365 Technical Support

Introduction

The 3015HM is like our previous model 3015M fiber laser metal sheet and tube cutter, but this one is fully enclosed. It’s fully enclosed to protect the environment and limit the amount of dust and residue laser machines can produce. This machine can go up to 36kW or 36,000 watts. The pipe cutting length can be selected with 3 or 6 meters , and the software also can be chosen. The fully enclosed laser cutting machine passed CE/FDA/ETL certifications.

Technical Parameters

Model
Working Area(mm) 3000 * 1500/4000* 2000 / 6000* 2000/​6000* 2500/8000* 2500
X-axis Travel 1500mm/2000mm/2500mm
Y -axis Travel 3000mm/4000mm/6000mm/8000mm
Laser Power 1.5kw/2kw/3.3kw/4kw/6kw/8kw/12kw/30kw/36kw
Maximum velocity of movement 130m/min
X/Y Axis positioning accuracy ±0.05mm/m
X/Y Axis repeated positioning accuracy ± 0.02mm

Cutting material and thickness

Material 1500w 2000w 3300w 4000w 6000w 8000w 10000w 12000w 15000w
Carbon steel(mm) 0.4-16 0.4-18 0.4-20 0.4-25 0.4-30 0.4-30 0.4-40 0.4-50 0.4-50
Stainless steel(mm) 0.4-6 0.4-8 0.4-12 0.4-12 0.4-16 0.4-30 0.4-40 0.4-50 0.4-50
Brass (mm) 0.4-5 0.4-6 0.4-8 0.4-8 0.4-8 0.4-16 0.4-20 0.4-20 0.4-20
Aluminum (mm) 0.4-6 0.4-8 0.4-10 0.4-12 0.4-12 0.4-30 0.4-40 0.4-50 0.4-50
Round tube(mm) 20-220
Square tube(mm) 14-160

Product Features

Looks simple, full closed, with double table, but it’s much more than that:
1) It is real full closed, with up and down door;
2) It is plate welding bed, with high temperature heat treatment, no deformation for 20 years;
3) It is graphite anti-burning body, in that it can match higher power over 3000W;
4) It has more dust and smoke exhaust partition, so that there will be almost no smoke when cutting;
5) It is pneumatic chuck clamping, which can save much of your time;
6) It can be with more options, please contact us for providing you the best solution.
