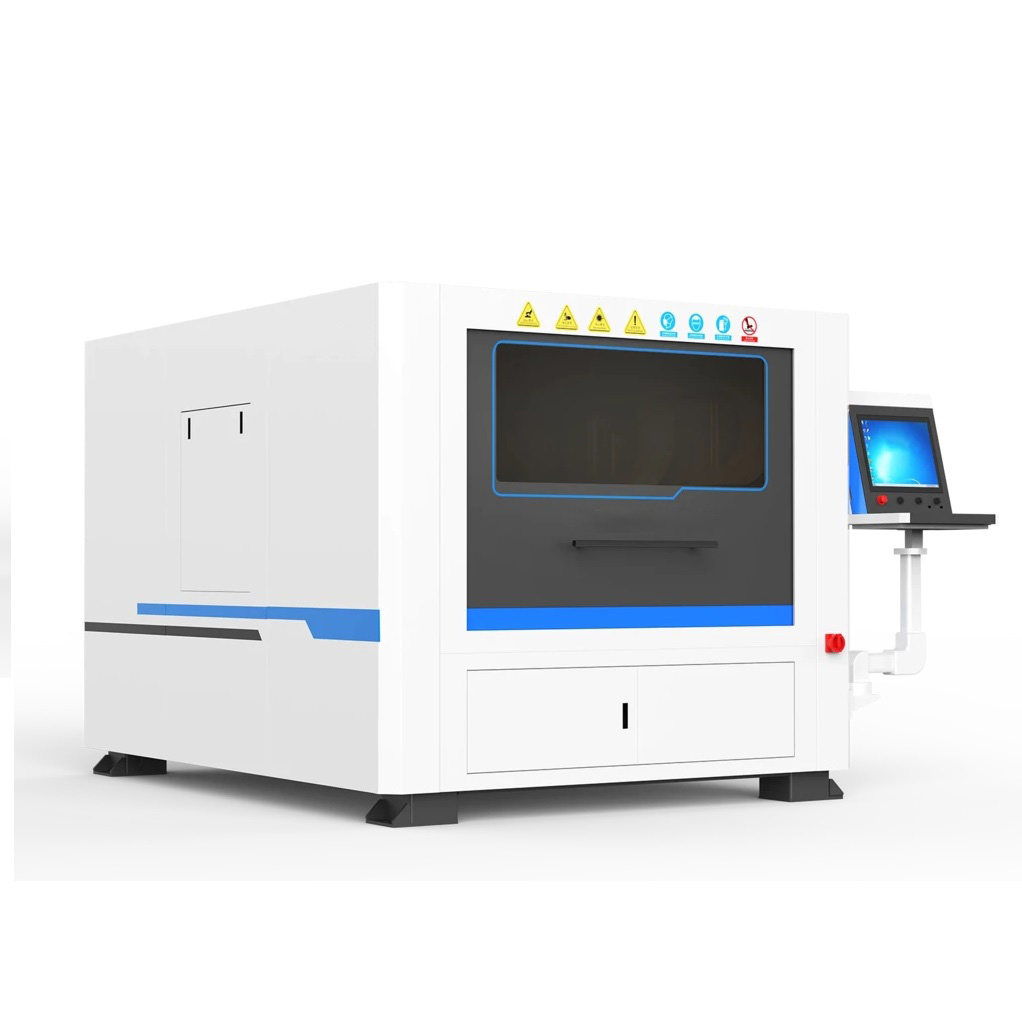

4′ X 4′ FIBER LASER METAL SHEET CUTTER 1000 W, 2000W, 3000W, Call 847 984 0882

Product in stock

Price

$0.00

Loading Updating cart...

4′ X 4′ FIBER LASER METAL SHEET CUTTER 1000 W, 2000W, 3000W, Call 847 984 0882

Product Description

Pls call us at 847-984-0882 for any question

1000 W:  Carbon Steel: Max 10 mm,  S. Steel: Max 3mm, Aluminum: Max 2 mm, Brass: Max 2 mm

1500 W:  Carbon Steel: Max 12mm,  S. Steel: Max 5 mm, Aluminum: Max 4 mm, Brass: Max 2 mm

2000 W: Carbon Steel: Max 14mm,  S. Steel: Max 7 mm, Aluminum: Max 6 mm, Brass: Max 4 mm

Machine with 3000 W laser Power will have high Price

1. Working Area 51" x 51 "  or 5 ft * 10 ft

2.1000W/2000W/3000W/4000W Raycus Laser Source

3.Raytools automatic focus laser head

4.Exchange working tables

5.Cpycut and Cpytube software

6.CWFL-4000 water chiller

7.Nest software if you need tube cutter

8.Pneumatic Control: SMC or Airtac

9. Enclosure

10.Electrical Element: Schneider

11.Air blower

12.Voltage stabilizer

13.Transformer 220 to 380VAC 3 phase

14. 6 meters pneumatic tube cutter(Optional)

15. Dust collector

Specification:

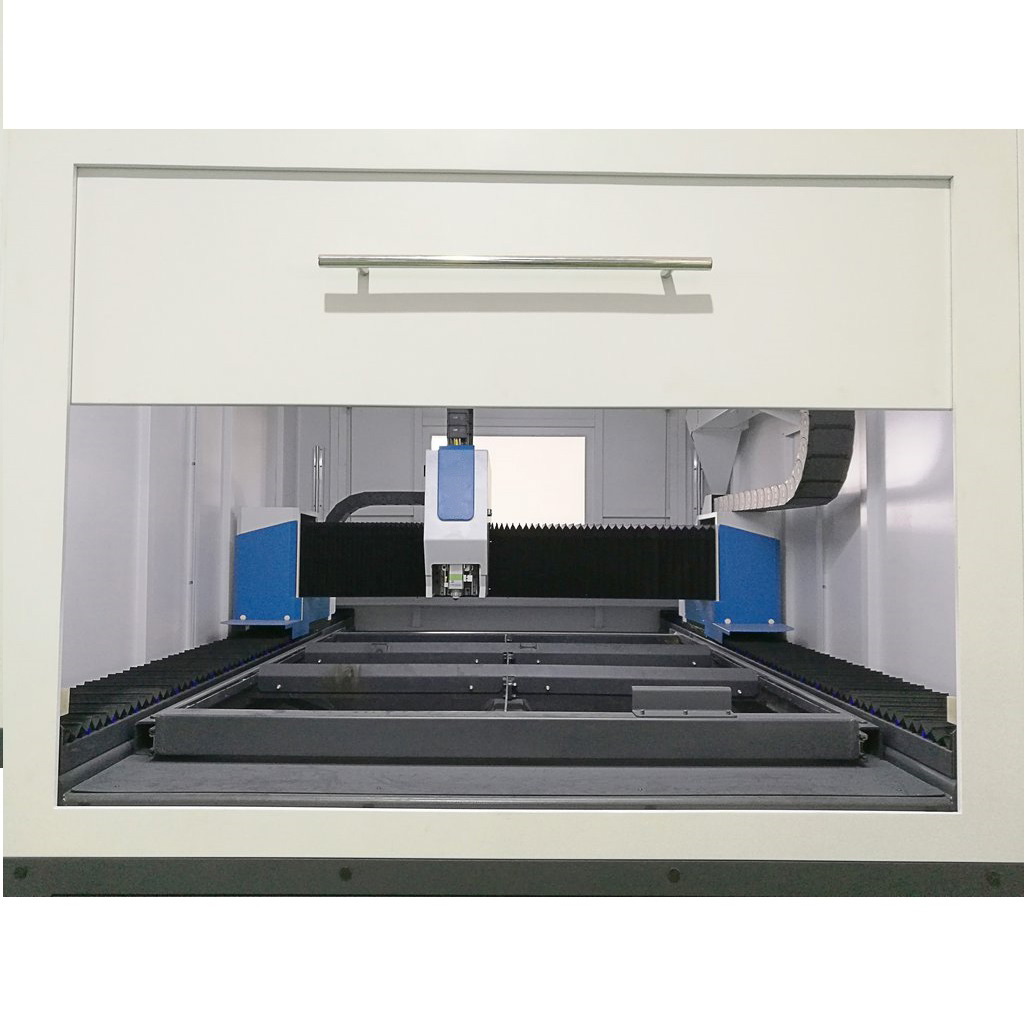

  • Working Area:  (1300 mm x 1300 mm) 51" x 51 "
  • Z-axis Travel: 4.7" (120 mm)
  • Continuous Wave fiber laser, 1.07 um wavelength
  • Laser Wattage:   1000 W/ 1500 W/ 2000 W/ 3000 W
  • Beam Quality: <0.373 mrad
  • Positioning Accuracy: <= 0.05 mm/m
  • Max. no load speed: 3200 inch/min (81m/min)
  • Dimension Tolerance: 0.05mm
  • Positioning Tolerance: 0.02mm
  • Machine Power Supply: Three Phase 208V, 240V or 480V
  • Power consumption: 10-30 kW (various by laser wattage)
  • Dedicated USA technical support from qualified technicians and engineers
  • Gross weight: 5,500 lbs
  • Air-Assist: Oxygen or Nitrogen
  • Driving System: Servo Motors XYZ Servo Motors: Schneider or Delta, Y 2x850W, X 1x750W, Z 1x400W
  • Unparalleled versatility for cutting various metals, including low carbon steels, stainless steels, galvanized sheets, as well as some high reflective metals, such as aluminum
  • Long Durability (Cast Aluminum Beam, High Temperature Annealing Solid Machine Bed)
  • Fully Protected Enclosure
  • Laser fully contained in fiber, no need for regular beam alignment

One Year Warranty

Downloads:

Laser Mental Cutter Wiring Diagram (217 downloads)
