Custom Fiber Laser Cutting Service
Product in stock
Price
$10.00
Custom Fiber Laser Cutting Service
Product Description
Fiber Laser Cutting Service
(949)690-9095 / automationtechinc@yahoo.com
Our 2KW fiber laser can cut up to 1/2"or 16mm carbon steel, 1/4" or 6mm stainless, 1/8" or 4mm aluminum, and 0.1'' or 3mm brass.
We are able to achieve roughly ±0.003'' accuracy for large production runs and for smaller high precision needs we can achieve ±0.001'' accuracy.
We can also do light engravings for marking.
Our shop is located in Streamwood, IL. Bring or ship your material to us, provide the DXF cutting file, we can cut for you!

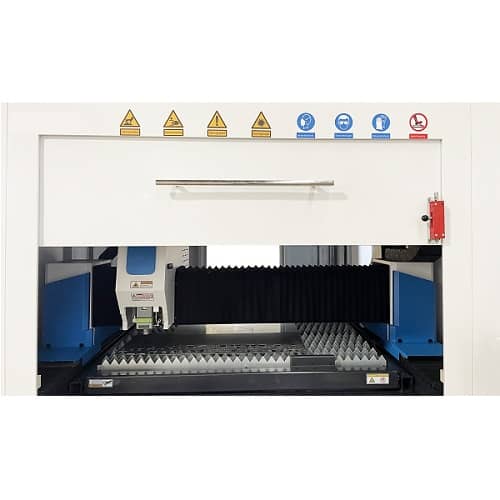

Technical Parameters of the Machine
| Model | SF1313G fiber laser cutter |
| Working Area(mm) | 1300 * 1300 |
| X-axis Travel | 1300mm |
| Y -axis Travel | 1300mm |
| Z -axis Travel | 120mm |
| Laser Power | 2000W |
| Maximum velocity of movement | 80m/min |
| X/Y Axis positioning accuracy | ±0.05mm/m |
| X/Y Axis repeated positioning accuracy | ± 0.02mm |
Application Materials
Carbon steel, stainless steel, aluminum alloy, brass, copper, galvanized steel, silicon steel plate, electrolytic plate, titanium alloy, manganese alloy.
