Product Description

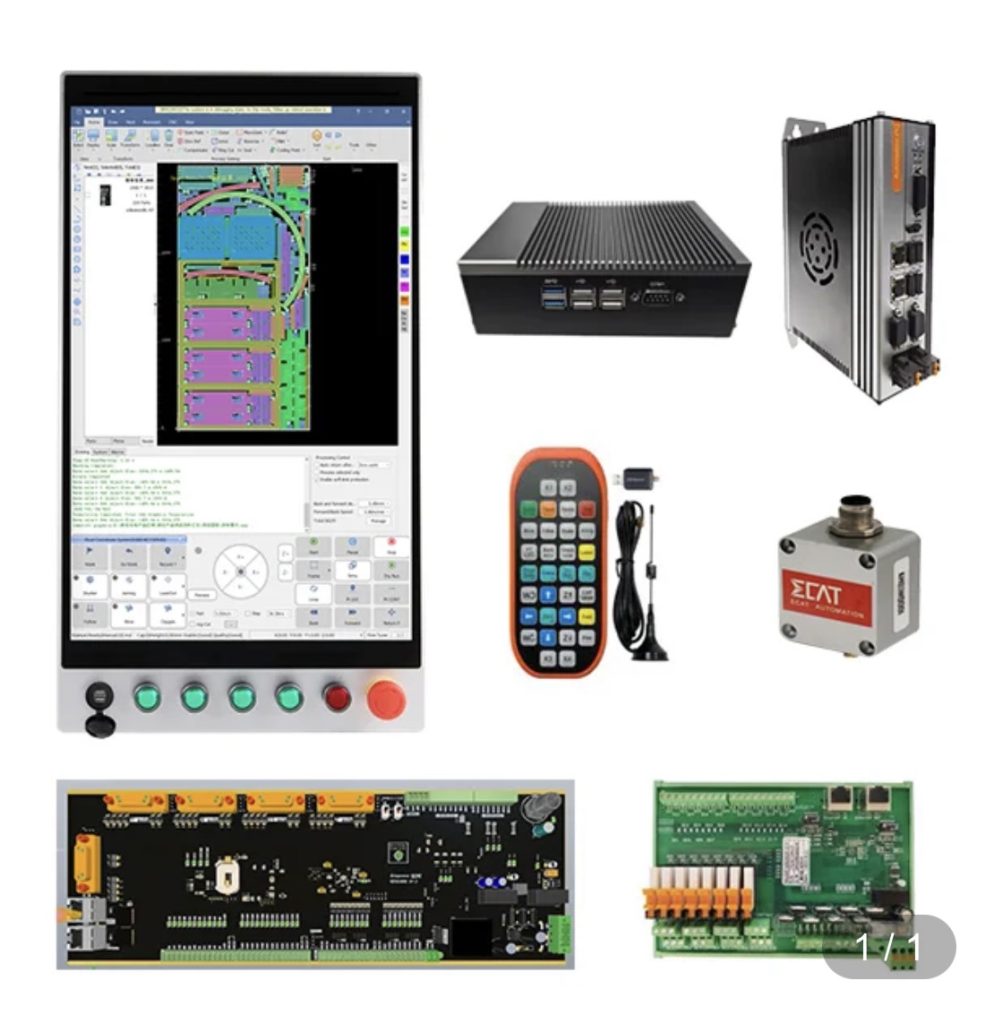

XC3000S EtherCAT Motion Control System

Features:

• Process database can be expanded as clients require.
• Fly cut, down jump, compensate, lead, micro-joint,  pre-pierce, multilevel pierce and film cut etc…
• Auto FindEdge, manual FindEdge,  auto sort and break point cut, etc…
• Cooling point and triangle cut.
• Auto sort: auto transferred to system recognized format, auto sorted  and generate to NC or PART files.
• Compatible to various lasers.
• Compatible to processing by manual G code modification
• Communication: EtherCAT protocol control with real-time refresh cycle 1ms.
• Accuracy: path 0.005mm, positioning 0.001mm, repeated positioning 0.002mm.
• Speed: max. acceleration 3G, max. dry motion 250m/min.
• Safety: overload protection to axis moment, real-time monitoring to axis moment to stop and upload servo alarm.
• FindEdge: Auto FindEdge and manual FindEdge (Auto FindEdge can turn angle automatically by detecting slight angle deviation of metal material).
• Alarm: alarm log export to give reference to operator.
• Friendly maintenance: auto calibration and break point mode.
• Commissioning: close-loop arc detection feature to save commissioning time. Torque monitoring feature to detect the status of mechanical meshing if it is too tight or loose.
