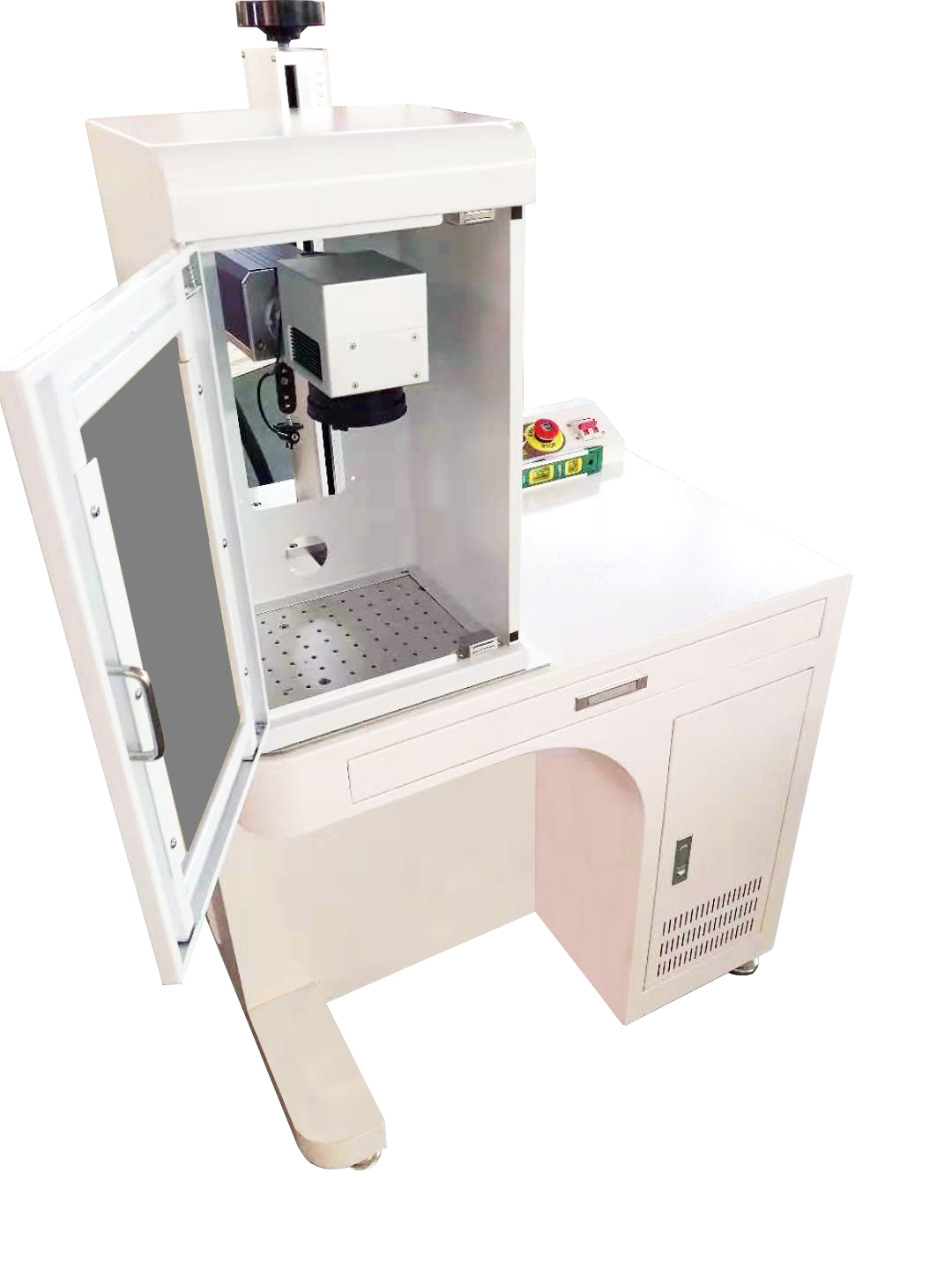

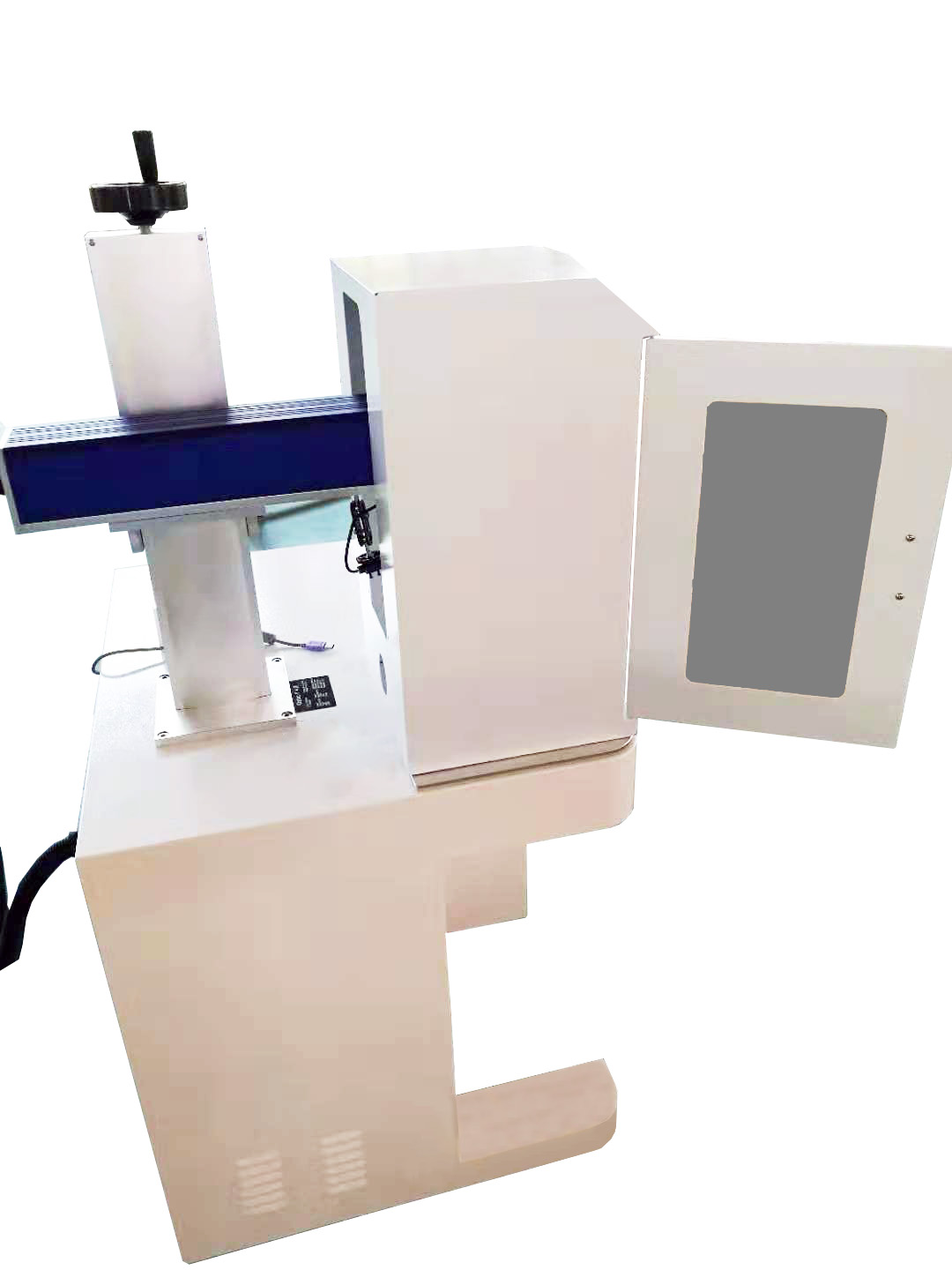

30W Fiber Laser Engraver, Fiber Marking Machine with Protective Cover

Product in stock

Price

$6,399.00

Loading Updating cart...

30W Fiber Laser Engraver, Fiber Marking Machine with Protective Cover

Product Description

Fiber Laser ENGRAVER Machine

Software are all included

if you need a Rotary Device, add $500

This type laser marker suitable for Gold, Silver, Diamond, Sanitary Equipment, Foods Packing, Tobacco Label, Beer label, Drink Label, Medicine Packing, Medical Equipment, Glasses and Clock, Auto Parts,Plastic&Paper Materials, The Electron,Hardware which with high request for depth,smooth, accuracy such as horologe, Mould, bitmap marking etc.

The machine come with a user-friendly software. It is compatible to CorelDraw, AutoCad, and Photoshop if you need handle more complicated art work. It's an excellent candidate for bar code printing and stainless steel engraving.

(1):

Raycus fiber laser module, life time is more than 100,000 hours for 30W fiber laser Machine, 150*150mm

(2):  Scanning Mirrors;

(3):  NORTH-SMITH field lens from America;

(4):  Control system: JСZ, software: EzCad, WinXP, Win7, Win8 , Win10 , 32 /64 bits

Systems are supported;

(5): Easy-focusing device;

(6): Air Cooling;

(7)  Rotary Device, add $500 (optional)

Packing information of  fiber laser marking machine :

Machine Size: 60x 22x52cm

Package Size: 91x83x163 cm

Net Weight: 30kg around

Gross Weight: 50kgs

 Main specification:

Laser Source Fiber Laser
Output Power 30W
Wavelength 1060nm
Beam Quality < 2
Repeat Frequency 10khz--- 100khz
Pulse Energy 2 mJ
Beam Divergence -0.3 to +0.3mrad
Laser Class IV
Resolution 18μ
Repeatability 50μ
Marking Scope 110*110mm/150*150mm/175*175mm/300*300mm(optional)
Linear Speed 800 character/ s
Marking Linear Speed ≤12,000mm/s
Marking Depth 0.01 to 0.5mm according material
Min. Line Width 0.012mm
Min. Character Size 0.15mm
Repeat Accuracy ±0.003mm
Input Power 0.5kw
Electrical Source 110V 50/60Hz /4A

Fiber Laser Software Manual:

Fiber Laser Software Manual (474)
