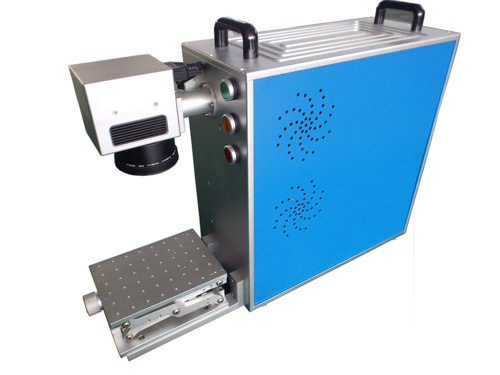

Portable Fiber Laser ENGRAVER, Fiber Marking Machine, 30W

Product in stock

Price

$4,990.00

Loading Updating cart...

Portable Fiber Laser ENGRAVER, Fiber Marking Machine, 30W

Product Description

Fiber Laser ENGRAVER Machine,  200*200 mm Area for 30W

Software are all included works on 32bits or 64 Bits Computer

We use all authentic parts

if you need a Rotary Device, add $500

The machine come with a user-friendly software. It is compatible to CorelDraw, AutoCad, and Photoshop if you need handle more complicated art work. It's an excellent candidate for bar code printing and stainless steel engraving.

(1):  Raycus fiber laser module, life time is more than 100,000 hours for 30W and 50W fiber laser Machine,  200*200mm

 (2):  Scanning Mirrors;

(3):  NORTH-SMITH field lens from America;

(4):  Control system: JСZ, software: EzCad, WinXP, Win7, Win 8 , Win 10 , 32 or 64 bits

Systems are supported;

(5): Easy-focusing device;

(6): Air Cooling;

 (7) if you  need  300*300mm working area, we can make it for you too by changing field lens



 Main specification:

Laser Source Fiber Laser
Output Power  30W
Wavelength 1060nm
Beam Quality < 2
Repeat Frequency 10khz--- 100khz
Pulse Energy 2 mJ
Beam Divergence -0.3 to +0.3mrad
Laser Class IV
Resolution 18μ
Repeatability 50μ
Marking Scope 150*150mm
Linear Speed 800 character/ s
Marking Linear Speed ≤12,000mm/s
Marking Depth 0.01 to 0.5mm according material
Min. Line Width 0.012mm
Min. Character Size 0.15mm
Repeat Accuracy ±0.003mm
Input Power 0.5kw
Electrical Source 110V 50/60Hz /4A

Fiber Laser Software Manual:

Fiber Laser Software Manual (474)

This type laser marker suitable for Gold, Silver, Diamond, Sanitary Equipment, Foods Packing, Tobacco Label, Beer label, Drink Label, Medicine Packing, Medical Equipment, Glasses and Clock, Auto Parts,Plastic&Paper Materials, The Electron,Hardware which with high request for depth,smooth, accuracy such as horologe, Mould, bitmap marking etc.
