C82 – Dual Port Multifunction Board

Product in stock

This card has been designed to provide a flexible interface and functions to your computer projects, by using the parallel port control software. This board comes with sockets that allow direct connection of a Smooth Steeper Board (from Warp9 Tech Design Inc - not required).


from $158.00

Loading Updating cart...

C82 – Dual Port Multifunction Board

Product Description

Dual Port Multifunction CNC Board (C82 + C78 RJ45 CONNECTION BOARD, Ethernet Smooth Stepper board is optional)

The C82 supplies full access to the power of the Ethernet Smooth Stepper board.

Ethernet SmoothStepper Motion Control Board for Mach3 and Mach4, 6 Axis (Without Cable)

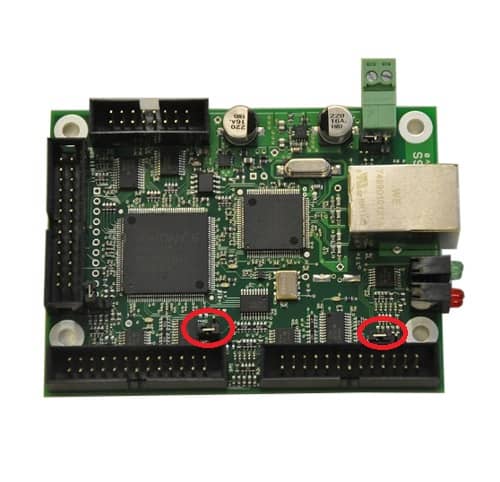

Please set up the jumper on the ESS board as shown in the following picture



  • Designed for ESS AND ETHER-MACH motion controller.
  • Built-in PWM-Based Speed Control and Two Built-in Electromechanical Relays with NO and NC positions for spindle control.
  • The system monitors:
    • E-Stop
    • Safety Charge Pump.
    • VFD Fault.
    • Driver Fault.
  • Discrete Inputs and Outputs can be using with +5vdc TTL logic or 10-30vdc Logic.
  • Electromechanical Relay with NO and NC positions for general purpose (Port_2 16 or 17, jumper-selectable).
  • Microcontroller based SCHP.
  • Optoisolated inputs. Can be powered with a voltage between +10 and +30VDC.
  • Status LEDs on all input and Output connections.
  • DIN Rail mountable.
  • Pluggable Screw-On Terminals.
  • It is compatible with family of C34 connector boards that allow quickly connecting to popular drives connecting not just the step and direction signals, but also the fault and enable signals.
C82 Rev. 1 User Manual V1

Mach4 Plugin Installation Video

Mach4 ESS Plugin Installer V2.2. Installl ESS Plugin and configures the Plugin and Mach4 for the C62, C82 and C32 boards. ESS M4 Plugin Ver.210
Pendant for ESS + Mach4. ESS M4 Plugin Ver.210
Wiring C78+Gecko G320
Wiring for C82 with Huanyang VFD
Wiring for C82 with minarik VFD
Wiring for C82 with WJ200 VFD
Wiring for C82 with IMT VFD

C82 MACH4 Profile (90 downloads)
