C94 – Multifunction Board

Product in stock

Price

from $108.00

Loading Updating cart...

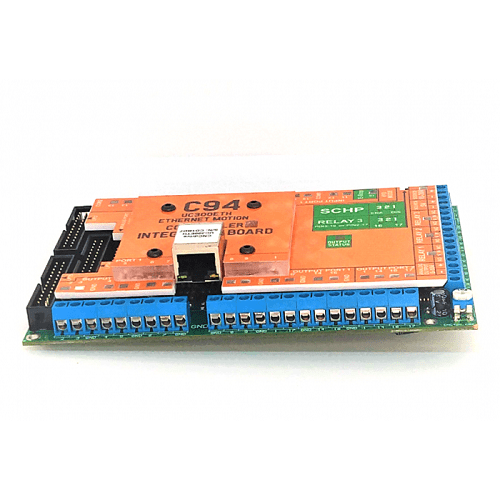

C94 – Multifunction Board

Product Description

The C94 is a High-Speed Motion Controller using an Ethernet connection with True Real-Time Functions. It supports Mach3/4 and UCCNC so it can be highly flexible.

If you need Din Rail Support for C94,   add $17.8

 Features

• Ships with the UC300ETH Motion Controller installed for $233(Optional).
• Emulates 5 Parallel Ports.
• 3 Expansion Ports for connecting additional breakout or relay boards.
• Two Analog Inputs and Two Outputs.
• Built-in PWM-Based Speed Control and Two Built-in Electromechanical
Relays with NO and NC positions for spindle control.
• The system monitors:
- E-Stop
- Safety Charge Pump.
• Electromechanical Relay with NO and NC positions for general purpose or tied to the Enable Signal (Port_2 16 or 17, jumper-selectable).
• Microcontroller based Safety Charge Pump (SCHP).
• Optoisolated inputs working at 5-24VDC.
• Uses a single 24VDC to power the system. It generates the isolated voltage for the spindle control circuit and +5vdc for circuits using TTL logic.
• Status LEDs on all Input and Output connections.
• DIN Rail mountable.
• Open Collector Outputs pins 1, 14, 16, 17 on port 2.
• Screw-On connections for all terminals.
• Status LEDs for enable.
• Available installers and configuration files that configure all the functions of the board.

Connect ANYTHING with Clean and Simple Connections

  • Steppers
  • VFD
  • Limits/Homes.
  • Vacuum
  • Probe
  • Coolant Pump.
  • etc...



UC300 Ethernet Motion Controller can be installed ( Not Included), you can add it

UC300 Ethernet Motion Controller

Add Mach3 software

Fully Licensed Mach3 (Authorized), Email you license file

Add Mach4 software

Fully Licensed versions of Mach4, Email you the license.

Manual:

C94 User Manual (20 downloads)

Drawings and CAD Files:

C94 Solid Model (5 downloads)

Software, Installer, and Configuration Files:

Software Mill Mach4 Ver Beta3.0.0.0 ( C76 - C94 ) (13 downloads)

UCxx Utility Software (5 downloads)

C94 XML File (29 downloads)
