C10 Bidirectional Breakout Board, 6 Axis

Product in stock

The C10 breakout board provides a DB25 to to IC buffered control signals for CNC applications. With terminal blocks for the standard 3 or 4 axis parallel port controlled machine.

Price

$23.00

Loading Updating cart...

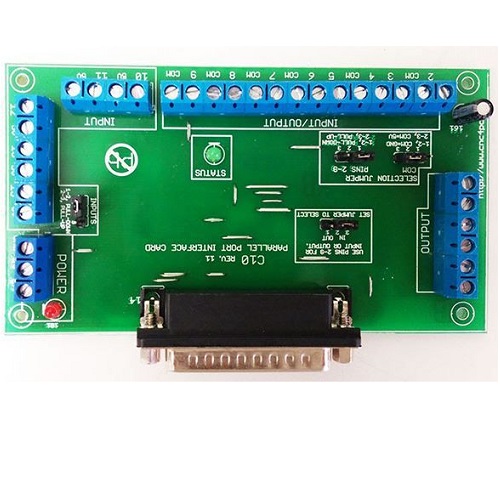

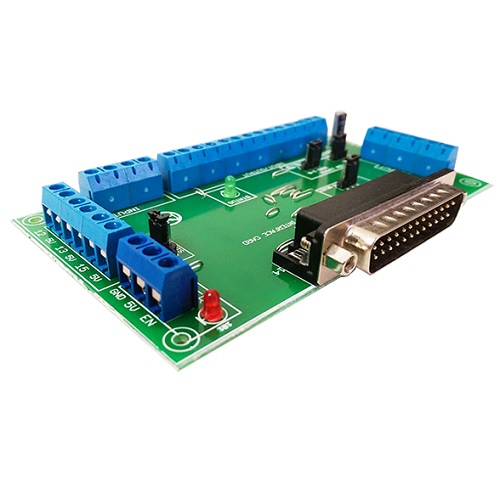

C10 Bidirectional Breakout Board, 6 Axis

Product Description

FEATURES:

EEE 1284 Standard compatible.
PULL-UP or PULL-DOWN selection for inputs.
Buffered inputs and outputs.
Bidirectional pins 2-9.
Output pins 1, 2, 3, 4, 5, 6, 7, 8, 9, 14, 16, 17. Or 1, 14, 16, 17.
Input pins 10, 11, 12, 13, 15. Or 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 15.
Input and output pins with close by ground or +5vdc connections
Input pins 10, 11, 12, 13, 15.
Input and output pins with close by ground or +5vdc connections
External Enable Pin (EN).
Works directly with popular CNC hardware and software.
All TTL 5VDC signals.
Screw-On connections for all terminals.
Status LEDs for enable.

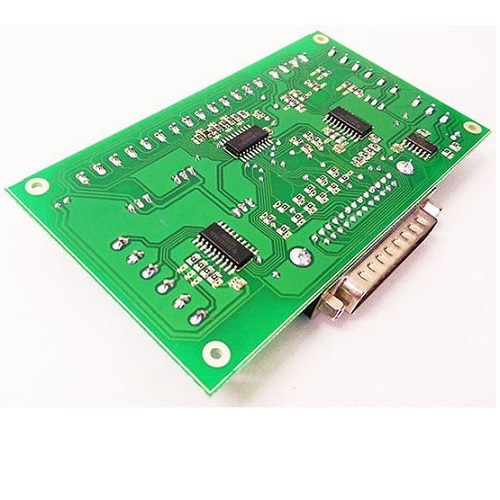

Please note that we have currently updated the design of the board. We use the exact same circuits, just updated to newer and smaller components, updated the manufacturing process to SMD and added and status LED, so now it has a green LED that will light when outputs are enabled. Note that on the new design we updated the connector to female. If a gender genger is required, please request it.

Note:

We will use New Version to replace in the kit



File Type Document Name
Wiring Sample Wiring Limits
Wiring Sample Wiring a THC / CAP04
Wiring Sample Basic Wiring Guide for Stepper Drivers
Wiring Sample Wiring a MPG
Product Manual User Manual of C10R11_V1
Wiring Sample Wiring Guide
Wiring Sample Wiring E-Stop
Product Manual C10R10_User_Manual
Wiring Sample Wiring +24vdc limit switches
File XML Sample XML Configuration File (Right Click/Save As)
