C32S Dual Port Modular CNC Breakout Board (RJ45)
Product in stock

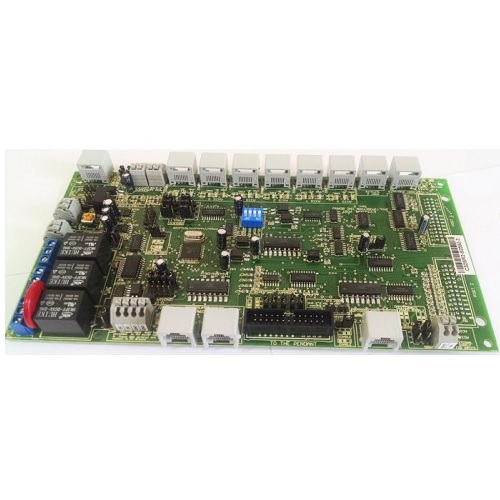

The c23 This card has been designed to provide a flexible and easy connections using (RJ45 and Networks Cables) interface to drivers and function boards. This board comes with sockets that allow direct connection of a Smooth Steeper Board (from Warp9 Tech Design Inc) or DB25 headers. It also serves as an interface board for the pendants provided by CNC4PC (MPG2, MPG4, and MPG8).
Price
$186.00
C32S Dual Port Modular CNC Breakout Board (RJ45)
Product Description
Dual Port Multifunction CNC Board (RJ45)
FEATURES
FEATURES
- Connects directly to the Smooth Stepper (from Warp9).
- IEEE 1284 Standard compatible
- Built-in PWM-Based Speed Control.
- Built-in Isolated DC-DC converter for analog output voltage.
- Two Built-in Electro Mechanical Relays with NO and NC positions for spindle control.
- RJ45 Connector for Easy VFD Connection.
- Monitors E-Stop, Safety Charge Pump and Drivers.
- Monitors VFD alarm signal.
- Enables and disable the drivers.
- Electromechanical Relay with NO and NC positions for general purpose (Pin 2_16 or Pin 2_17, jumper-selectable).
- Microcontroller based SCHP.
- RJ45 connectors for all I/Os.
- Easy Connections with relay boards and speed control boards.
- Connects 4 and 6 axis pendants
- Opt-isolated inputs.
- Works with regular parallel ports.
- All TTL 5VDC signals.
- Buffered outputs.
- Status LEDs on all inputs and output connections.
- Works directly with popular CNC hardware and software.
- 34 inputs and outputs.
Documents and Download
Product Manual
- User Manual Size: (2.39 MB)
Software, Installers and Configuration Files
Software Mach4 Ether-Mach Ver2 Size: (4.76 MB) Software Mach4 Pokeys Ver2.0.1.1 Size: (4.16 MB) Software UCCNC Ver1 Size: (21.84 KB) XML C32S, C62 and ESS Size: (22.37 KB) Software Mach4 UC300ETH Ver1 Size: (1.71 MB) Installer for a Pendant using Mach4 and ESS. Size: (1.58 MB) Software Mach4 ESS Ver2.5 ( C82 - C25XP ) Size: (2.75 MB)
Wiring Information
Wiring Sample C32S, C62 with ESS Size: (167.82 KB) Wiring Sample C32S, C62 with UC300 Size: (150.98 KB) Wiring Sample C34_AD Rev1 with C32 Size: (734.98 KB) Wiring Sample C32 Rev5.4 with Dugong Drivers Size: (216.39 KB) Wiring Sample C32 Rev4 with Hitachi L100 VFD Size: (526.99 KB) Wiring Sample C32 Rev5 with Hitachi WJ200 VFD Size: (555.07 KB) Wiring Sample C32 Rev5 with Leeson VFD Size: (533.26 KB) Wiring Sample C32 Rev4 with VFD Huanyang Size: (504.24 KB) Wiring Sample C32 Rev4 with KBIC Speed Controller Size: (926.03 KB) Wiring Sample C32 Rev4 with KBIC Speed Controller Using the RJ45 Connector Size: (939.81 KB) Wiring Sample C32 Rev5.4 CAP04 THC Size: (1.16 MB) Wiring Sample C32S Rev2 with G320 Size: (1.75 MB)
Videos
- Instructions for Mach4 Plugin Installation Video
Go To Instructions for Mach4 Plugin Installation Video- Instructions for Rich Schaefer's CNC Masters Retrofit
Go To Instructions for Rich Schaefer's CNC Masters Retrofit
Instructions
Instructions for HAL Modifications for Spindle Speed Control Using PWM Size: (23.51 KB) Instructions for DIP Switch Configuration Size: (76.87 KB) Instructions for Mach4 Plugin Installation Size: (224.96 KB) Setting up a Pendant for Mach4 Size: (535.04 KB) Instructions for Setting up a Pendant on Mach4 using a Custom Screen. Size: (318.39 KB)
Old Documents
Pendant Plugin UCCNC for C22 Size: (75.43 KB)
