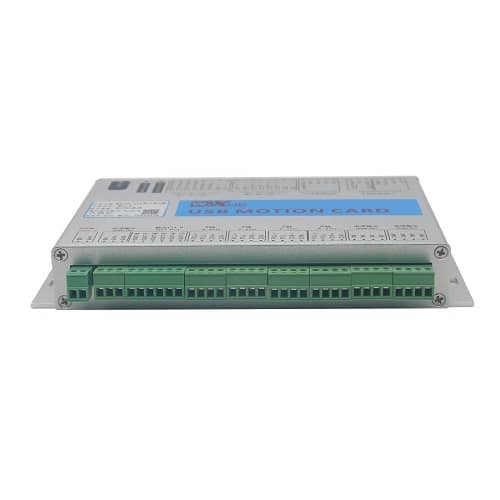

3/4 Axis CNC Mach3 USB Motion Control Card Breakout Board

Product in stock


from $169.00

Loading Updating cart...

3/4 Axis CNC Mach3 USB Motion Control Card Breakout Board

Product Description

- Fully support all Mach3 version
- Support save data when power off.
- Support spindle speed feedback
- Support 3 meter USB cable
- Supports 3-axis or 4-axis
- Maximum step-pulse frequency is 2000KHz. Status indicator LED can be useful to show the USB
- Connection, and working status by flashing.
- 16 general-purpose input, 8 output has speed function, the spindle actual speed Mach3
- Interface in real-time display
- All IO-port isolation, interference, stable performance
- Full support for USB hot-swappable, the card is Monitoring USB connection status at any time

Key feature:
1.Standard usb device and work at all windows with usb hot plug.
2.The card state is monitored.
3.Support 6 axis to motion at the same time.
4.Step Pulse frequency Up to 2000khz, support servo and step motor driver.
5.The usb state indication with led
6.All io is isolated, anti-noise and stable performance
7.Spindle control with PWM and step/pulse
8.Aluminum shell, shield the interference.
9.Speed index function.
10.Power off and continue function

Software installation:
- First, install Mach3 software to your PC.
- Second, copy your driver into Mach3. Check readme file in the CD.
- Check our wiring for reference, connect our card to your machine correctly.
- Connect your PC to our card by using network cable.
- After these steps, you can open your Mach3 software for operating.

Please take a look at Mach3 software parameters setting, steps per and so on in the printed manual of our packing box for reference.

Package List:
- 1 x MKX-V motion card
- 1 x Use wire
- 1 x Driver disk
- 1 x MACH3-USB trouble shooting
- 1 x MACH3 config and driver installation
- 1 x MKX –V user Manual
