Product Description

SWGP 5Axis Wireless MPG CNC Handwheel Pendant 100PPR for FANAC SIEMENS MITSUBISHI (without Emergency Stop)

This MPG could also be used in Spain(FAGOR), France NUM, Taiwan LNC, SYNTEC CNC system.

Applications:
- It is mainly for systems including FANAC, SIEMENS and MITSUBISHI. The parameters of our handwheel pendant varies to fit for different systems.
- It can also be applied to other systems, please offer detailed parameters of your original electronic handwheel to us so that we can help you match the right one. Thank you!

Features:
- 5-Axis manual pulse generator for wireless operation
- Wireless ISM frequency band 433MHZ
- 10DB transmitting power, -98DB receiving sensitivity, barrier-free distance 60 meters
- Anti-interference Design: Built for stable and reliable performance, enabling application of 32 sets of wireless handwheels in the same room, without affecting each other
- Low Power Consumption: It can last for 30 days for normal use

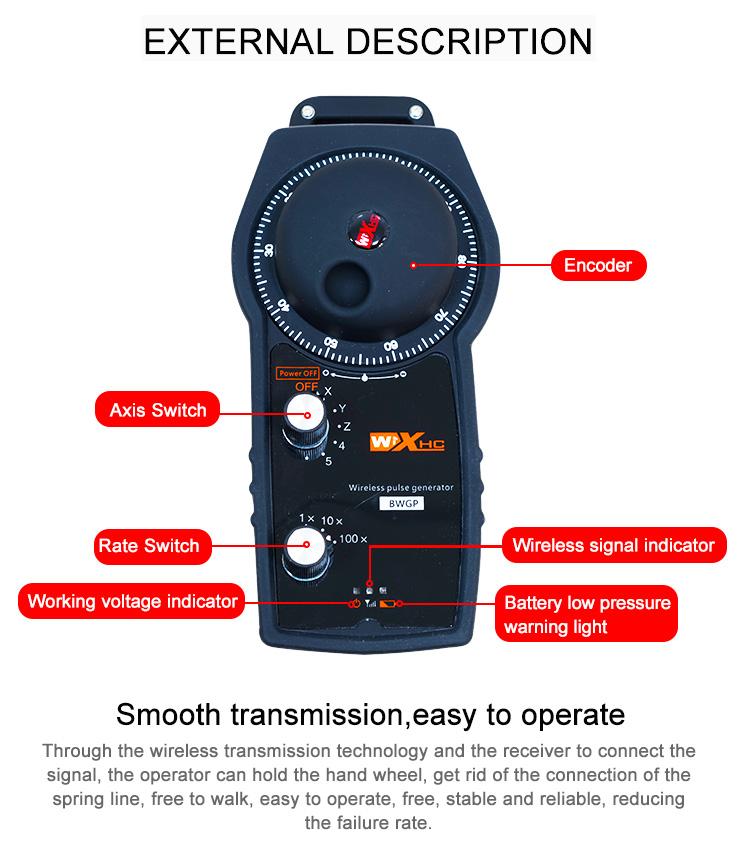

- With axis selection and magnification selection functions
- With alloy encoder, it works stably and reliably
- It can generate pulses for fast moving machine tools
- Waterproof buttons prevent it from oil and dust

Wireless Transmission Parameters:
- Communications Channel: ISM 422M
- Wireless Transmission Distance: 60m

DC Electric Parameters:
- Handwheel Working Voltage: 2.2V-3.3V
- Handwheel Average Working Current: <10mA
- Receiver Working Voltage: 5V, 12V, 24V
- Receiver Average Working Current: <260mA

Encoder Pulse Output Parameters:
- Encoder: 100PPR
- Pulse Signal Type: 5V Differential Signal or 12V Non-Differential Signal
- Pulse Signal Voltage: Support 5V, 12V

Axis Selection & Magnification Selection:
- Axis Selection Signal Output Way: Point to Point
- Magnification Signal Output Way: Point to Point

Handwheel Performance:
- Transmitting Power: 10DB
- Receiving Sensitivity: -98DB
- Support Axis: Max. 5-Axis
- Materials: ABS, PC, Alloy

Package Included:
- 1 x Wireless Handwheel
- 1 x Data Cable
- 1 x Receiver
- 1 x Bag of Hooks
- 1 x User Manual

Note:
- It is mainly for systems including FANAC, SIEMENS and MITSUBISHI. The parameters of our handwheel pendant varies to fit for different systems.
- Battery is not included in this package.
