CNC Handwheel MPG (Wireless ) for Mach3 Controller, 6 Axis ( X, Y, Z, A, B, C)

Product in stock

Price

$149.00

Loading Updating cart...

CNC Handwheel MPG (Wireless ) for Mach3 Controller, 6 Axis ( X, Y, Z, A, B, C)

Product Description

Description:

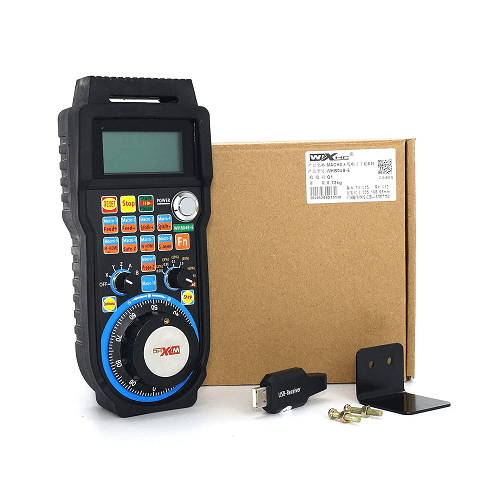

- Wireless USB MACH3 MPG 433MHZ Electronic Handwheel 6Axis CNC Mach3 hand wheel for CNC Router Machine
- Applied to a variety of CNC systems, suitable for the use of the industry are: engraving machine industry, engraving and milling machine industry, CNC lathe industry, laser cutting machine industry, flame cutting machine industry, plasma cutting machine industry, automation production control industry
- Radio frequency: 433 MHz, ISM, the Tx power is 10DB and the RX sensitivity is 98DB
- USB receiver 6 axes (X, Y, Z, A, B, C axis) with LCD display real-time display
- Support 128*64 dot matrix input
- Support 100PPR electronic hand wheel function.
- Support the 13 shortcut keys, the user is free to define the function
- Wireless transmission distance of 40 meters
- 64 channel frequency hopping transmission, strong anti-interference, stable and reliable; the channel gap is 1 MHz
- LCD Display: spindle speed value, processing feed rate value

Installation:
First you must install mach3 and then insert handle's usb drive. Then install the batteries to handle's cell box. (Batteries are NOT included in the package)
1. You should copy the ShuttlePro.dll to Mach3plugins directory;
2. M930.m1s is the probez file. You should copy the it to Mach3macrosMach3Mill directory
3. M999.m1s is the ref all home file. You should copy the it to Mach3macrosMach3Mill directory
4. M933 is go to zero work macro. You should copy the it to Mach3macrosMach3Mill directory
5. You could change the macro file M930.m1s, M990.m1s, m933 to satisfy your cnc system

Warning:

When you are using lhb04b,please note that:
when press fn key and other key, please release the fn key first. don't release the fn key and the other key at the same time!!!

Key Description

reset button stop button
Start/pause button Press with the key combination, Increased processing speed; Press the button alone, Function 1 output;
Press together with the key combination to decrease the feed rate: Single press function 2 output; Press with the key combination, Spindle speed increase; Press the button alone, Function 3 output;
Press with the key combination, Spindle speed reduction; Press the button alone, Function 4 output; Press with the key combination, Return to machine origin; Press the button alone, Function 5 output;
Press with the key combination, Back to Security Z; Press the button alone, Function 6 output; Press with the key combination, Return to workpiece origin; Press the button alone, Function 7 output;
Press with the key combination, Spindle switch; Press the button alone, Function 8 output; Press with the key combination, Knife; Press the button alone, Function 9 output;
Function 10 buttons Combination function button
Continuous button: Push the button, Handwheel enters continuous mode Step button: Push the button, The handwheel enters the step mode
OFF is to close the axis selection
X, AND, WITH, A,B,C: Axis controlled by gear shift
0.001-1.0:Step mode jog accuracy selection
2%-100%:Handwheel speed percentage in continuous mode

Download Manual:
6 Axis Handwheel Manual (94 downloads)

 Download new Driver:
6 Axis Handwheel MPG Drive (120 downloads)

One Year Warranty
