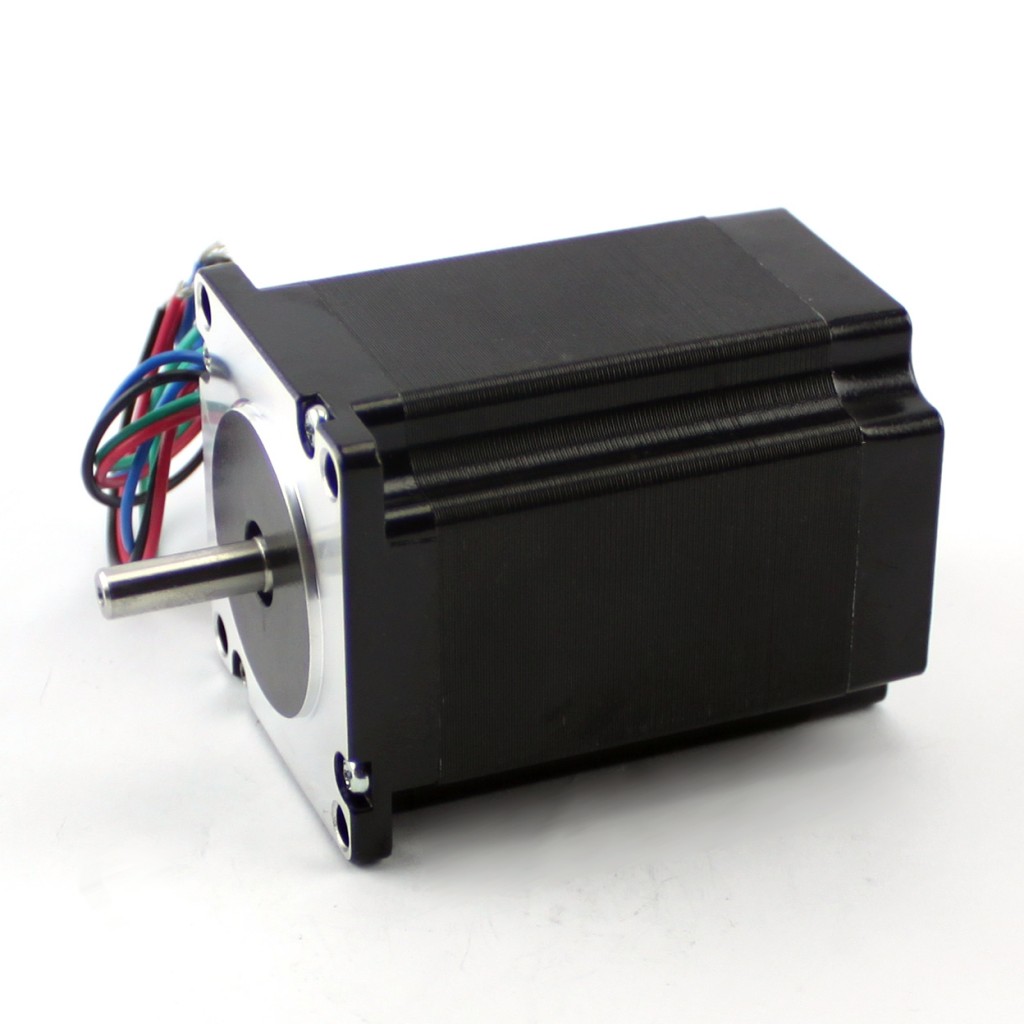

NEMA23 254 OZ/IN 3A 1/4″ SINGLE SHAFT STEPPER MOTOR 0.9 DEGREE/STEP (KL23H276-42-4AN)

Product in stock

Price

$33.95

Loading Updating cart...

NEMA23 254 OZ/IN 3A 1/4″ SINGLE SHAFT STEPPER MOTOR 0.9 DEGREE/STEP (KL23H276-42-4AN)

Product Description

Stepper Motor 0.9 Degree/step (KL23H276-42-4AN)

NEMA23

254 oz In.

1/4" Single Shaft

0.9° /400 Steps Per Rev.

4.2 Amps Current Per Phase ( Bipolar Parallel)

4-Wire

Bi-polar,

NEMA23 Frame

Voltage: 2.1 VDC

Phase Resistance(20°C): 0.5±10%Ω

Phase Inductance(1KHz): 2.3±20%mH

Rotor Inertia: 490g·cm2

Insulation Resistance: 100MΩ 500VDC

Insulation Class: B( 130°C)

Ambient Temperature: -20°C to 50°C

Motor Weight: Approx 1.15kg

Manual Download:

KL23H276-42-4AN (124 downloads)
