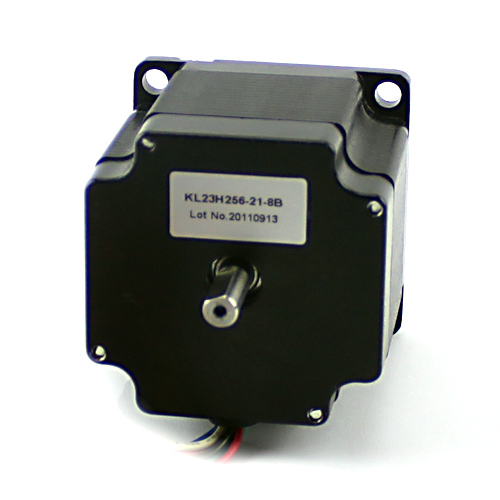

NEMA23 185oz/in 3A Stepper Motor ¼” Dual shaft (KL23H256-21-8B)
Product in stock
This 185oz/in NEMA23 stepper motor is well suited to medium sized motion control projects of all types.
Price
$27.95
$22.99
You save: $4.96! (17.75%)
NEMA23 185oz/in 3A Stepper Motor ¼” Dual shaft (KL23H256-21-8B)
Product Description
Stepper Motor (KL23H256-21-8B)
185 oz in
1.8° /200 Steps Per Rev.
¼” Dual shaft
3 Amps Current Per Phase ( Bipolar Parallel)
8-wire Bi-polar or unipolar,
NEMA 23 Frame
Bipolar Parallel:
A+: Blue and yellow
A- : Red and Green
B+ Brown and Orange
B-: Black and white
Stepper Driver to control
KL-5056 20-50VDC 5.6A Digital Bipolar Stepper Motor Driver -32 bit DSP Based
