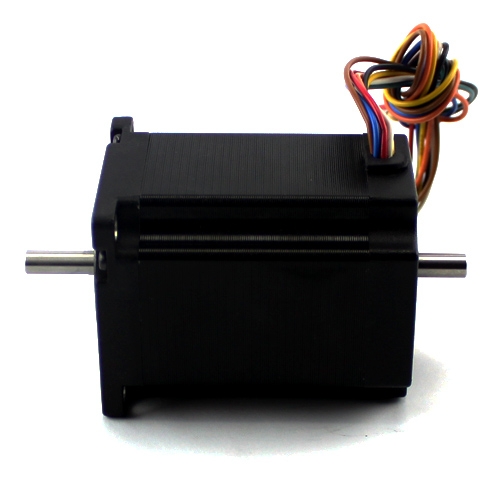

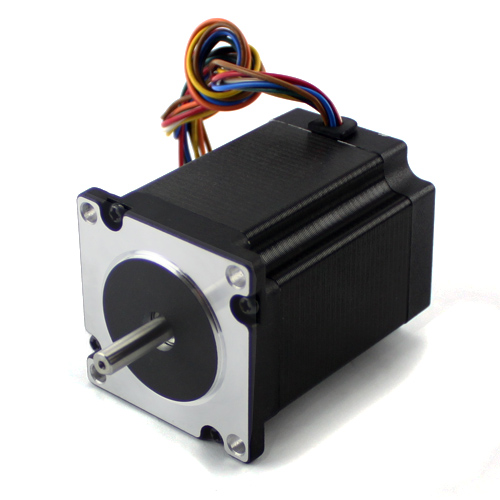

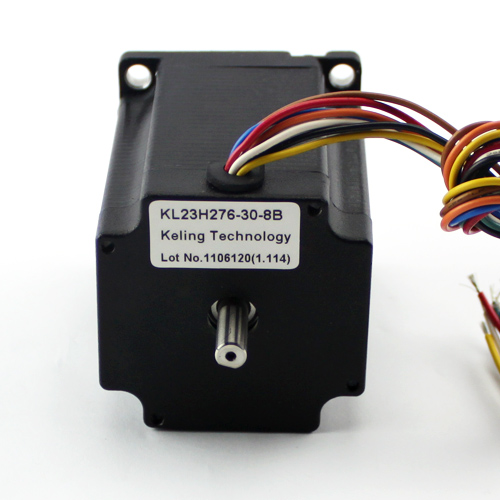

NEMA23 282oz/in 3A Stepper Motor ¼” Dual shaft (KL23H276-30-8B)
Sale!

NEMA23 282oz/in 3A Stepper Motor ¼” Dual shaft (KL23H276-30-8B)

Product in stock

This beefy 282oz/in NEMA23 stepper motor is well suited to medium sized motion control projects of all types.

Price

$39.00 $25.95

You save: $13.05! (33.46%)

Loading Updating cart...

NEMA23 282oz/in 3A Stepper Motor ¼” Dual shaft (KL23H276-30-8B)

Product Description

Stepper Motor, KL23H276-30-8B

282 oz in

1.8° /200 Steps Per Rev.

3 Amps Current Per Phase ( Bipolar Parallel)

8-wire  Bi-polar or unipolar,

NEMA 23 Frame

Wire as bipolar parallel

Blue/Yellow to A:

Red/Green to A-

Brown/Orange to B+

Black/white to B

 Drawing:

KL23H276-30-8B (6699 downloads)

Torque Speed Curve:

[Download not found]
