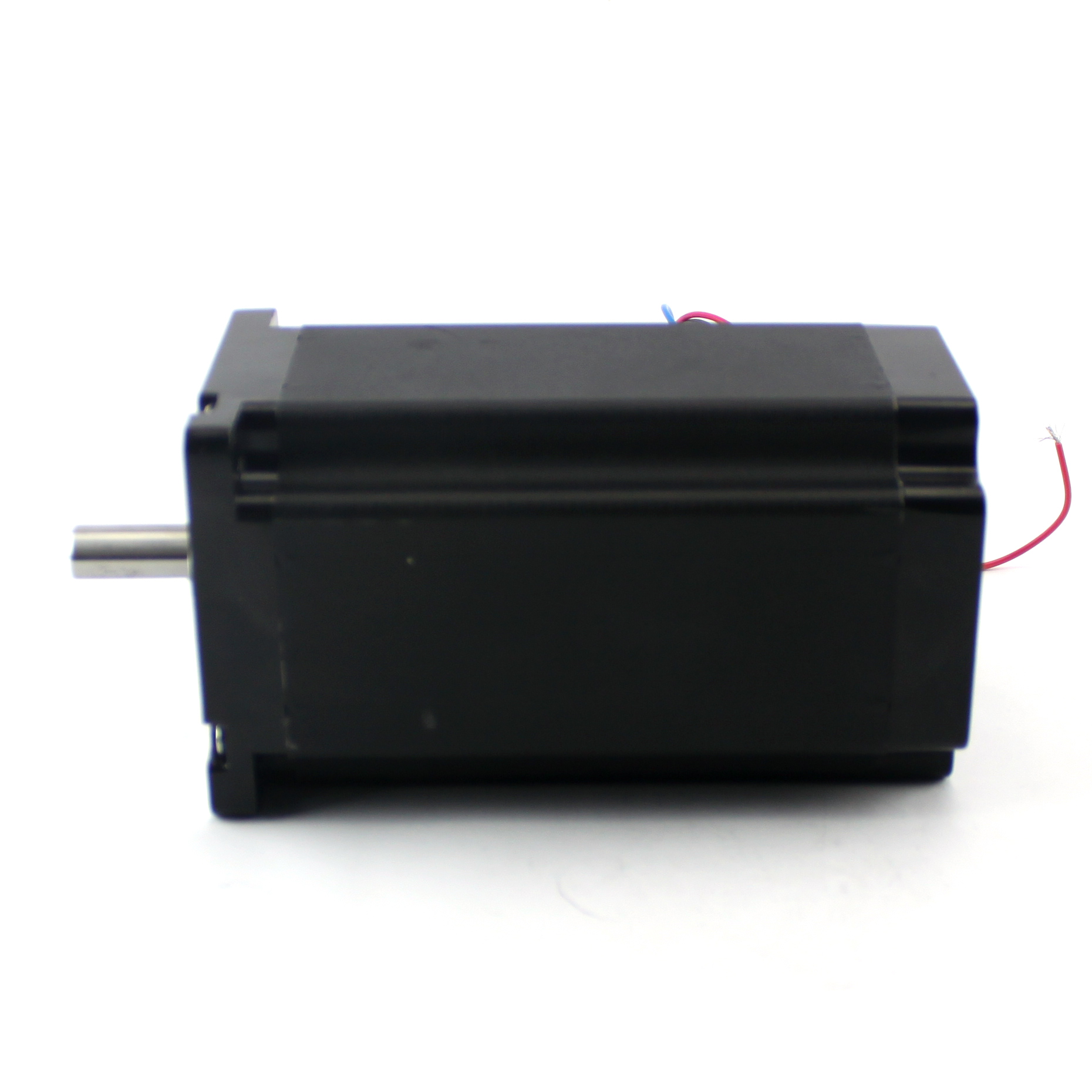

NEMA34 1805oz/in 8.8A Stepper Motor (KL34H2160-62-8A)

Product in stock

Powerful NEMA34 stepper motors are capable of precise, high energy positioning of large or high load machinery. With 1805oz/in and 8.8amp power handling, this is among our most powerful steppers

Price

$119.00

Loading Updating cart...

NEMA34 1805oz/in 8.8A Stepper Motor (KL34H2160-62-8A)

Product Description

NEMA34 1805oz/in 8.8A Stepper Motor (KL34H2160-62-8A)

½” Single shaft with flat

1805 oz In.

1.8° /200 Steps Per Rev.

8.8 Amps Current Per Phase ( Bipolar Parallel)

8-wire Bi-polar or unipolar,

NEMA 34 Frame

If you use KL-11080 or KL-2283 stepper driver, you need to wire bipolar series, set the

Current about 4.4A

KL-2283 8.3 A Digital Bipolar Stepper Motor Driver, AC 80-220VAC - 32 bit DSP Based

KL-11080 8 Amp Bipolar Stepper Motor Driver, AC 80-120VAC input

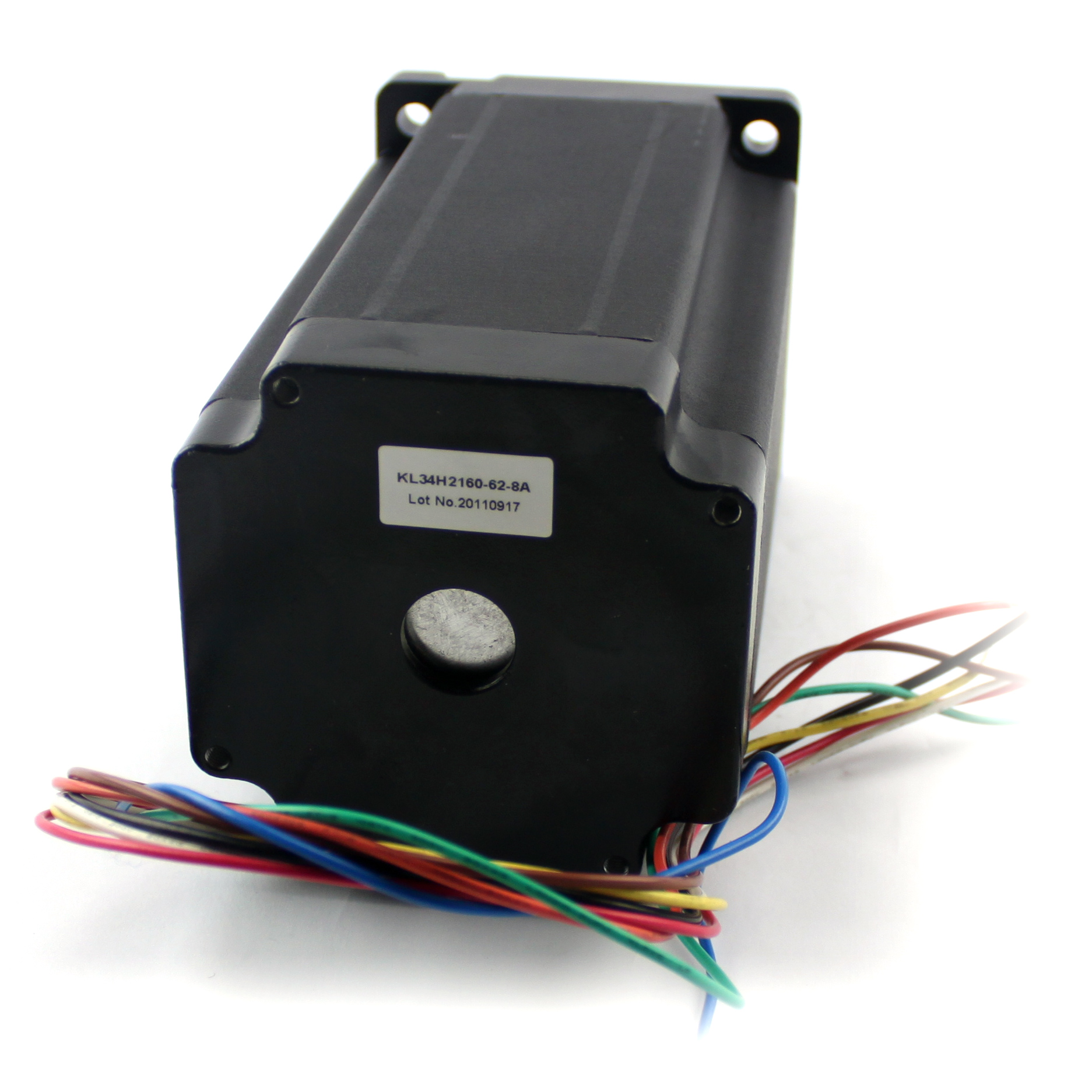

Wiring:

if you need to wire as bipolar parallel

  • A+: blue & Yel
  • A-: Red & Green
  • B+: Brown & Orange
  • B-: Black & White

Wire as Series:

  • Blu: A+
  • GRN: A-
  • Brn: B+
  • WHT: B-
  • Red and Yel connect together
  • Blk and Org connect together

Drawing Download:

KL34H2160 62 8A (4758 downloads)

Torque Curve:

KL34H2160-62-8ATC (1622 downloads)

KL34H2160-62-8AT (2890 downloads)
