NEMA34 Stepper Motor – 1200oz/in 6A  (KL34H2120-60-4B )
Sale!

NEMA34 Stepper Motor – 1200oz/in 6A (KL34H2120-60-4B )

Product in stock

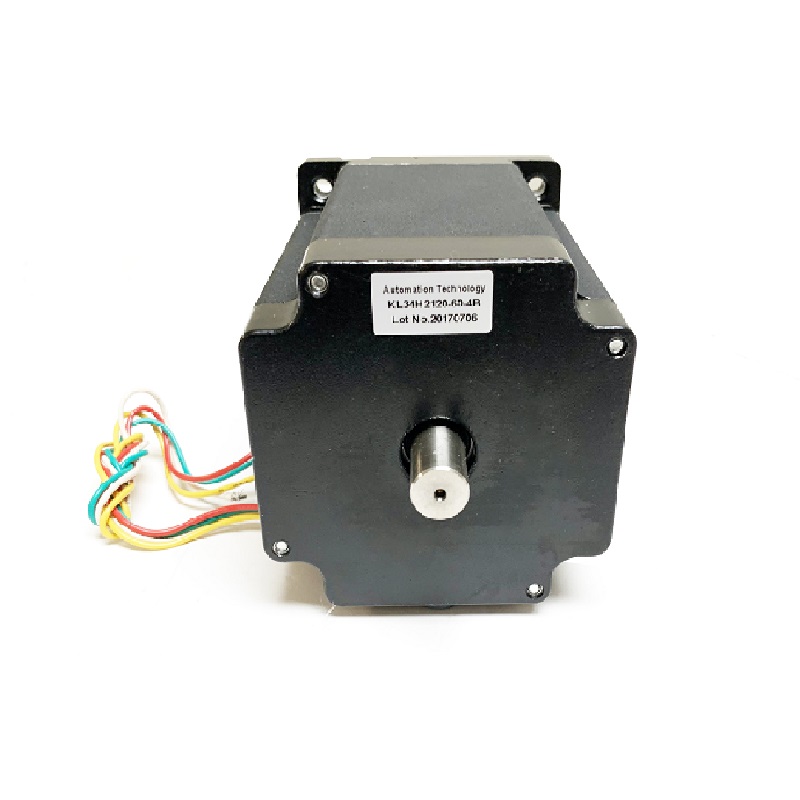

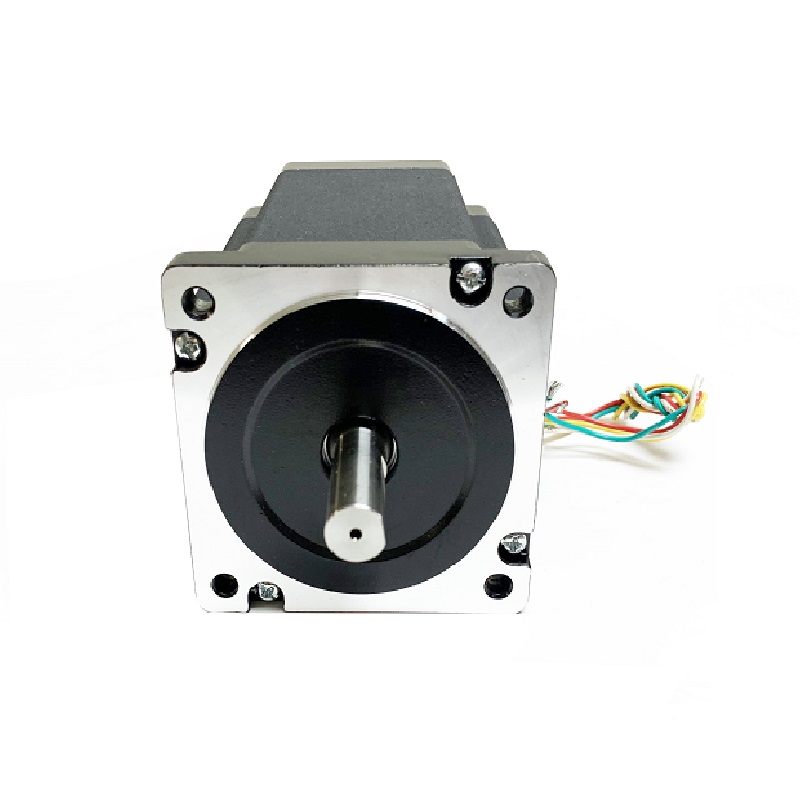

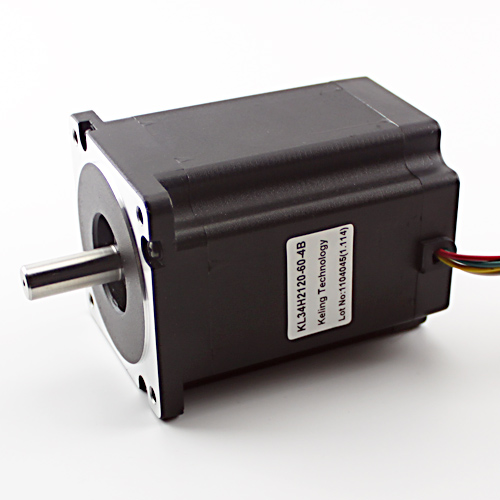

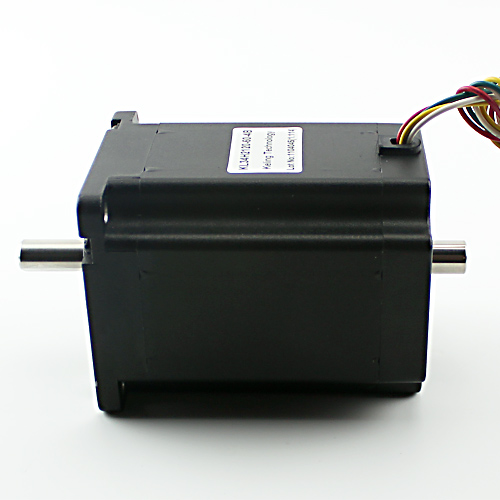

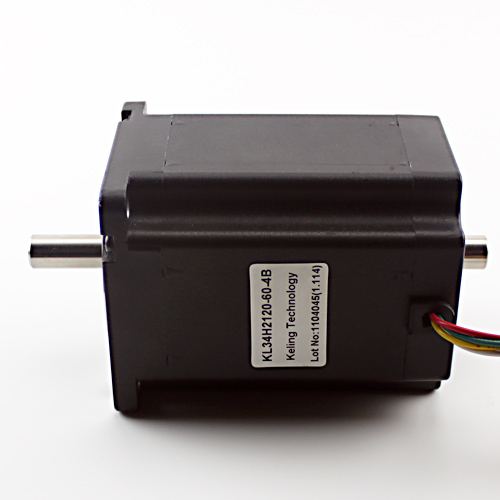

This very large and powerful NEMA34 stepper motor can move a lot of weight at 1200 oz/in and 6.0 amps current draw per phase. 4 wire bi-polar operation; with 1/2" dual drive shafts.

Price

$119.00 $99.99

You save: $19.01! (15.97%)

Loading Updating cart...

NEMA34 Stepper Motor – 1200oz/in 6A (KL34H2120-60-4B )

Product Description

KL34H2120-60-4B  (1/2" shaft with flat)

1200 oz-in

1.8° /200 Steps Per Rev.

6 Amps Current Per Phase ( Bipolar Parallel)

4-Wire Bi-polar,

NEMA 34 Frame


Wiring:

  • Yellow:  A+
  • Green:    A-
  • Red:       B+
  • White:   B-

Download Drawing:

KL34H2120-60-4B (2450 downloads)

KL34H2120-60-4B Drawing (540 downloads)

KL34H2120-60-4B (1532 downloads)
