» Featured Products » Hybrid Stepper Motors » NEMA 34 Stepper Motor » NEMA34 Stepper Motor – 1200oz/in 6amp Single Shaft (KL34H2120-60-4AC ) with cable

NEMA34 Stepper Motor – 1200oz/in 6amp Single Shaft (KL34H2120-60-4AC ) with cable

Product in stock

This large and powerful NEMA34 stepper motor can move a lot of weight at 1200 oz/in and 6.0 amps current draw per phase. 4 wire bi-polar operation; with 1/2" drive shaft.

Price

$129.00

Loading Updating cart...

NEMA34 Stepper Motor – 1200oz/in 6amp Single Shaft (KL34H2120-60-4AC ) with cable

Product Description

NEMA 34 Frame,

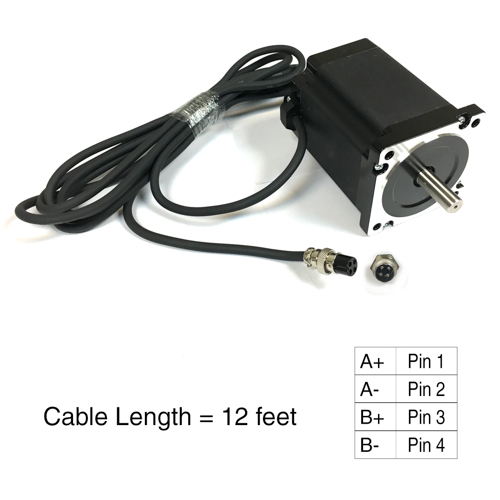

1200 oz In. Hybrid Stepper Motor with 12 feet cable and connector

You will save time to wire the cable

1.8° /200 Steps Per Rev.

6 Amps Current Per Phase ( Bipolar Parallel)

4-Wire  Bipolar,

1/2" shaft

Inductance:  6mH

A+ to pin1

A- to pin2

B+ to pin3

B- to pin4

Manual:

KL34H2120-60-4A (1006 downloads)

You can use this stepper driver to control

KL-8060E Digital Bipolar Stepper Motor Driver-32 bit DSP Based

You can use this Power supply

48VDC/12.5A Switching CNC Power Supply, KL-600-48
