» Featured Products » Hybrid Stepper Motors » NEMA 34 Stepper Motor » NEMA 34 Stepper Motor with Brake, (KL34H-2114-56-8AZ) 114mm 1160oz-in 5.6A 8Leads
NEMA 34 Stepper Motor with Brake, (KL34H-2114-56-8AZ) 114mm 1160oz-in 5.6A 8Leads
Product in stock
Price
$189.00
NEMA 34 Stepper Motor with Brake, (KL34H-2114-56-8AZ) 114mm 1160oz-in 5.6A 8Leads
Product Description

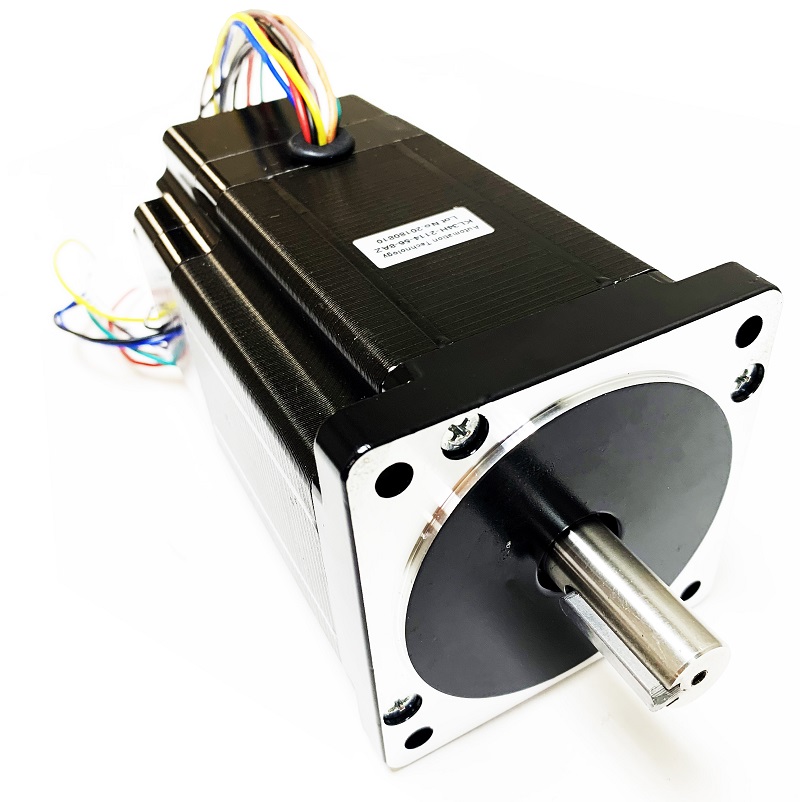

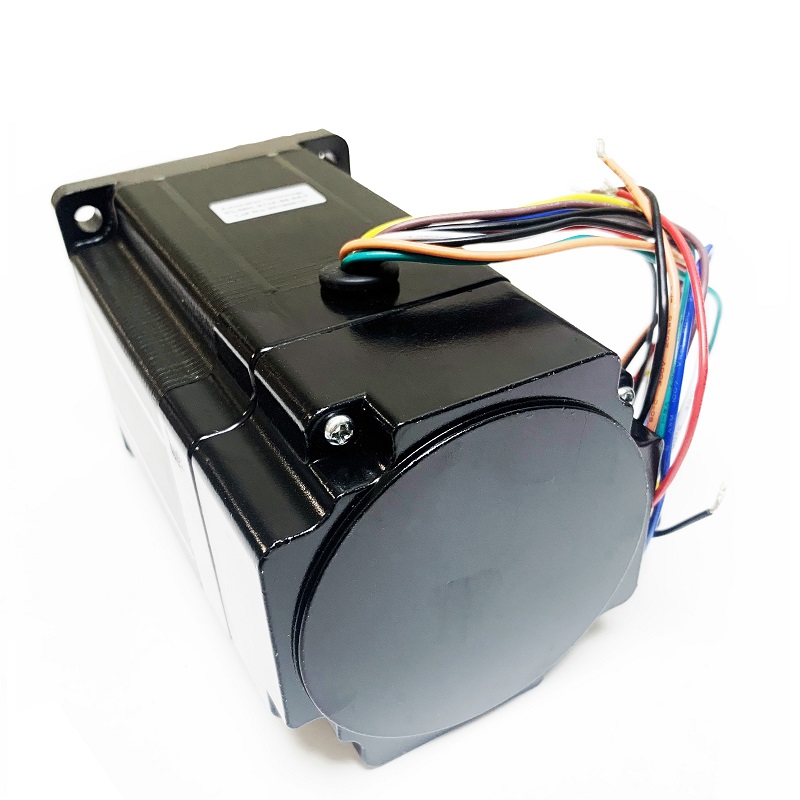

NEMA 34 Stepper Motor with Brake,
Holding: 4 N-m
Phase: 4
Step Angle: 1.8
Rotor Inertia: 3600 g.cm^2
Insulation Resistance: 100 Mohms @ 500VDC
Insulation Class: B (130 C)
Ambient Temperature: -20C to 50C
Motor weight: about 3.8 kg
Length: 114mm
Shaft size 14mm
8 wire Leads
Max Torque: 1160 oz-in
Bipolar Parallel:
Current: 5.6A,
Resistance 0.55 ohms
Inductance: 5.5 mH
Brake : DC 24V, BLK-BLK
Holding: 4 N-m
Wiring In Parallel
- A+: Red/Blu
- A-: Yel/Blk
- B+: Wht/Brn
- B-: Grn/Org
Wiring In Series
Red +
Yel/Blu Connected together
Blk A-
Wht B+
Org/Brn Connected together
Grn B-
Drawing:
