Nema 14 Stepper Motor Bipolar
Product in stock
Price
$18.00
Nema 14 Stepper Motor Bipolar
Product Description

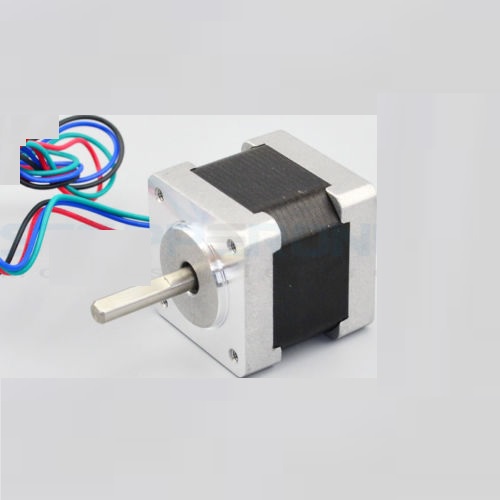

This bipolar Nema 14 stepper motor with step angle 0.9deg and size 35x35x28mm. It has 4 wires, each phase draws 0.4A at 10V, with holding torque 11Ncm(15.58oz.in).
Electrical Specification
- Manufacturer Part Number: 14HM11-0404S
- Motor Type: Bipolar Stepper
- Step Angle: 0.9deg
- Holding Torque: 11Ncm(15.58oz.in)
- Rated Current/phase: 0.4A
- Phase Resistance: 25ohms
- Inductance: 24mH±20%(1KHz)
Physical Specification
- Frame Size: 35 x 35mm
- Body Length: 28mm
- Shaft Diameter: Φ5mm
- Shaft Length: 24mm
- D-cut Length: 15mm
- Number of Leads: 4
- Lead Length: 300mm
- Weight: 120g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
Drawing Download:
Torque Curve:
Nema14Motortorquecurve (54 downloads)
Additional Details
