Nema 8 Stepper Motor CNC

Product in stock

Price

$24.00

Loading Updating cart...

Nema 8 Stepper Motor CNC

Product Description

Nema 8 Stepper Motor 1.8deg Bipolar 0.6A

5.7 oz.in 20x20x38mm 4-wire CNC

This is the highest torque for Nema 8 stepper motor with 1.8° step angle (200 steps/revolution). Each phase draws 600mA, allowing for a holding torque of 4Ncm(5.7oz.in).

Specification
Manufacturer Part Number 8HS15-0604S
Motor Type Bipolar Stepper
Step Angle 1.8°
Holding Torque 4Ncm(5.7oz.in)
Rated Torque 3.2Ncm(4.56oz.in)
Rated Speed 200rpm
Maximum Speed 600rpm
Rated Current/phase 0.6A
Phase Resistance 10ohms
Recommended Voltage 12-24V
Inductance 5.5mH±20%(1KHz)
Weight 80g

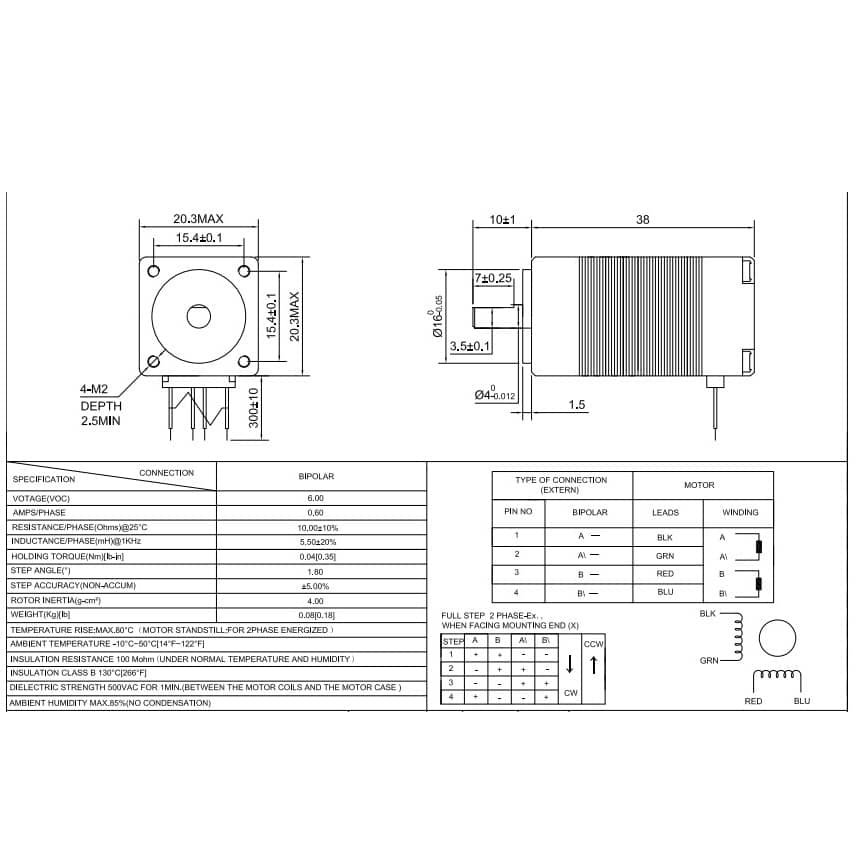

Drawing
Wire Connection
