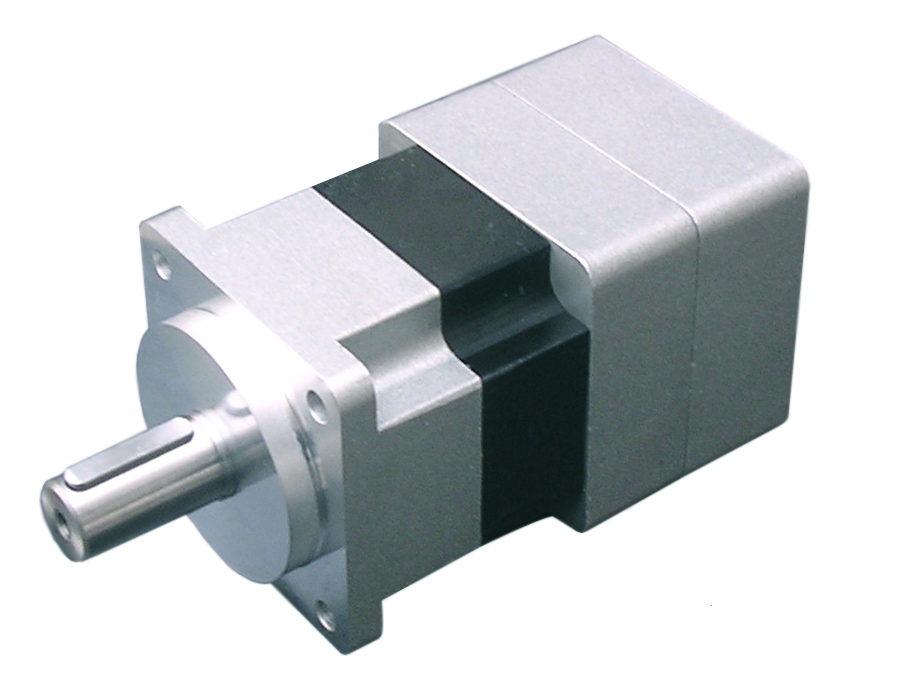

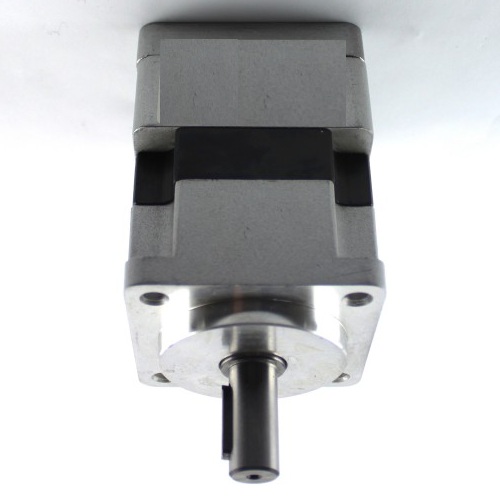

KL-23GH101S NEMA23 10:1 Planetary Gearbox

Product in stock

Planetary gearboxes are low-backlash solutions for mechanical reduction. These gearboxes work with NEMA 23 Stepper motors and servos and are ideal for routers, laser cutters, plasma tables, and other CNC applications

Price

$209.95

Loading Updating cart...

KL-23GH101S NEMA23 10:1 Planetary Gearbox

Product Description

PLANETARY GEARBOX  WITH STEPPER MOTOR,  REDUCE THE SPEED,  INCREASE TORQUE, PRECISIONS, MAINLY USED FOR CNC ROUTER, CNC PLASMA, CNC LASER ,  MANY OTHER AUTOMATION SYSTEM

1- Gear Ratio: 10-1

2- Rated output torque about 25 NM

3- Max output torque about 50 NM

4- Max backlash (arc-min) 8-10 arc min

5- Max input speed (RPM), 3000 rmp or less, out speed, 300 or less

6-Efficiency about 91%

7-L1 body length, 85mm

Standard NEMA23 (Input hole 1/4" and Output shaft 1/2" )

Lifetime Lubrication

IP55 Protection

It will work with our NEMA 23 motors or Servo Motor

about 3 ibs

1 year limited warranty

Manuals & Downloads

KL-23GH101SDrawing (1948)
