Product Description

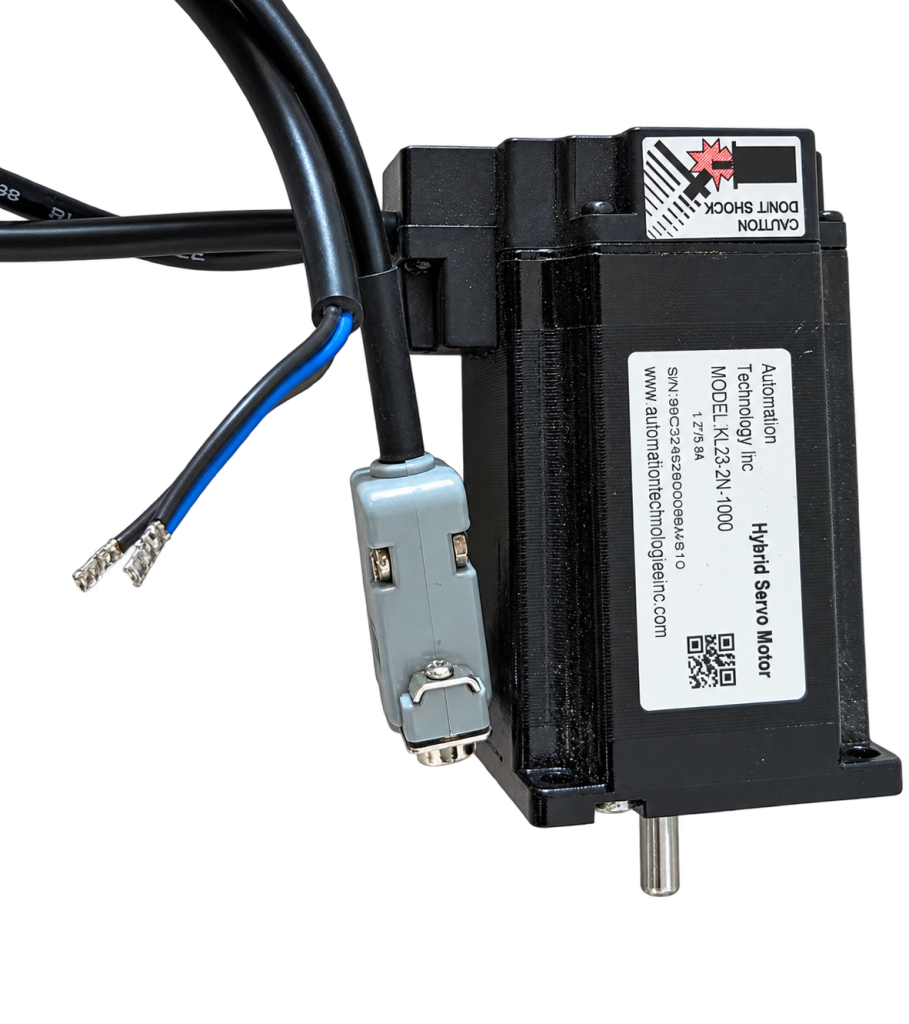

NEMA23 Hybrid Servo Motor, KL23-2N-1000, 1/4" shaft

Rated Torque 282 oz-in, 2 N-m, with one Encoder 1000 line

1000 pulses per revolution

Quadrature digital signals: 4000 steps per revolution

4000 / .05 pitch

80,000 counts per unit

U to Brown/Yellow

V to Blue

W to Black

If the wire color is different

Use: Blue to V,

Red to U,

Black to W,

Yellow/Green ( Not Connected)

Driver :

KL-5080H (6037 downloads)

Motor:

KL23-2N-1000 (4581 downloads)

Wiring Diagram

Hybrid Servo Motor (14846 downloads)

NEMA23Closeloopsteppermotorwiring (6375 downloads)

A Closed Loop Stepper Driver  video

A Closed Loop Stepper Driver Test video

Thank you Marty for your video to show the Wiring!
