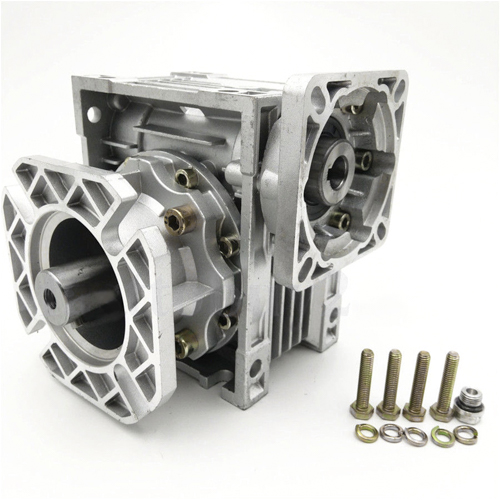

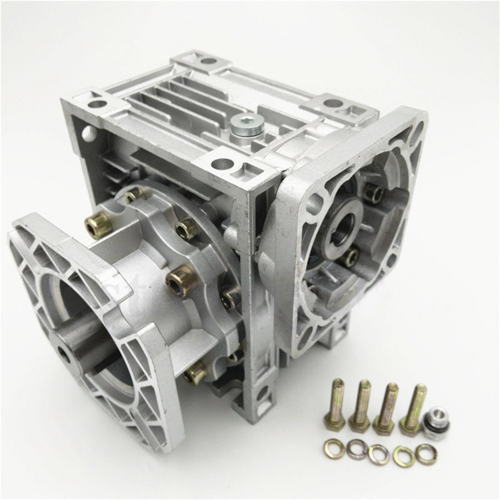

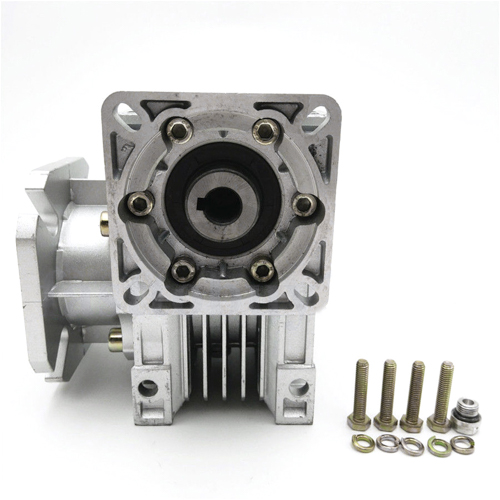

NEMA34 Worm Gear Reducer with Output Shaft

Product in stock

Price

$179.00

Loading Updating cart...

NEMA34 Worm Gear Reducer with Output Shaft

Product Description



NEMA34  Worm Gear Reducer Ratio with Output Shaft

Type: Worm Gearbox
Speed Ratio: 5:1 7.5:1 10:1 20:1 30:1 50:1
Input Shaft Type: Key way
Input Shaft Diameter:14mm
Output Type: Hollow Bore
Output Bore Diameter: 18mm
Input Flange Model: NEMA34
Application: Matched with Servo/Stepper Motor

Output Max.Permissible Torque: 40Nm(354.03lb-in)
Output Max. Radial Load: 1.44kN
Efficiency: 83%
Backlash at No-load: <=1°
Maximum Input RPM:2000RPM
Approximate Weight:2.17KG

pls let us know which ratio you need

We will ship from from our China office, it take 12 days

NMRVS40

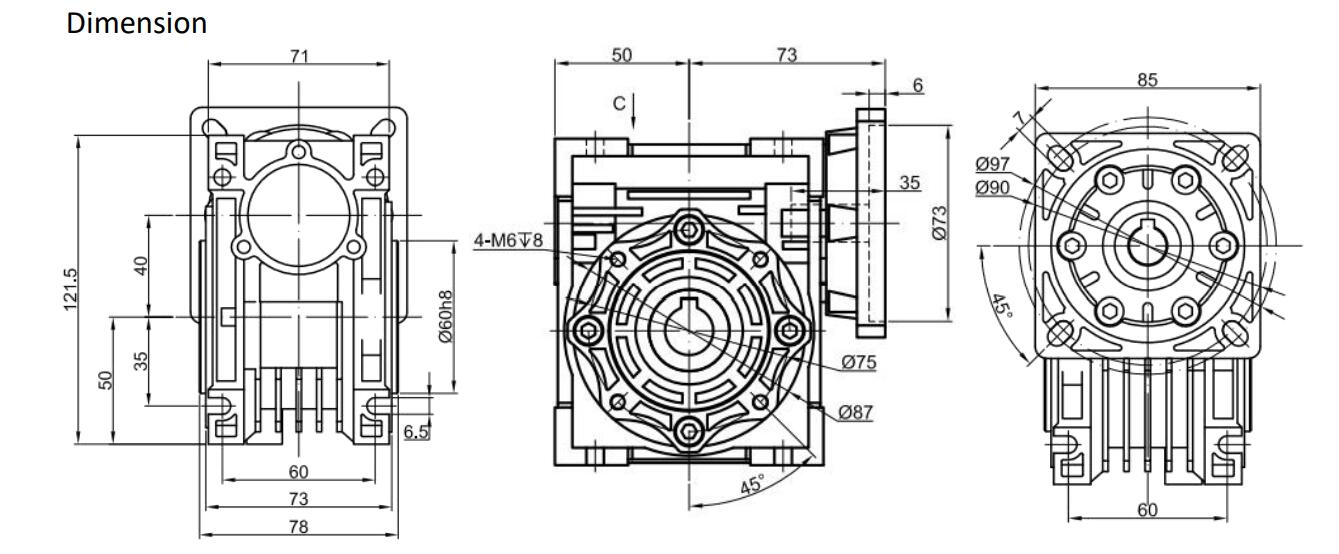

Drawing Downloads:


One year warranty
