NEMA34 Closed Loop Stepper Motor System-Hybrid Servo Kit 1128 oz-in ( KL-8080L&KL34-8N-1000L)

Product in stock

Price

from $209.95

Loading Updating cart...

NEMA34 Closed Loop Stepper Motor System-Hybrid Servo Kit 1128 oz-in ( KL-8080L&KL34-8N-1000L)

Product Description

NEMA 34 Hybrid Servo kit (closed-loop stepper system):

1pc Hybrid Servo Driver KL-8080L

1pc NEMA34 KL34-8N-1000L Hybrid Servo Motor with one Encoder 1000 line

1pc 3 meter cable or longer

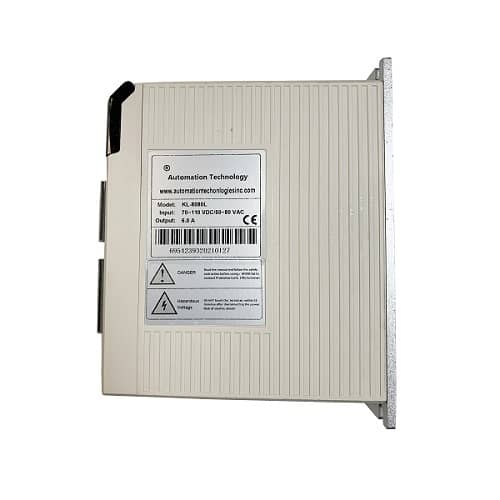

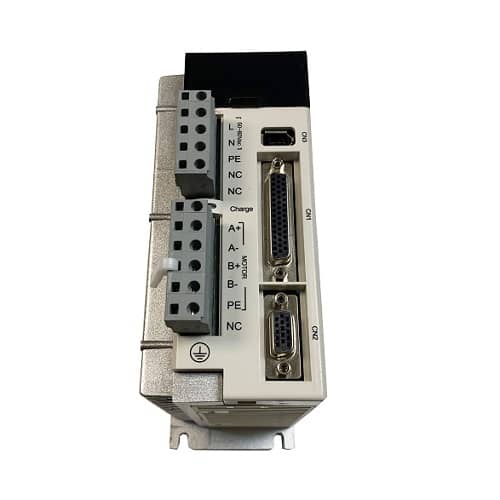

A: KL-8080L 2-phase Hybrid Servo Driver:

KL-8080L is a low cost, high performance servo systems, for a variety of large-scale automation equipment and instruments, it is better for user to expect with low-cost, low vibration, low noise, high-precision, high-speed equipment, more suitable lower rigidity actuator load, such as a belt type than conventional servo.

  • Input 60-110VDC / 45-80VAC,  No Tuning, Nulls loss of Synchronization
  • Output 6.0 A
  • High-performance, low price
  • Micro-step
  • Automatic idle-current reduction
  • Optical isolating signals I/O
  • Max response frequency up to 200Kpps
  • Low temperature rise, smooth motion
  • Online adaptive

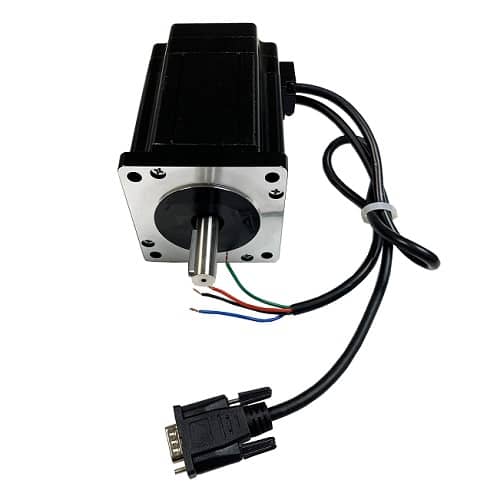

B: NEMA34 Hybrid Servo Motor, KL34-8N-1000L, 1/2" Shaft

  • Rated Torque 1128 oz-in, 8 N-m, with Encoder 1000 line
  • Number of Phase: 2
  • Step Angle:  1.8°±5%
  • Motor Holding Torque: 8.0 N.m
  • Current: 6.0A
  • Phase Inductance(1KHz): 4.3 ±20%mH

Wiring:

A+ to BLU

A- to RED

B+ to GRE

B- to BLK

C: 3 or 5 meter Encoder cable

1000 pulses per revolution

Quadrature digital signals: 4000 steps per revolution

4000 / .05 pitch

80,000 counts per unit

Power supply to use:

72V/8A Switching CNC Power Supply (110VAC/220VAC ), KL-600-72

or

Unregulated Linear 1440W/72VDC/20A Toroidal PSU (KL-7220)




Driver Manual Download:

KL-8080L (6 downloads)

Motor Specification:

KL34-8N-1000L (70 downloads)

Testing Video:

Tested for a customer with 60VDC power supply.
