Product Description

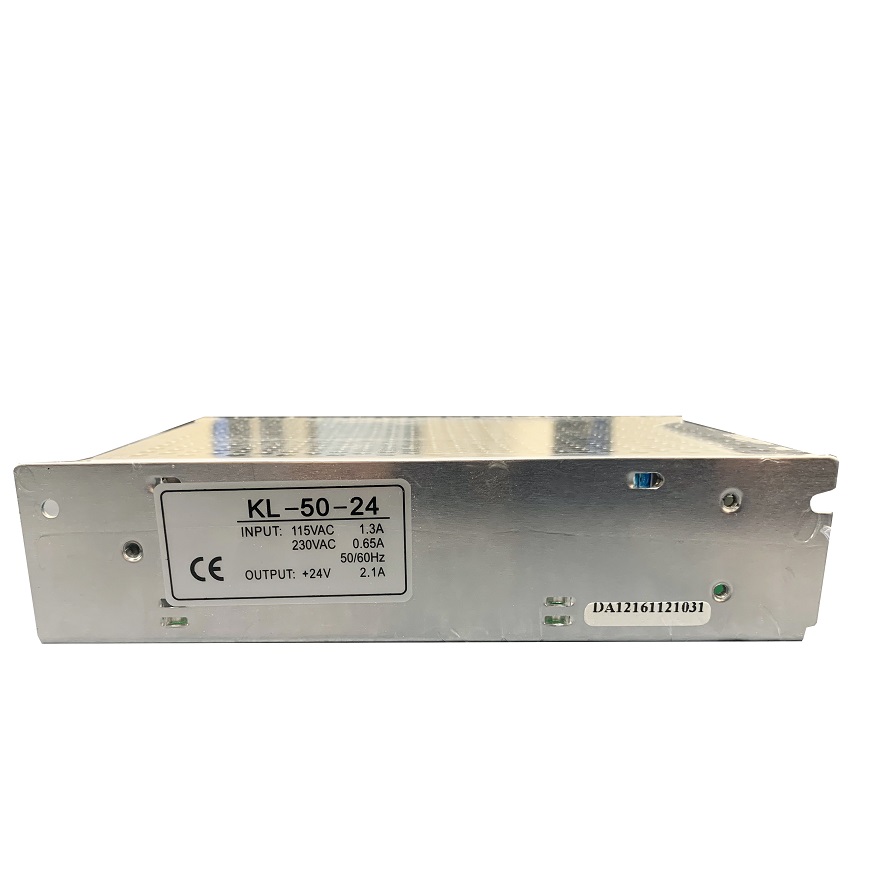

Specifications/Parameter:

-Input: AC110V/220V 50/60Hz
-Output : DC 24V 2A (48W Max)
-Working temperature: -10 to 50 degree Celsius
-Storage temperature: -20 to 60 degree Celsius
-Environmental humidity: 10-95%
-Protection: Shortage Protection, Overload Protection, Over Voltage Protection
-Shell Material: Aluminum
-Safety Compliance: FCC / CE

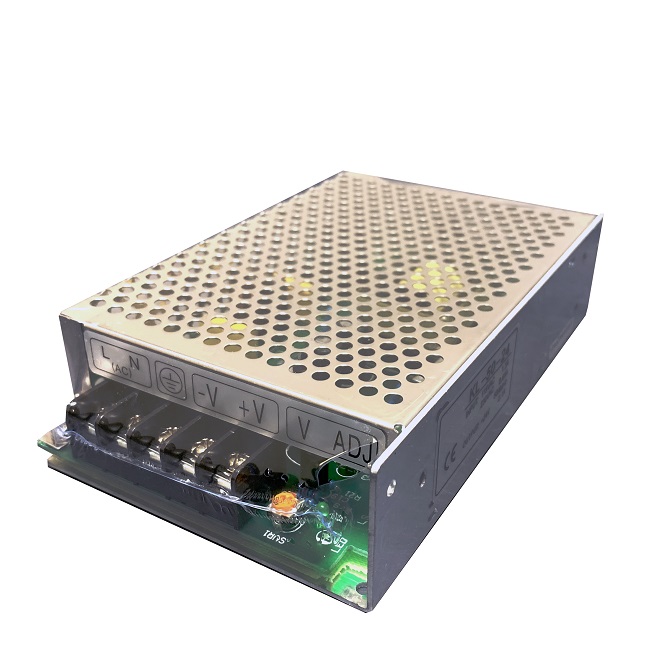

Connection instruction
L/N: AC power input 110Vor 220V (110V/220V is selected by switch)
+V: DC power output “+”
-V: DC power output “-“
+V ADJ: Adjust the output voltage (10%)

Note:

1. In-door use only, for this switch power supply is not waterproof.
2. High Voltage inside, do not remove the cover. Professional Installation of qualified electrician is highly recommended.
3. 110V/220V is selected by switch. Before power on please check input voltage avoiding damage. Please change the switch to 110V for USA.
Package:
1 x 24V 2A 48W power supply switch
