MASSO Plasma DTHC Module

Product in stock

Price

$310.00

Loading Updating cart...

MASSO Plasma DTHC Module

Product Description

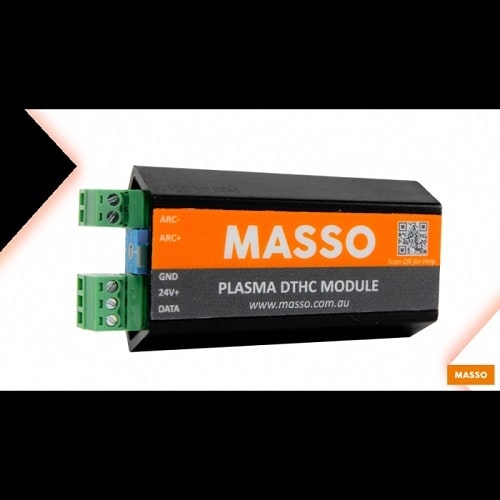

The MASSO DTHC (Digital Torch Height Control) module is designed to provide digital arc voltage information from a plasma source. The module is designed to connect the MASSO G3 controller and the plasma source with an arc voltage divider output option.

The digital arc voltage data is used by MASSO to monitor arc voltage levels and to adjust the torch height while cutting parts. Having full digital information about arc voltages, the user can easily set and adjust cutting voltages for jobs using gcode commands, this makes it very flexible and easy for the user to set all the cutting parameters of a job in a gcode file, there is no requirement to set cutting voltages manually on an external THC, everything is automatically loaded in when the gcode file is loaded.

Wiring and Setup instructions: CLICK HERE

  • Optical isolation to protect low voltage components and MASSO.
  • Supports different plasma acr voltage ratios, 50:1, 30:1, 20:1 & 16:1.
  • Easy mounting using double-sided tape.
  • WARNING: Connecting the power polarity in reverse will damage the module.

Please note that once it is assigned to MASSO serial number then you can't use that for another serial number. Each DTHC module will be linked to one MASSO Controller

 The DTHC module requires MASSO G3 software v5.0 or above

The DTHC module is only supported with the MASSO G3 controllers as the old G2 model does not have the required interface electronics.
