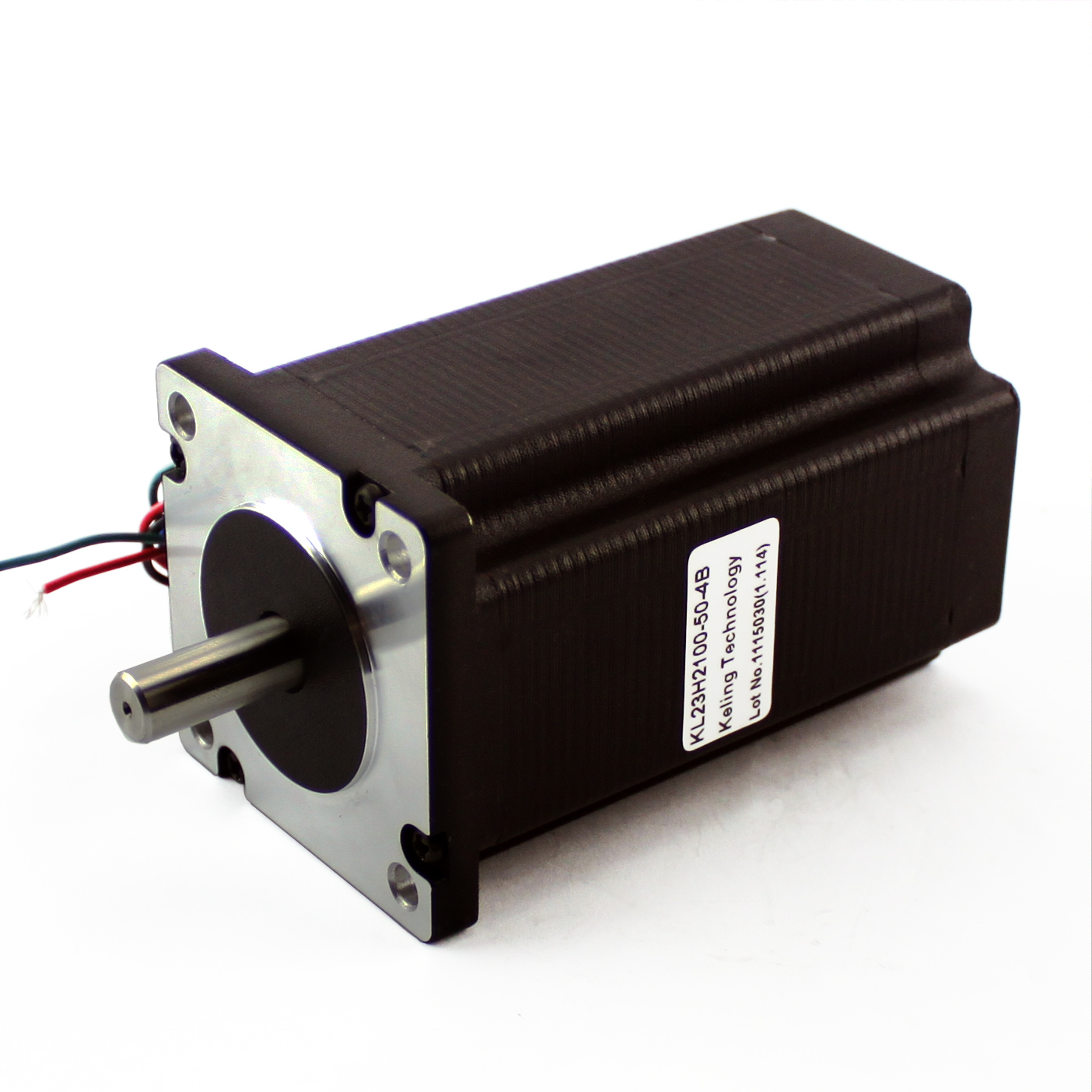

NEMA23 570oz/in 5A 3/8” Dual Shaft Stepper Motor (KL23H2100-50-4B)
Sale!

NEMA23 570oz/in 5A 3/8” Dual Shaft Stepper Motor (KL23H2100-50-4B)

Product in stock

This 570oz/in NEMA23 stepper motor is well suited to medium sized motion control projects of all types.

Price

$54.95 $49.95

You save: $5.00! (9.10%)

Loading Updating cart...

NEMA23 570oz/in 5A 3/8” Dual Shaft Stepper Motor (KL23H2100-50-4B)

Product Description

NEMA 23 Frame KL23H2100-50-4B:

570 oz In. Hybrid Stepper Motor,

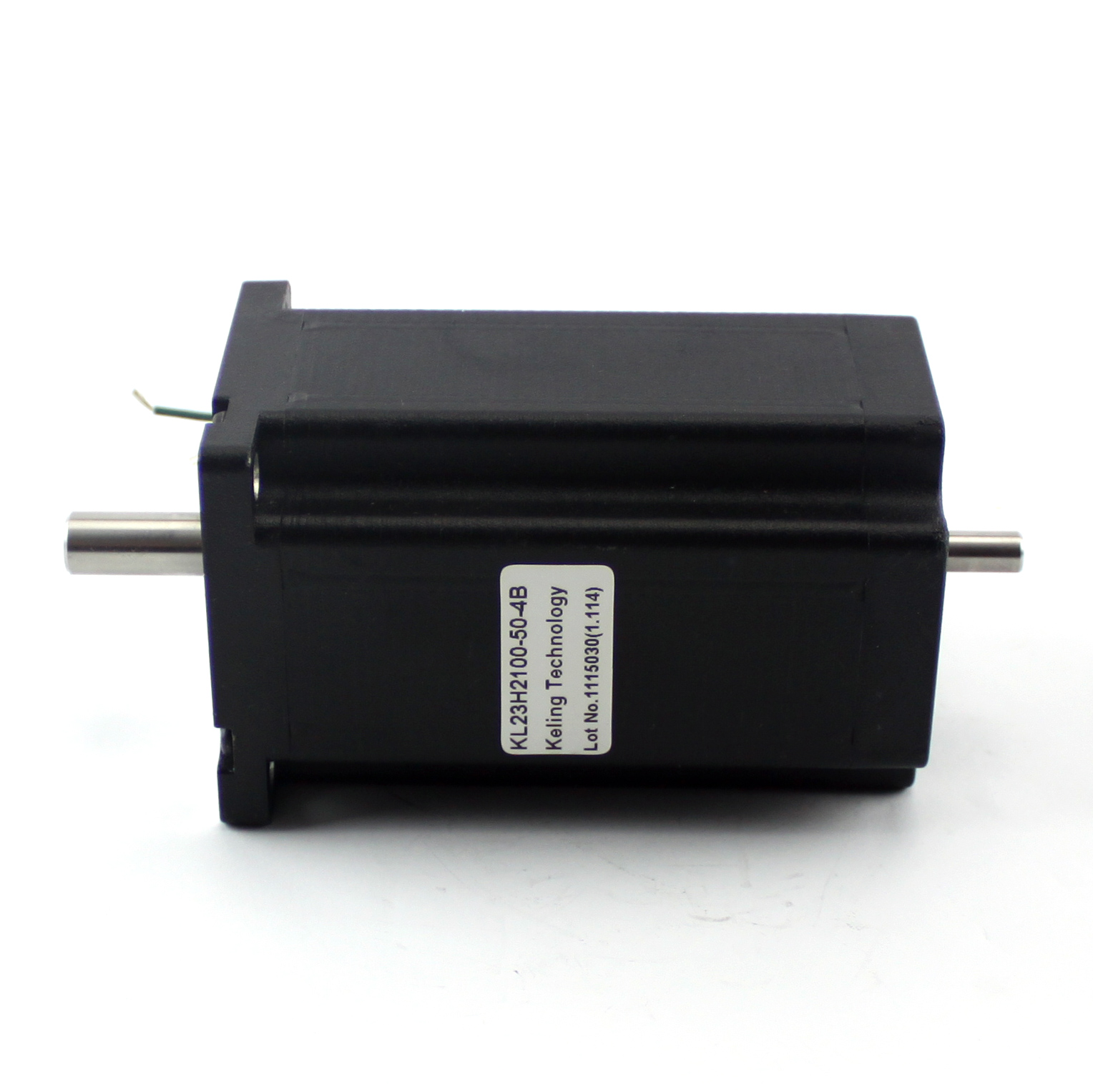

dual shaft ( Front Shaft 3/8", rear shaft 1/4")

1.8° /200 Steps Per Rev.

5 Amps Current Per Phase

4-Wire  Bi-polar,

3 pound 10 oz

Black to A+

Green to A-

Red to B+

Blue to B-


Download:

Drawing:

KL23H2100-50-4B Drawing (348 downloads)

Torque Curve

KL23H2100-50-4BT (11756 downloads)
