Plasma Cutter 3 axis Controller
Price

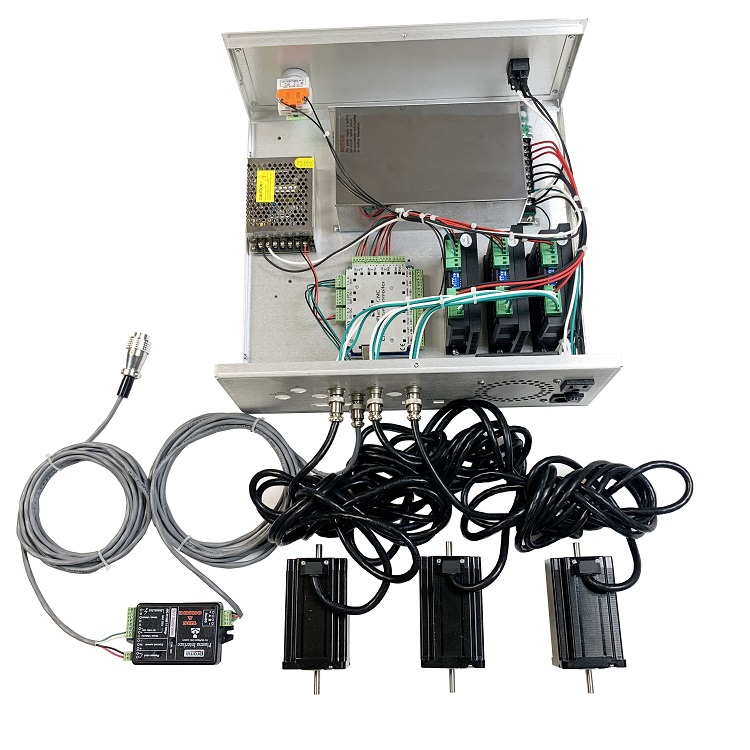

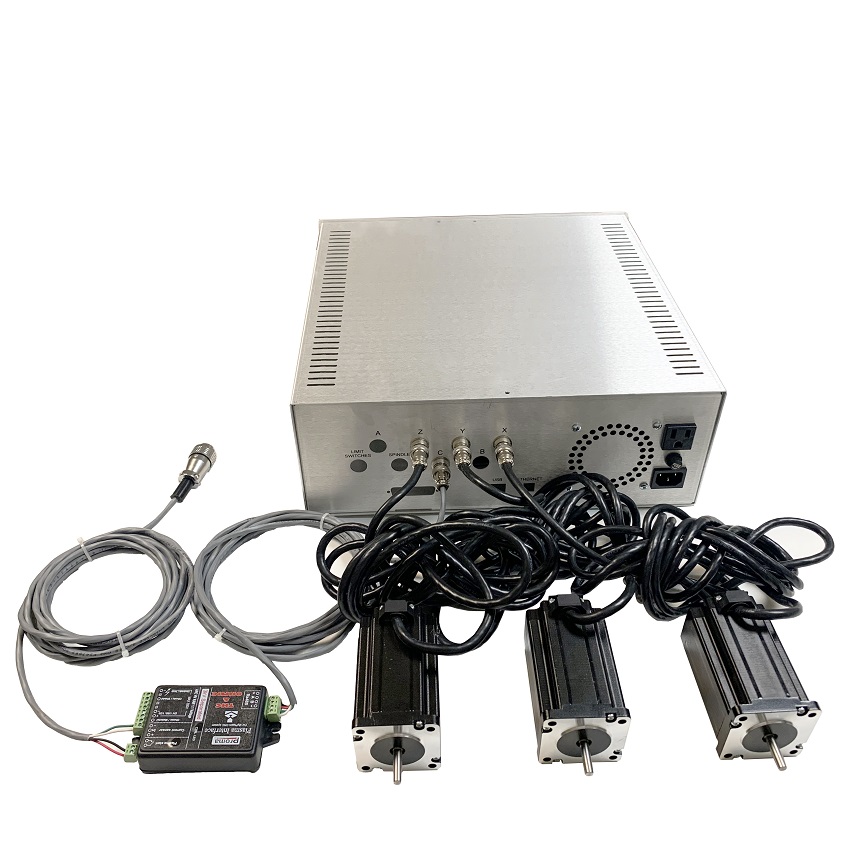

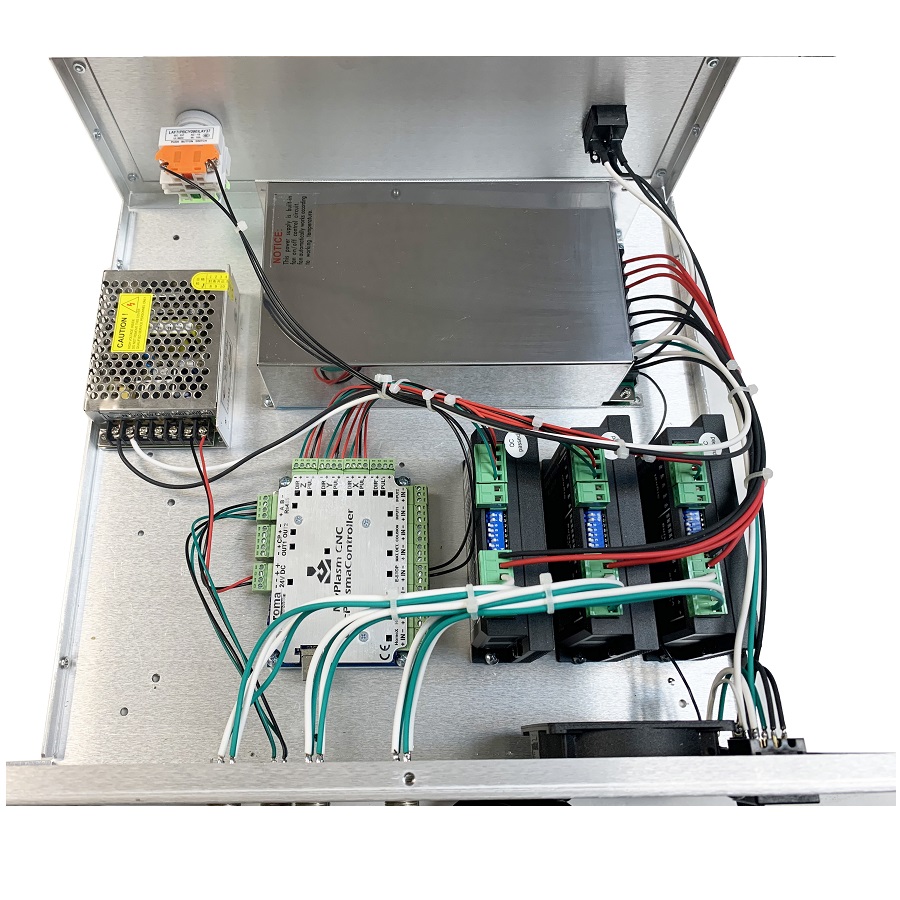

Plasma Cutter 3 axis Controller
Product Description
We used the Plasma Cutter Electric DIY Kit, Made this 3 axis controller
It is assembled and tested, Ready to run
It has Free Software
Contact us if you need to update to 4 axis controller:
Add a Stepper driver:
KL-5056E Digital Stepper Driver-32 bit DSP Based
Add a Stepper motor
NEMA23 570oz/in 5A 1/4” Dual Shaft Stepper Motor (KL23H2100-50-4BMC) with Cable
automationtechinc@yahoo.com / 847-984-0882
Installation Manual :
1: 1 Pcs MyPlasma Controller, THC Torch Height Control, Free Software
Plasma Controller-THC Torch Height Control
2: 3 pcs KL-5056E Stepper Driver
KL-5056E Digital Stepper Driver
3: 3 pcs Stepper Motor, 570 oz in KL23H2100-50-4BMC) with Cable, 12 feet
NEMA23 570oz/in 5A 1/4” Dual Shaft Stepper Motor (KL23H2100-50-4BMC) with Cable
or this motor
NEMA23 570oz/in 5A 3/8” Dual Shaft Stepper Motor (KL23H2100-50-4BC) with Cable
4: 1pc 48Vdc, 12.5A Switching Power Supply
48VDC/12.5A Switching CNC Power Supply
5: 1 pcs 24V, 1A , 5V, 1A Switching Power Supply
24V 1A Switch Power Supply with 5V/2A
6: 22 Feet cable for THC Torch Height Control ( Total)
7: Computer ( Optional)
DELL LAPTOP LATiTUDE WINDOWS 10 CORE 2 DUO 4GB RAM (Rebuilt)
Video:
Plasma CNC Cutter controller testing video
Wiring Diagram:
Proma MyPlasma Controller Wiring Diagram (2038 downloads)
Installation Manual :
Download Software:
**If software shows "Connection Error": first check if the power supply is 24V. If yes, hold SHIFT key and "Click to Rest" in software for updating the firmware.**
One Year Part Warranty
