400W 1.27NM AC Servo Motor Driver Kit NEMA24 23Bit Absolute CNC 3000RPM
Product Description
400W 1.27NM AC Servo Motor Driver Kit NEMA24 23Bit Absolute CNC 3000RPM
Rated Voltage (Vac): 200-230 VAC
1: 400W 1.27NM AC Servo Motor, Driver Kit without Cables;

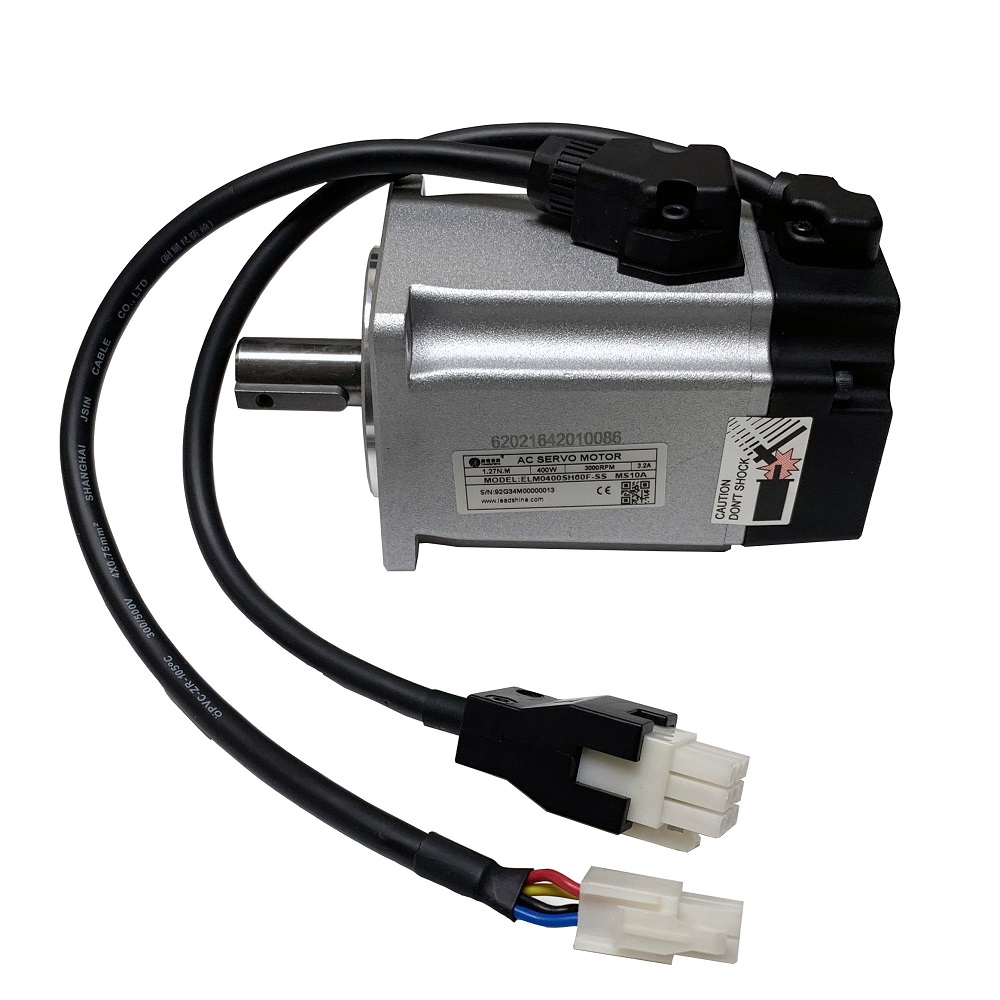

- AC Servo Motor ELM0400LH60F-SS

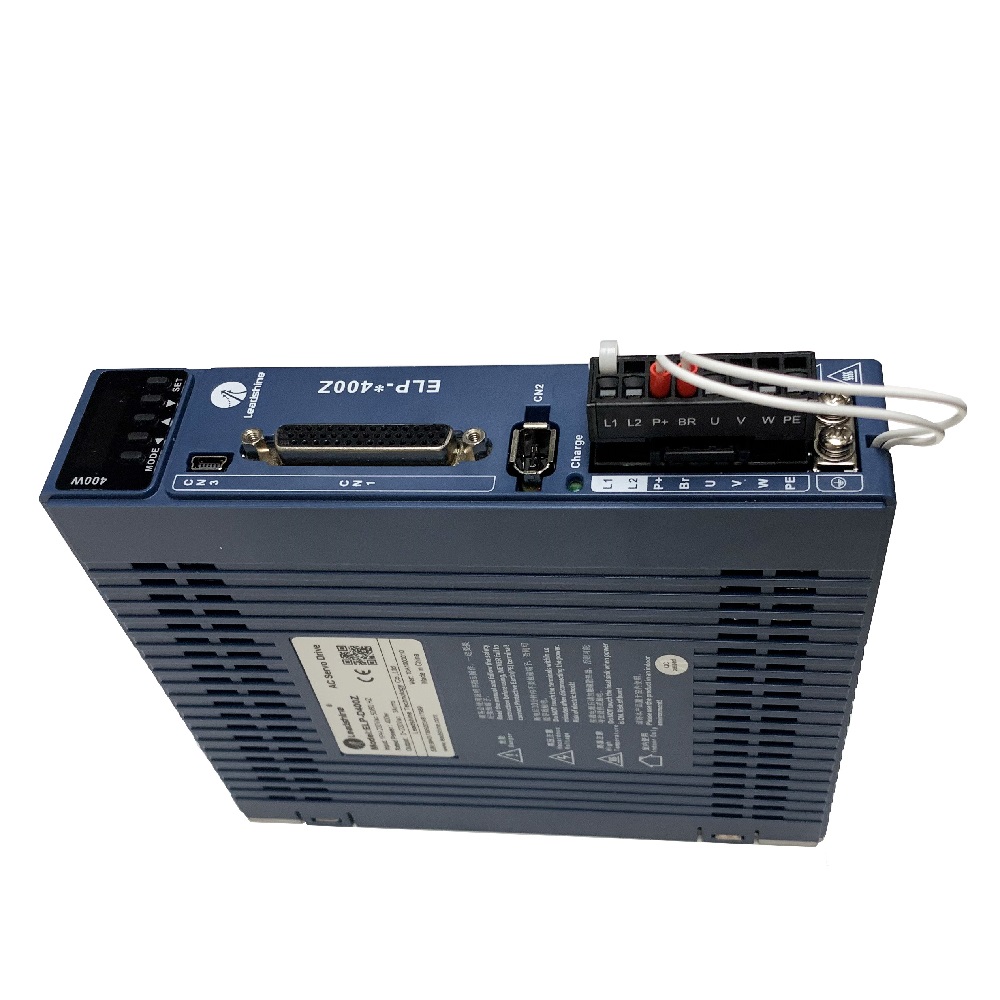

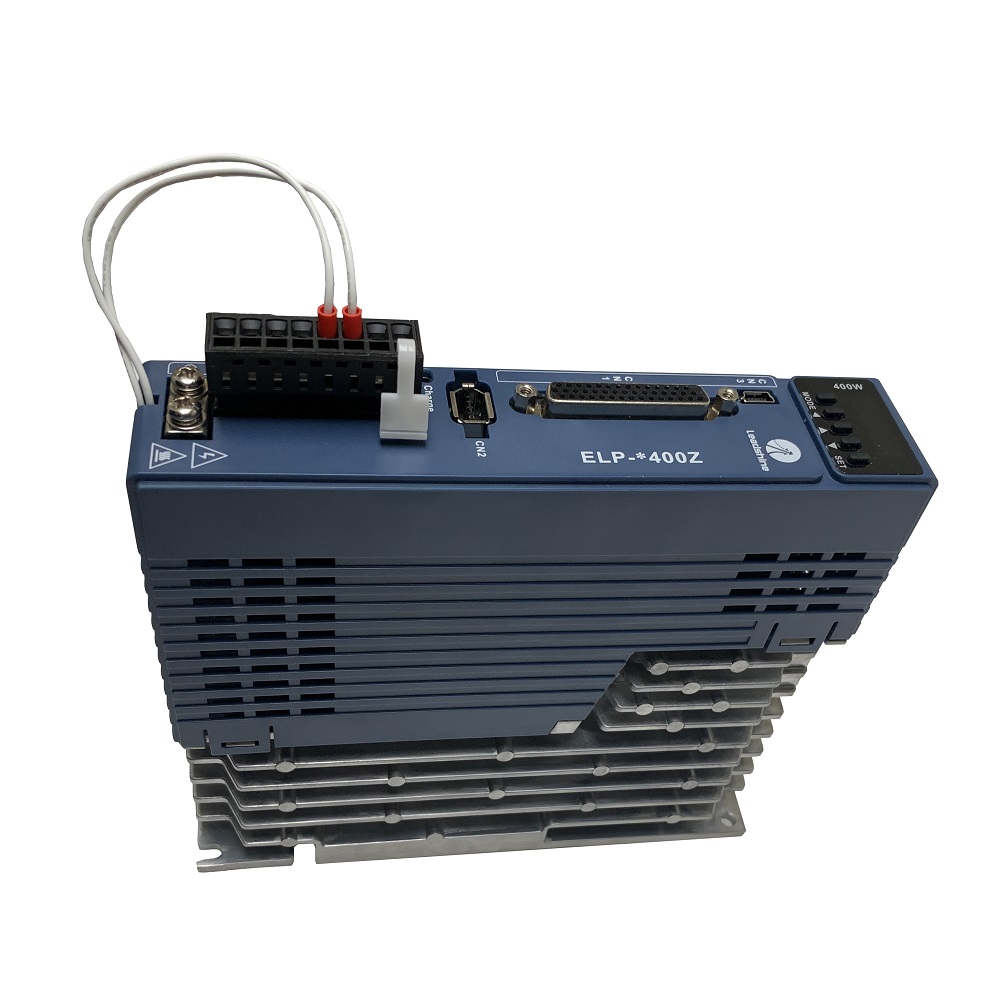

- AC Servo Drive ELP-D400Z

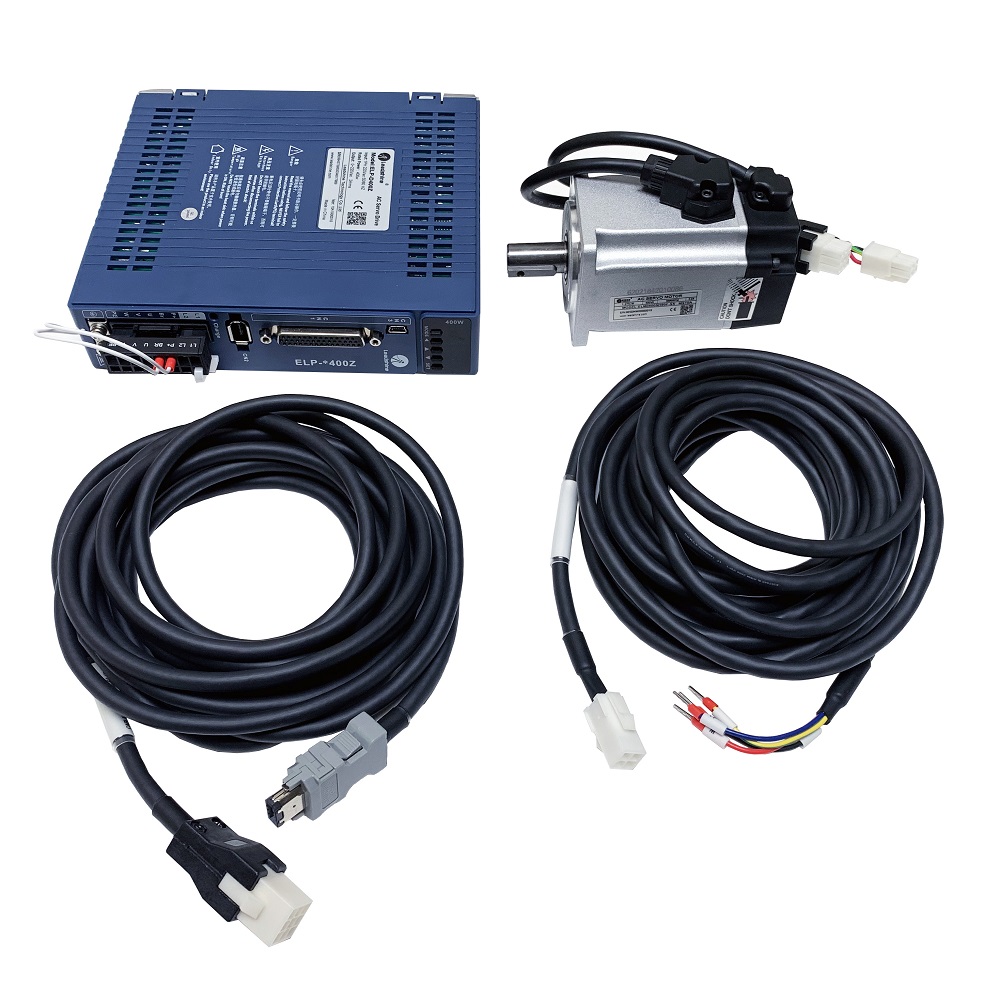

2: 400W 1.27NM AC Servo Motor, Driver Kit with Cables;
- AC Servo Motor ELM0400LH60F-SS
- AC Servo Drive ELP-D400Z
- Power cable (Optional length)

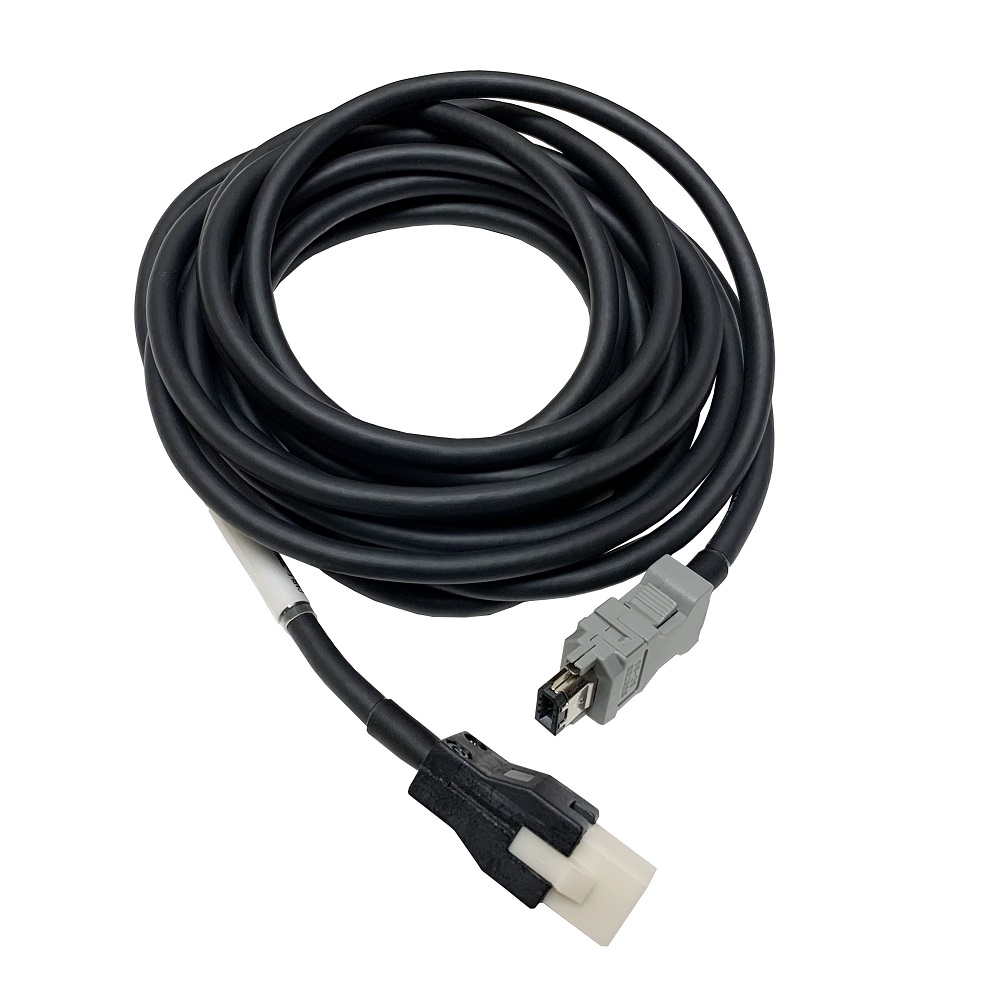

- Encoder cable (Optional length)
NEMA24 23Bit Absolute CNC 3000RPM
It is made ( OEM ) from Leadshine
Rated Voltage (Vac): 200-230
Rated Power (w): 400
Rated Torque (N.m): 1.27
Peak Torque (N.m): 4.46
Rated Speed (rpm): 3000
Peak Speed (rpm): 6500
Rated Current (Amp): 3.2
Peak Current (Amp): 11.2
Torque Const (N.m/Amp): 0.4
Back EMF Const (V/krpm): 23.5
Resistance (Ω): 2.64
Inductance (mH): 7.9
Inertia (kg*m^2*10^-4): 0.56
Poles: 10
Encoder type: 23bit absolute
Protection level: IP65
Manuals & Downloads:
ELM0400LH60F-SS motor drawing (324 downloads)
ELP AC Servo Driver User Manual (623 downloads)
*One Year Warranty*
