3-Axis DSP Based Digital Stepper Driver Max 60 VDC/6.0A, MX3660

Product in stock

Price

from $109.95

Loading Updating cart...

3-Axis DSP Based Digital Stepper Driver Max 60 VDC/6.0A, MX3660

Product Description

MX3660 - 3-Axis DSP Based Digital Stepper Driver Max 60 VDC / 6.0A

For adding USB or Ethernet connections to your computer, please add UC100 or ESS board to your cart from drop down box.

If you need USB Connection UC100 for Your New Computer, use UC100:

6 Axis USB MOTION CONTROLLER for Mach3, Mach4 UC100, or UCCNC (USB UC100)

If you need Ethernet Connection for Your New Computer, use ESS board:

Ethernet SmoothStepper Motion Control Board for Mach3 and Mach4, 6 Axis (With Cables)

Features:

Adopting latest DSP control technology and advanced stepper control algorithm

complete control for 3 axes. Each axis can have its own configurations

Step & direction control

20-60 VDC Supply Voltage

Output Current from 1.45 to 6.0A per axis

8 micro step settings: 1, 1/2, 1/4, 1/8, 1/10, 1/16, 1/32, 1/64

8 output current settings: 1.45, 2.08, 2.72, 3.37, 4.05, 4.72, 5.35, 6.0 A

Built-in breakout board 5 digital inputs, 4 general outputs, & one 0-10 VDC analog output

DIP switches for micro step and output current configurations

Anti resonance for low and middle speed

Excellent high speed performance

Extra low motor heating & noise; smooth movement

Able to drive NEMA 17, 23, 24, and 34 stepper motors

Built-in breakout board with DB25 connector and IO's for easy setup with many CNC

Control systems such as Mach3 and EMC

Easy to install and simple to implement

Automatic idle current reduction to 50%

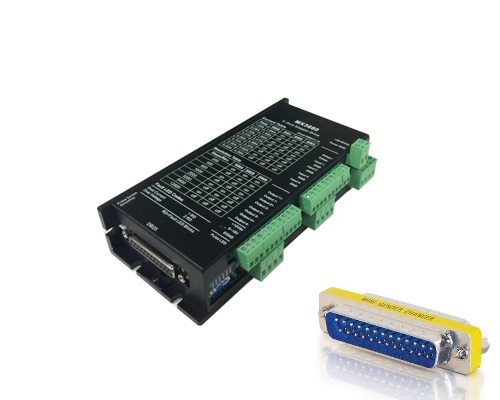

DB25 MALE TO DB25 MALE M/M Mini Gender Changer CouplerĀ  is included

Wiring:

MX3660 Wiring Diagram (207 downloads)

Manual:

MX3660 file (160 downloads)

Mach3 Setup for VFD Download:

MX3660 Spindle Wiring Diagram (166 downloads)

Mach3 Setup :

Mach3setup (1934 downloads)
