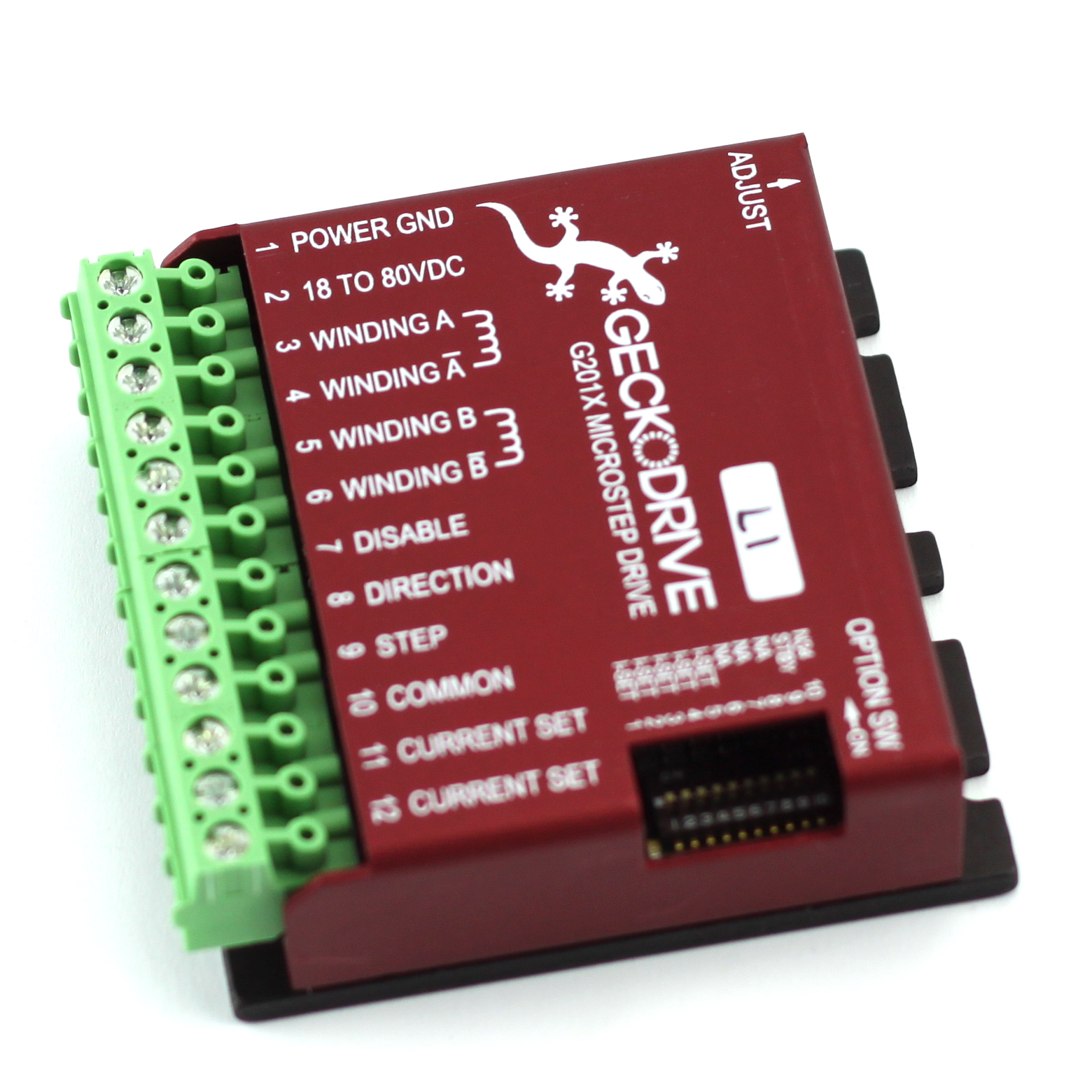

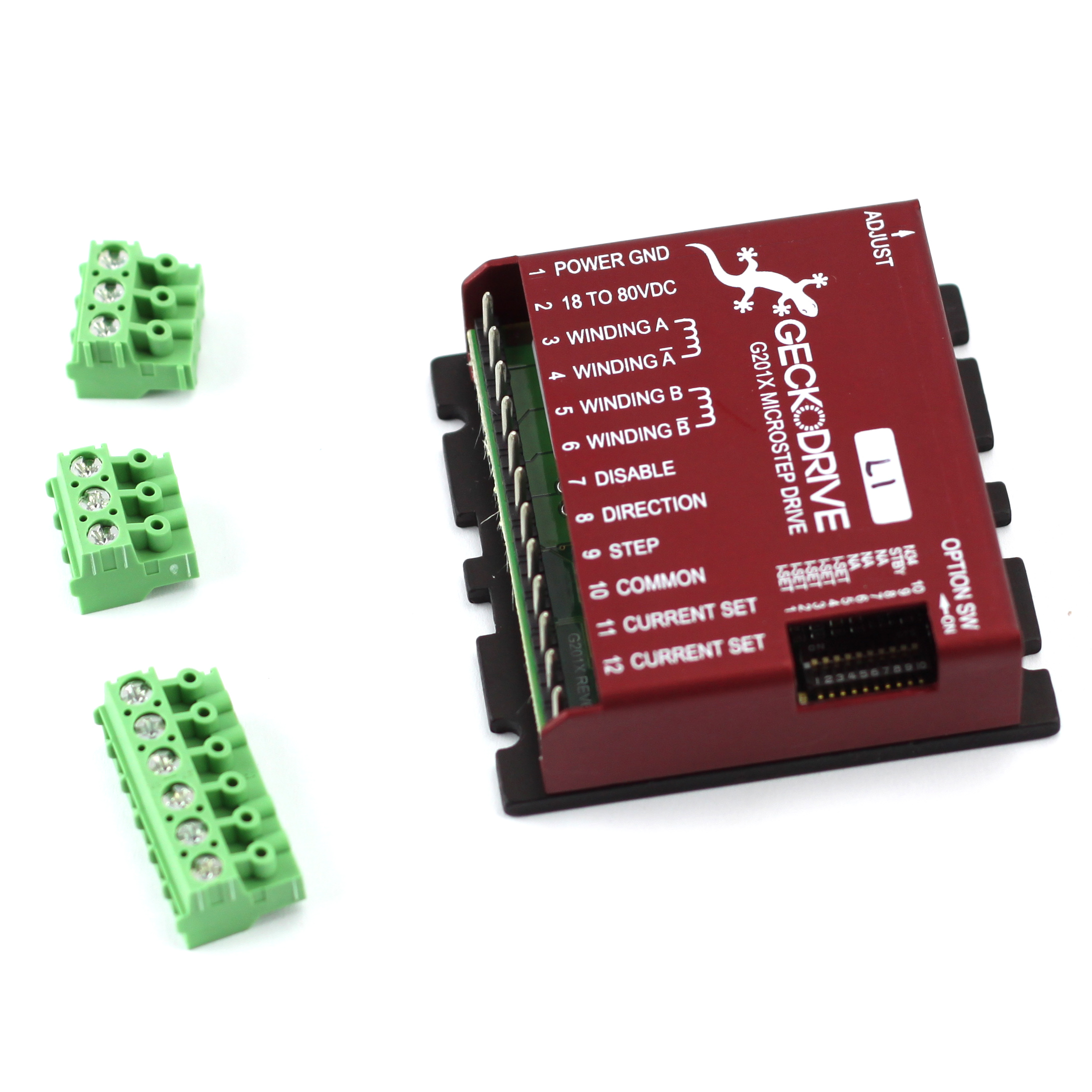

Geckodrive G201X 80V/7A Stepper Motor Driver

Product in stock

The G201X is the newest stepper drive from Geckodrive and is a drop-in replacement for the G201. It is built around our already proven CPLD design similar to the G203V and the G320X. The G201X adds many new features and is an excellent successor to the original G201.

Price

$113.00

Loading Updating cart...

Geckodrive G201X 80V/7A Stepper Motor Driver

Product Description

The G201X is the newest stepper drive from Geckodrive and is a drop-in replacement for the G201. It is built around our already proven CPLD design similar to the G203V and the G320X. The G201X adds many new features and is an excellent successor to the original G201.

Mid-band resonance damping
Silent 20kHz PWM switching
7A 80VDC power rating
10 microstep fixed resolution
Optoisolated step / direction
No low-speed vibration
STEP and DIRECTION is +3.3VDC and +5VDC compatible at 2.5mA
Recirculate mode during STANDBY greatly reduces motor heating
No external 470uF capacitor is required
Power-on RESET
DIRECTION is clocked in on the active step pulse edge
No internal jumpers
No current set resistor required
Morphs to full step at higher speeds to maximize motor torque
All settings done using a 10 position DIP switch
Universal step and direction COMMON
